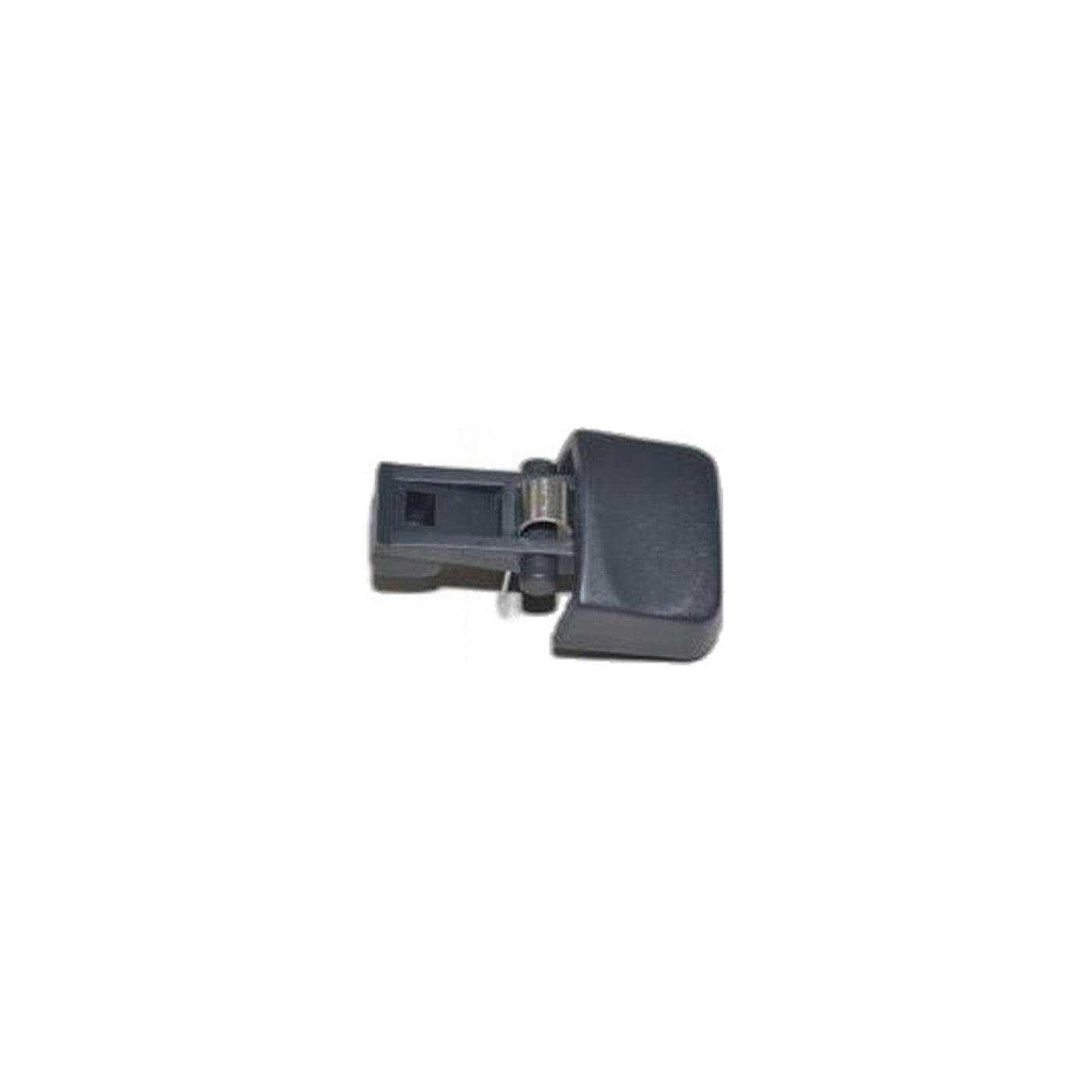

SEBO Swivel Neck Release Button with Leaf Spring — Gray Black

Press the neck release and get nothing back — no click, no spring, no release — and the flat spring behind the button has almost certainly cracked. Part 1737GS pairs the gray black button with a fresh leaf spring, so the mechanism is rebuilt rather than patched.

The button lives in the swivel neck, the pivoting joint where a power head or floor tool locks onto the machine. Pushing it flexes the leaf spring and withdraws the locking tab; letting go lets the spring drive the tab back into its keeper. Once that spring loses its tension or breaks, the fault shows up in one of two ways. Either the button sinks in and stays down, so the head will not release without a fight, or there is no resistance under the thumb at all and the joint no longer locks, which is felt as a neck that rocks and wanders while the machine is steered. Packed hair and grit in the button recess mimic both symptoms, so it is worth clearing the recess and trying again before condemning the part.

SEBO draws it at position 117 on both the DART and the FELIX sheets, described on the FELIX drawing as the gray black release button. Button and spring wear as a pair, which is why supplying one without the other would leave half the repair undone.

• Fits machines: SEBO FELIX Premium, FELIX 2 Premium, DART, AIRBELT D4 PREMIUM, AIRBELT E3 Premium, AIRBELT K3 PREMIUM and C3.1
• Fits power heads: ET-1 Power Heads (with switch), ET-1 Power Heads (without switch), ET-2 Power Heads (with switch), ET-2 Power Heads (without switch) and ET-C Power Heads
• Also fits: the DISCO Floor Polisher
• Colour: gray black
• Supplied as: button plus leaf spring
• Diagram position: 117 on the DART and FELIX drawings
• Part number: 1737GS — order 1737HG for the light gray finish
• Related part: gray black release button cap 1738GS for ET-C power heads

Genuine SEBO through an authorized dealership, typically shipping in 2–5 business days. Clear hair and grit from the recess first, seat the new spring squarely in its channel, then work the release half a dozen times and confirm the neck locks solidly before the machine goes back to work.
