SEBO Right-Hand Swivel Neck...
$10.00
Product details

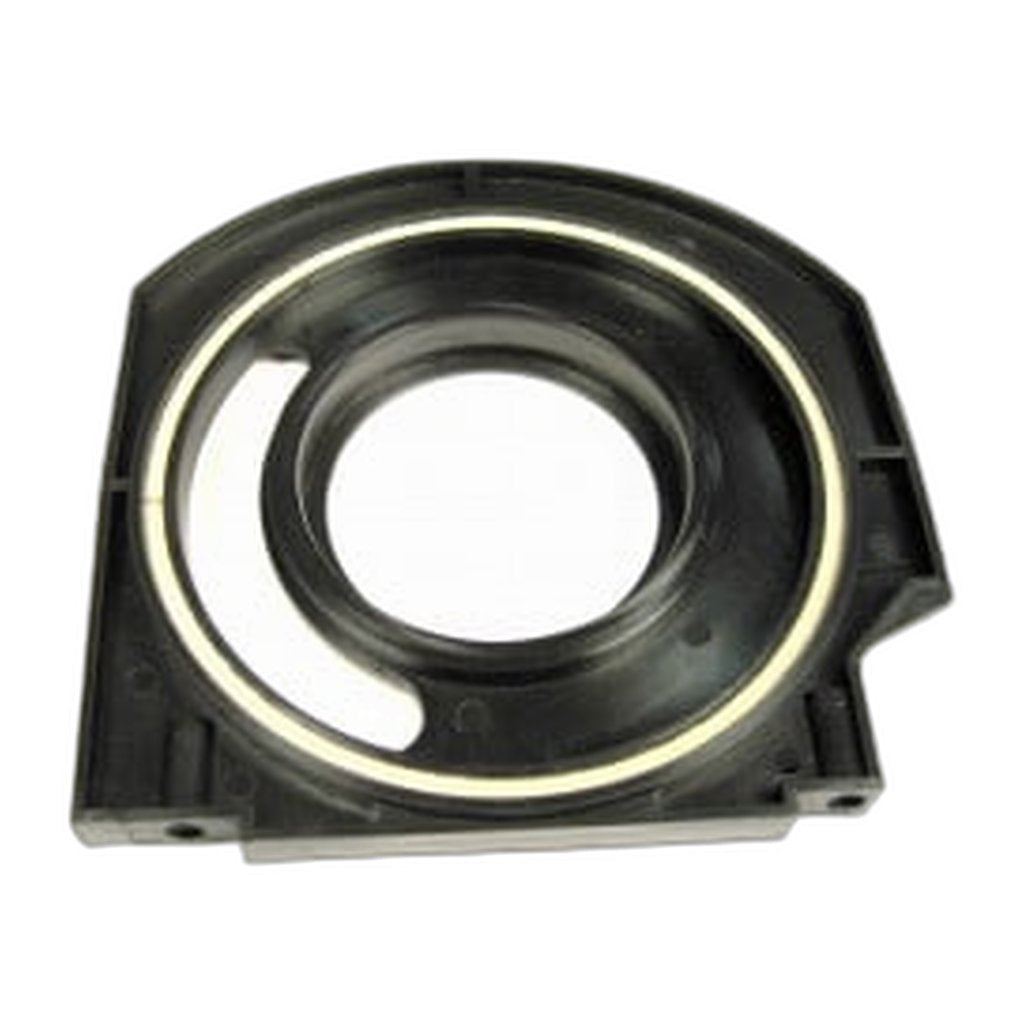

Check the chassis before ordering this one. Part 5178 is the two-screw right-hand swivel neck support built for the older 5320UL base, as fitted to AUTOMATIC X1, X2, X4, X4 Boost and X5 machines of that generation. Both mounting screws are supplied with it, and SEBO shows the support at position 109 on the AUTOMATIC X4/X5 exploded diagram, with the matching left-hand support listed separately at position 110.
Supports on this side normally give way at the screw bosses, where the plastic has been clamped, released and clamped again through past repairs. Once a boss splits, the neck sits proud on that side, the steering turns vague, and the wiring routed through the joint starts taking strain it was never meant to carry. Left long enough, what began as a cracked bracket becomes an intermittent electrical fault as well.
- Part number: 5178
- Side: right hand
- Chassis: old-style 5320UL base only
- Supplied with: two mounting screws
- Diagram position: 109 on the AUTOMATIC X4/X5 parts breakdown
- Fits: AUTOMATIC X1, X2, X4, X4 Boost and X5 built on that chassis
- Related part number: 5175UL, the complete swivel neck assembly for the AUTOMATIC X1 and X2
The quickest way to confirm you have the right generation is to count the screws holding the existing support: this part is the two-screw pattern. Do not force the new screws home hard — the bosses are what failed last time, and fresh plastic splits just as readily under a screwdriver leaned on too hard. Common searches include SEBO neck support 5178, right-side AUTOMATIC X4 neck bracket and 5320UL chassis support.
Genuine SEBO part from an authorized dealer; ships in 2-5 business days.
