Turbo Cat Right-Hand Support - T-210

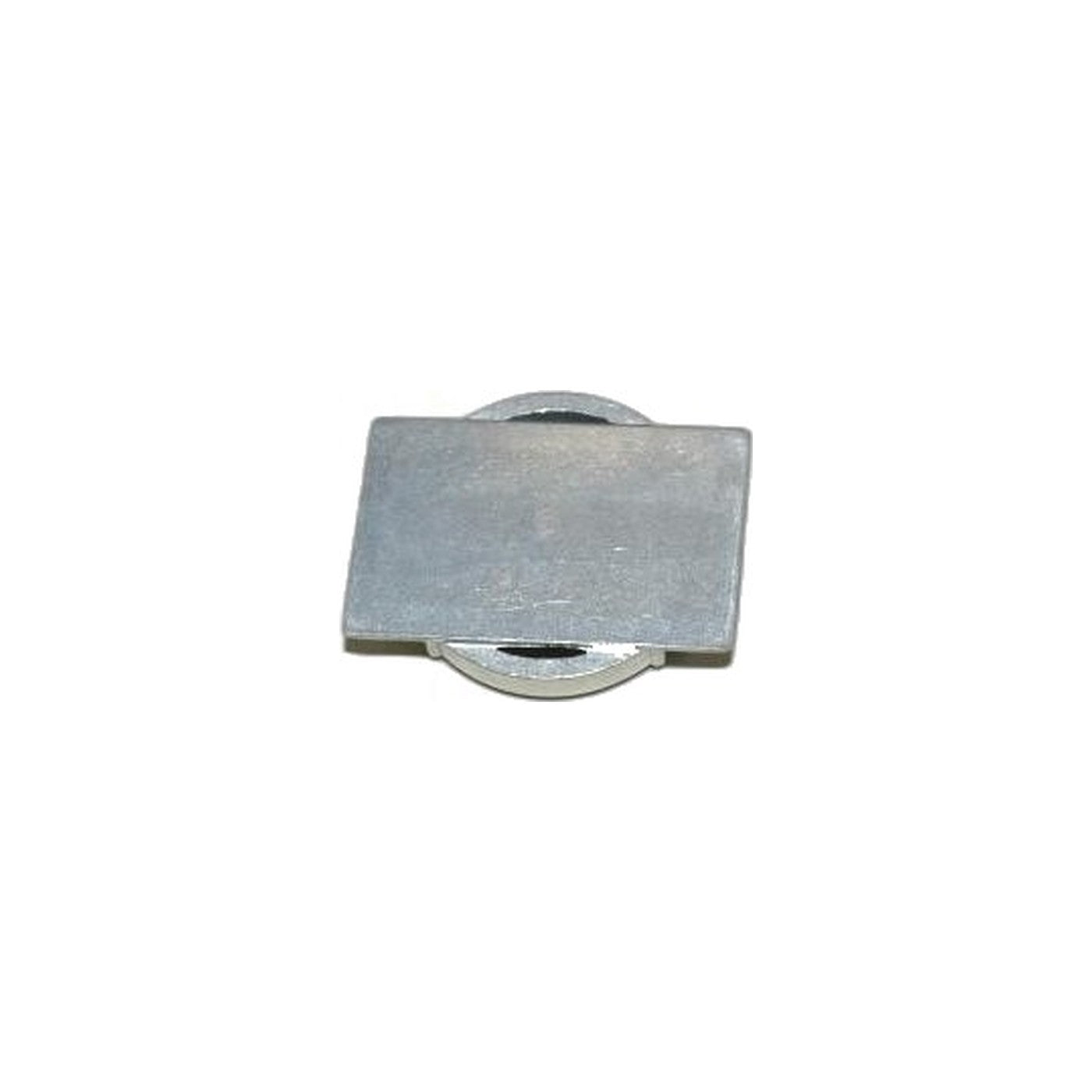

Part 7236 is the right-hand support for the Turbo Cat T-210 air-driven power nozzle. It is one of the two end supports that hold the brush roll shaft in place inside the nozzle housing, positioned on the right side of the unit as you face the front.

Fits the Turbo Cat T-210. A support wears at the point where the shaft rides against it, and once that surface grooves or the mounting point cracks, the brush roll can sit off center or wobble as it spins. That shows up as uneven bristle contact across the width of the nozzle, or a rattle from the housing that was not there before.

Because this support carries the shaft on one side only, check the left-hand support and the shaft itself at the same time. A support failing from age or impact often means the opposite side is close behind it, and replacing one while the other is still worn just moves the problem rather than fixing it. With the nozzle open, spin the brush roll by hand and watch both ends for play or binding before you decide which parts to order, since a support that looks intact can still have worn enough to let the shaft rock.

• Part: 7236, right-hand support
• Fits: Turbo Cat T-210
• Function: holds the brush roll shaft in place on the right side of the nozzle housing
• Check alongside: the left-hand support and the agitator shaft for matching wear
