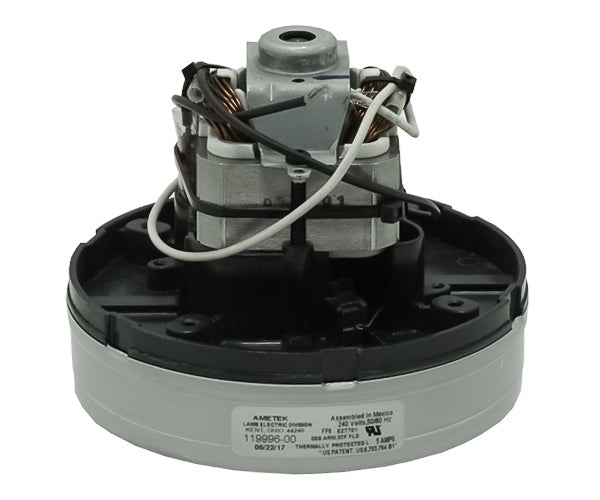

119996-00 Lamb Vacuum Motor (240 volt)

Our brand new (not rebuilt) Lamb 119996-00 Ametek motor is used in some central vacuum brands and models. 119996-00 motor is a Lamb Ametek original motor.

Specifications:

• Fan Stages - 1
• Bottom Diameter - 5.7"
• Voltage - 240
• Height - 5"
• Hertz - 60
• Waterlift - 111.7"
• CFM - 120.5
• AirWatts - 461
• Amps - 5.5

What to note: This 119996-00 vacuum motor may say 9996 or 11-9996. Includes a wire set with spades to connect to motor. We recommend splicing the other end to old wire using wire nuts.

What motors it replaces: 119996-00

When to replace: The signs that a 119996-00 Lamb motor needs to be replaced include: mini breaker popping, electrical smell, excessive blue sparks seen from motor top, you only hear a click, motor shuts down on its own but works later, or its life of 900-1,200 hours has been used up. (If you don't hear a click, then your relay most likely needs to be replaced and your motor may be fine). Five percent of the time, the mini breaker will go bad as well as the motor. If this happens, replace the motor and then evaluate the mini breaker.

How to replace: It is not difficult to replace the 119996-00 Ametek motor. There are three to four screw brackets and a couple of wires. All of our customers are amazed at how easy it is. NOTE: There is no core trade-in. Used motors are thrown away or taken to a metal recycling center. Click here to read and print out our step-by-step motor replacement instructions. Note that if the unit bolts into metal brackets, then the ground wire can be snipped. If plastic, then attach the ground wire to the ground from the power cord or anywhere to metal on the unit.

Replacing motor brushes: The lamb 119996-00 vacuum motor has carbon motor brushes that can be replaced. This should be done before a motor is "on its last legs." Read more about changing the motor brush on the detailed motor brush how-to page.
