SEBO Printed Bag Compartmen...
$24.00
Product details

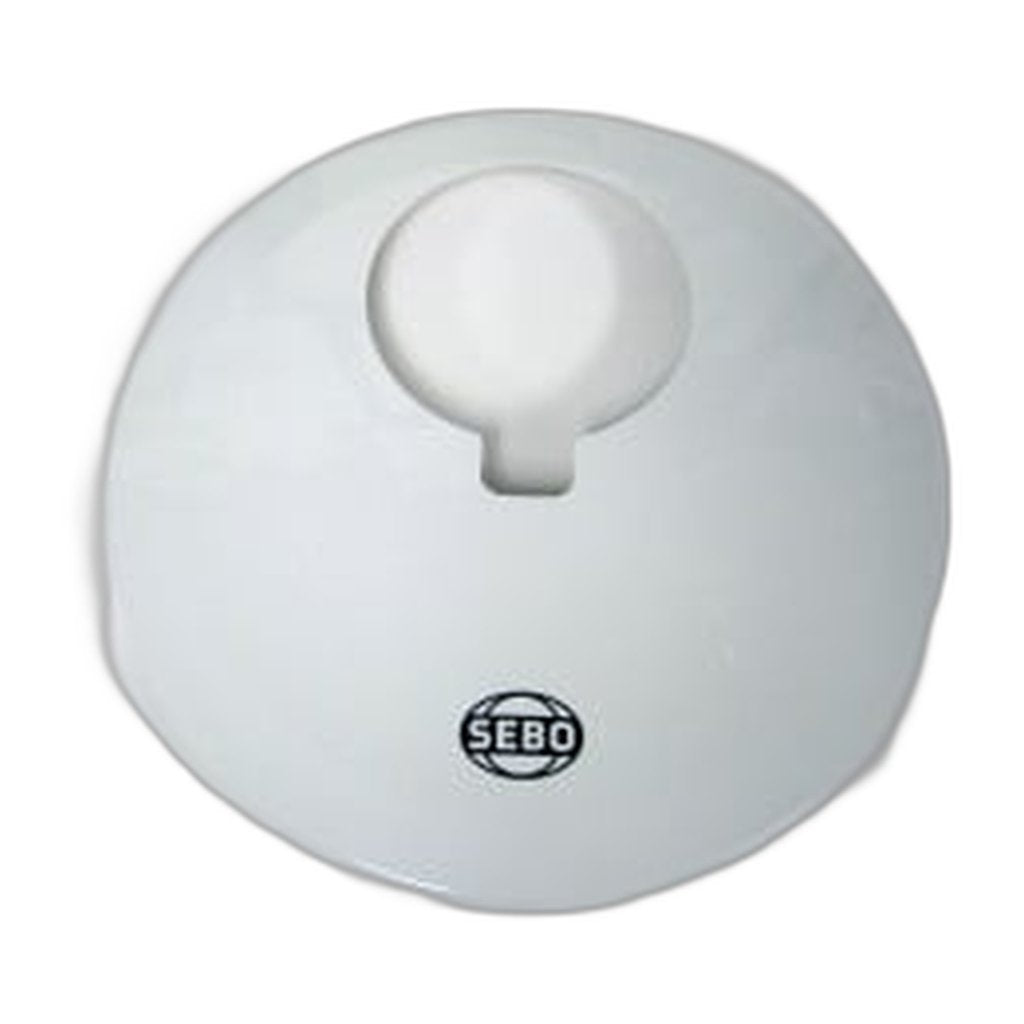

There are two white bag covers in this range and they do not swap. 8005WEA0 is the one built for the AIRBELT D1 Turbo, so check the model badge first and the printing, the latch and the mountings will all line up.
The panel shuts over the dust bag chamber and wears the graphics applied at the factory. White shows every scuff a canister collects being towed through a house, and the latch is where cracks usually begin once the cover has been opened for enough bag changes. A cover that has begun to spring open on its own, or one that sits proud at a corner, is no longer pulling the compartment down onto its seal, and that matters more than the marks on the surface.
SEBO lists the hardware behind the cover on its own numbers, which is handy when the latch rather than the panel has failed: the release with axle and spring is 8114ER, the seal it closes against is 8130, the gray black insert is 8129GS, and the bag indicator with spring is 7020ER, set by the adjuster 8127ER. The complete inner section for this model is 8051AM1. The white shells it sits between are the bottom casing 8001WEER and the top casing 8003WEER, both of which SEBO lists for the D1 Turbo.
- Machine fitment: SEBO AIRBELT D1 Turbo canister
- White, factory printed
- Outer bag compartment cover only
- Not interchangeable with 8005WEER, the white cover for the other canister in this range
- Related numbers: release 8114ER, seal 8130, insert 8129GS, inside cover 8051AM1
- Genuine SEBO molding, ordered as 8005WEA0
Filter bags for the compartment are 8120AM, a box of eight with caps. Authorized SEBO dealer; dispatch in 2-5 business days.
If the panel itself is undamaged and the trouble is at the pivot, the cover axle set 6750ER and the hinge pair 8052ER are the parts to order rather than a whole new cover. Searches for an AIRBELT D1 bag door, a SEBO white bag cover or a D1 dust compartment lid all lead to 8005WEA0.
