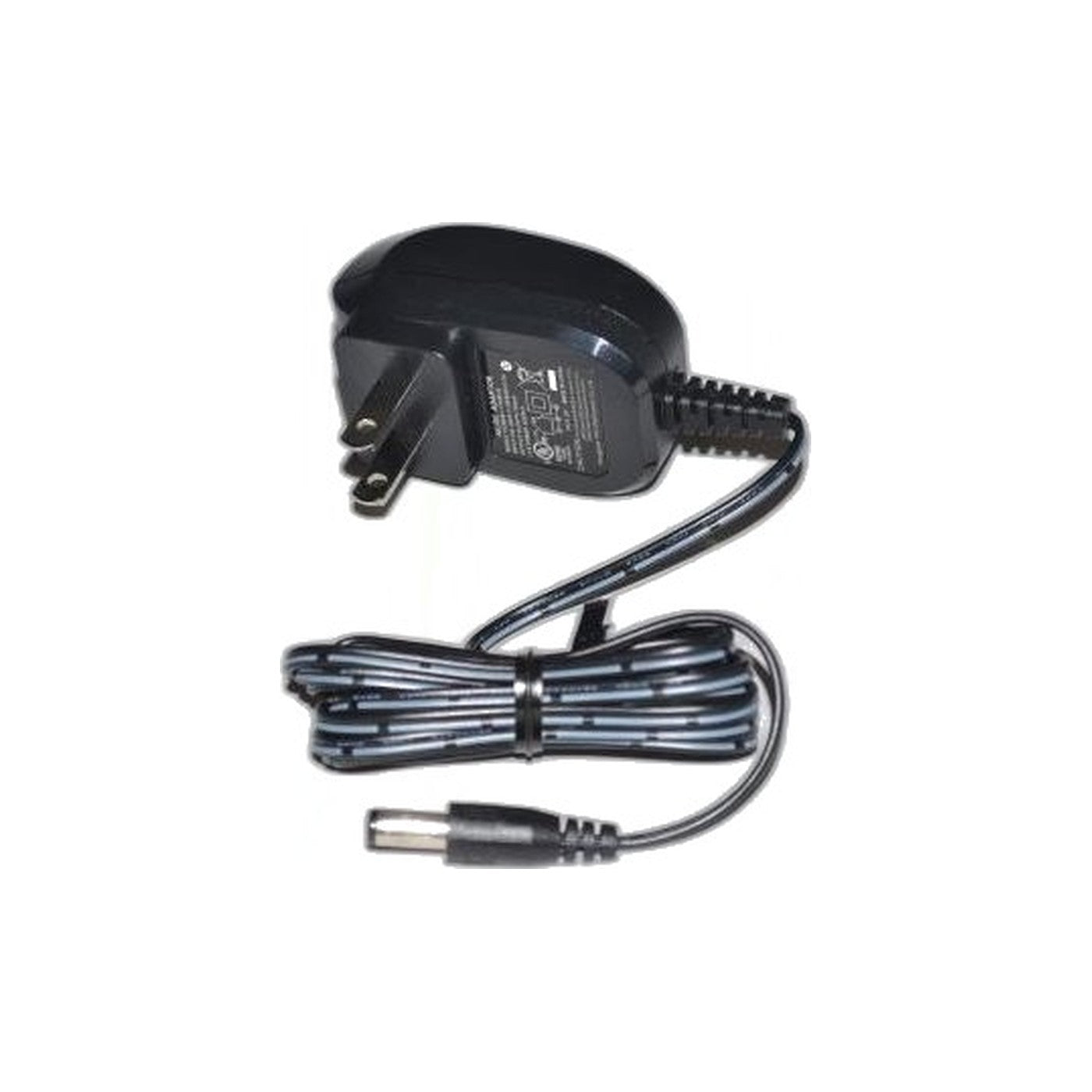

Bissell Charger - Lift-Off Floors & More Cordless Stick Vacuum

Bissell Lift-Off Floors & More line of cordless stick vacuums uses part 1600689 as its AC charging base, the wall unit that tops off the removable battery pack rather than something the machine runs from directly. A cordless vacuum splits into two separate systems that can each fail on their own, the charger and the battery, so when a machine will not hold a charge the two need to be tested apart rather than assumed to share one cause.

On this class of stick vacuum, the charger is often the first thing to give out, well ahead of the battery it feeds. The weak point is where the low-voltage cord meets the plug body, a joint that flexes every time the unit gets coiled up for storage, and after a couple hundred of those cycles the strands inside start to break. Watch for an indicator light that stays dark when the charger is plugged in, a battery gauge that climbs partway and then stalls out, or a sudden drop in run time on a pack too new to explain the loss on its own. Borrowing a battery that is known to charge fine on another machine, or testing this charger against one, isolates the fault in a few minutes and is far cheaper than replacing a battery that was never actually the problem.

The charging base covers this Lift-Off Floors & More lineup built around the 53Y8 platform, specifically the 53Y82 and 53Y8C, extends to the Pet variants sold under the 53Y81 and 53Y83 designations, and separately serves the 75Q3-series machines.

Plug the charger straight into a wall outlet rather than a power strip that shares a switch with other equipment, since a charge cycle that gets cut off partway can leave the gauge reading full when the pack underneath is only partly topped up.

• Part: 1600689
• Function: AC charger for the removable battery pack
• Fits: Bissell Lift-Off Floors & More 53Y8 series (53Y82, 53Y8C), Pet variant 53Y81/53Y83, 75Q3 series
• Replace when: the charge light never comes on or the battery stalls at a partial charge
