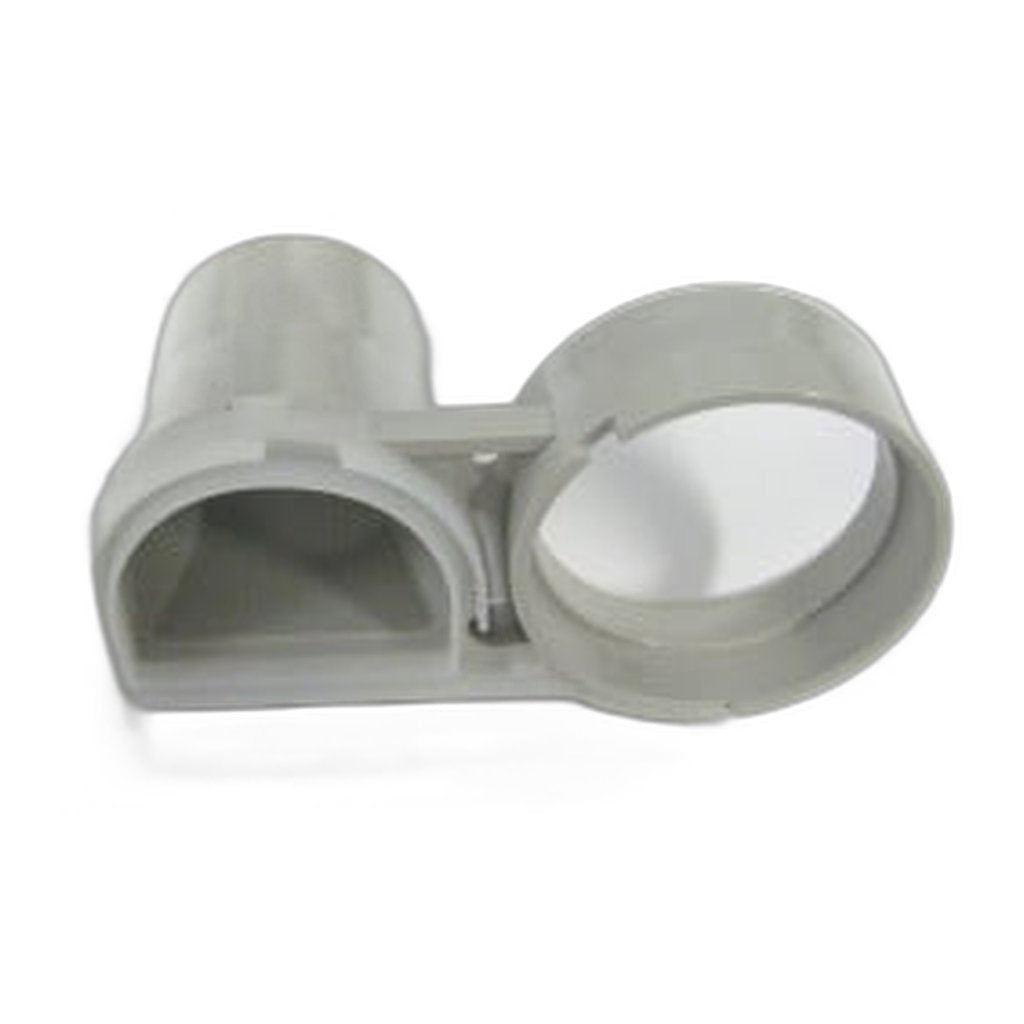

SEBO Connection Tube for 300 and 350 MECHANICAL - Light Gray

Position 9 in the SEBO 300/350 Mechanical diagram is the connection tube, ordered as part 50105HG in light gray. It forms one link in the sealed air path of the SEBO 300 MECHANICAL and 350 MECHANICAL, joining one section of that path to the next so the suction the motor generates arrives at the floor head intact.

Anywhere the air path is joined is somewhere it can leak. A tube split at a bend, or hardened by age until it no longer grips what it mates to, bleeds off pickup before any of it reaches the carpet, and the loss is easy to blame on a full bag or a tired filter instead. The clue is a machine that sounds as though it is working normally, draws normal current, and still leaves fibers behind on a second pass. Anything short of a clean, unsplit tube with tight joints at both ends is worth replacing while the machine is open.

• SEBO part number: 50105HG
• Parts diagram: SEBO 300/350 Mechanical, position 9
• Fits: SEBO 300 MECHANICAL and SEBO 350 MECHANICAL
• Color: light gray
• Job: carries suction between sections of the internal air path
• Change it when: the tube is split, hardened, or loose at either joint

If suction is the complaint rather than a visible split, work through the whole path before ordering: the bag and its seat in bag housing 50100SE, bag holder 50125ER, the pre-motor filter behind safety catch 50205ER, and the on-board cleaning wand 50165HG at the other end of the hose. Filter bags are stocked as 5093AM, pre-motor filters as 5036AM, anti-odor 5425AM or HEPA 5812ER, and exhaust inserts as 50169ER and 50170ER.

Genuine SEBO 300 and 350 Mechanical connection tube, supplied by an authorized dealer. Ships in 2-5 business days.
