Dirt Devil Handle Fork - Ro...
$63.99
Product details

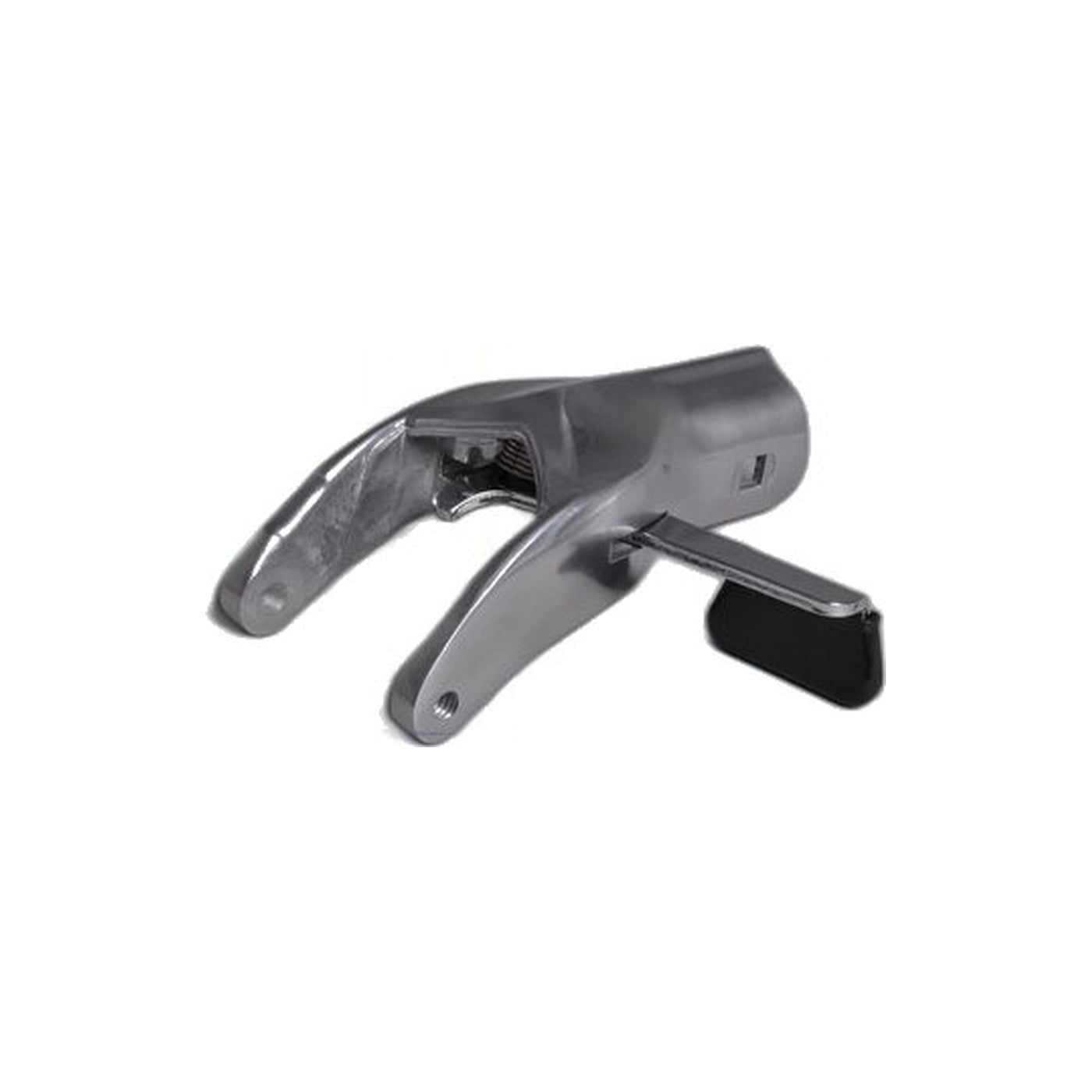

Reclining the handle on a Royal metal upright, or locking it upright for storage, depends on a pivot buried inside the handle fork, and this fork, part 2028590000, is that connection point on machines including the Royal 089000.
Once the fork cracks or the pivot hole inside it wears oval instead of round, that connection loosens. The handle starts to move side to side while the machine is being pushed, and the lock that is supposed to hold it upright for storage no longer catches reliably. Because the fork also governs how the handle angle changes as it reclines toward the floor, a worn one can make the machine feel stiff to tip back even though the recline mechanism itself is otherwise sound.
Play at this joint tends to get worse quickly once it starts, since the same slop that makes steering feel imprecise also lets the fork bang against its stops with every push, which accelerates the wear on whatever material is left holding the pivot together.
- Part: 2028590000 handle fork
- Fits: Royal 1018Z, 1025, 1028Z, 1030Z, 1038Z, 1058Z, 1059Z, CR5130Z, CR5158Z, RY8100, RY8200, RY8300, RY8400, RY8500, RY8600, UR38200, and 089000
- Function: handle pivot connection between upper handle and body
- Sign of wear: side-to-side play in the handle, or a lock that will not hold
Installation is a straight exchange of the old fork for the new one, reusing your machine's existing hardware. Match your model number carefully against the list above before ordering, since that list is the complete set of machines this fork is known to fit.
