SEBO Exhaust Filter Cover f...
$12.00
Product details

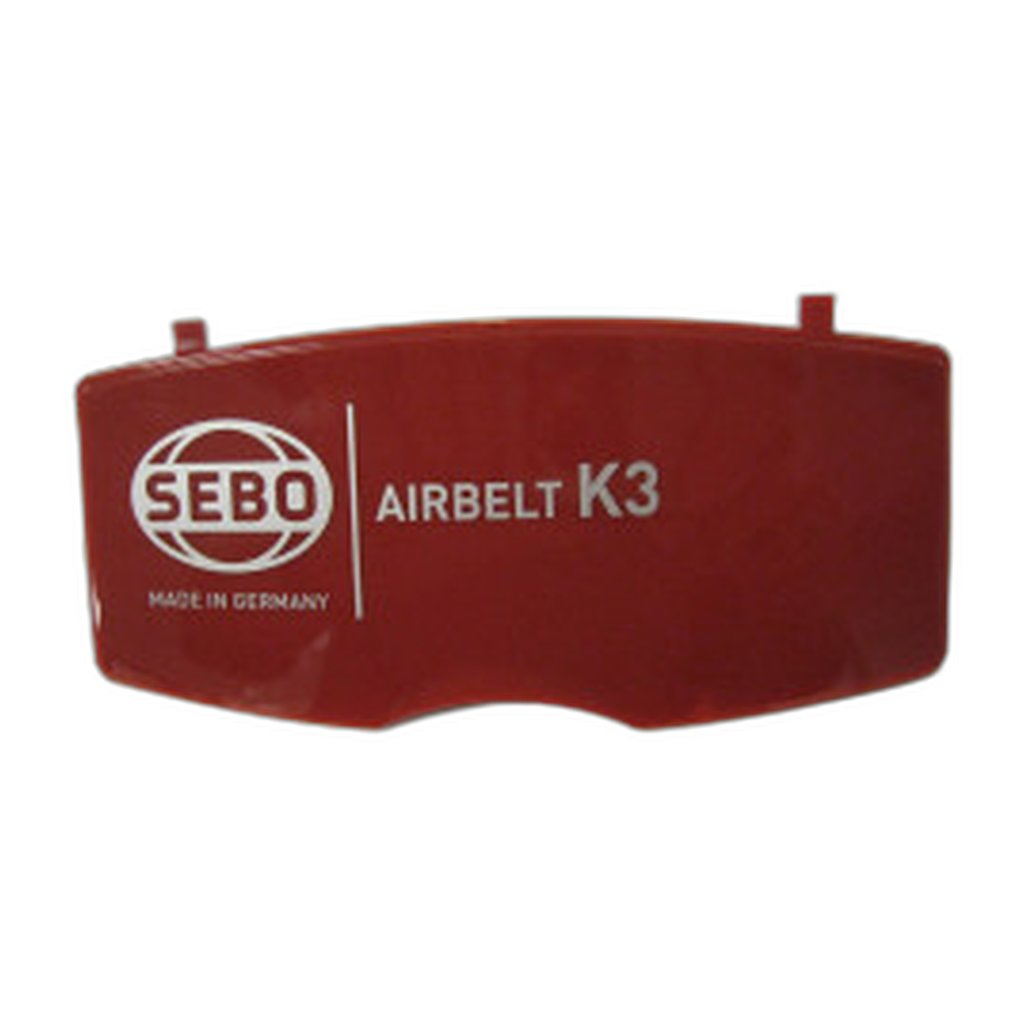

Read across SEBO's AIRBELT K exploded view and item 26 is this moulding: 6403DRER, finished in red with silver print, fitted to the AIRBELT K3 Premium. Air leaving the motor passes the exhaust filter and then this panel, making it the final component in the outgoing path.
Its neighbours on that sheet place it firmly in the outer-shell group rather than among the filtration internals. Item 24 is the top casing, 6680DR1 in red, which SEBO supplies together with the release clip and screw shown at item 25 as 6625ER — the catch that keeps upholstery nozzle 6627GS parked on the body. Item 27 is the on/off knob, 60666WE across the red, black and white K3 builds. Item 28 is casing clip 6086HG and item 29 the foam bumper 6623UL. Nothing in that group is threaded into this cover; it goes on and comes off by hand.
Clamping is the whole job. Properly seated, the panel keeps the filter square against its housing. Broken, it lets part of the exhaust take the short way round the edge of the media, and a canister with a fresh filter still deposits a fine film on nearby surfaces. Hold a suspect panel up to a window before deciding: hairline fractures near the hinge and a lug that has parted from the moulding are both easier to see backlit than in place on the machine.
Ordering by colour name alone is risky in this range, since red and dark cherry are separate numbers with separate prints. The silver print on this one is the quickest visual confirmation that you are looking at the right listing.
- Number — 6403DRER
- Finish — red, silver print
- Machine — SEBO AIRBELT K3 Premium
- Exploded view — item 26, AIRBELT K
- Supplied — panel only
- Colour-matched above it — 6680DR1 top casing, with 6625ER; knob 60666WE
- Media it holds — 6608ER; 6696AM as a set; bags 6629AM
Genuine SEBO panel, out the door in 2–5 business days.
