SEBO Gear Wheel 34 for the ...

$10.00

Product details

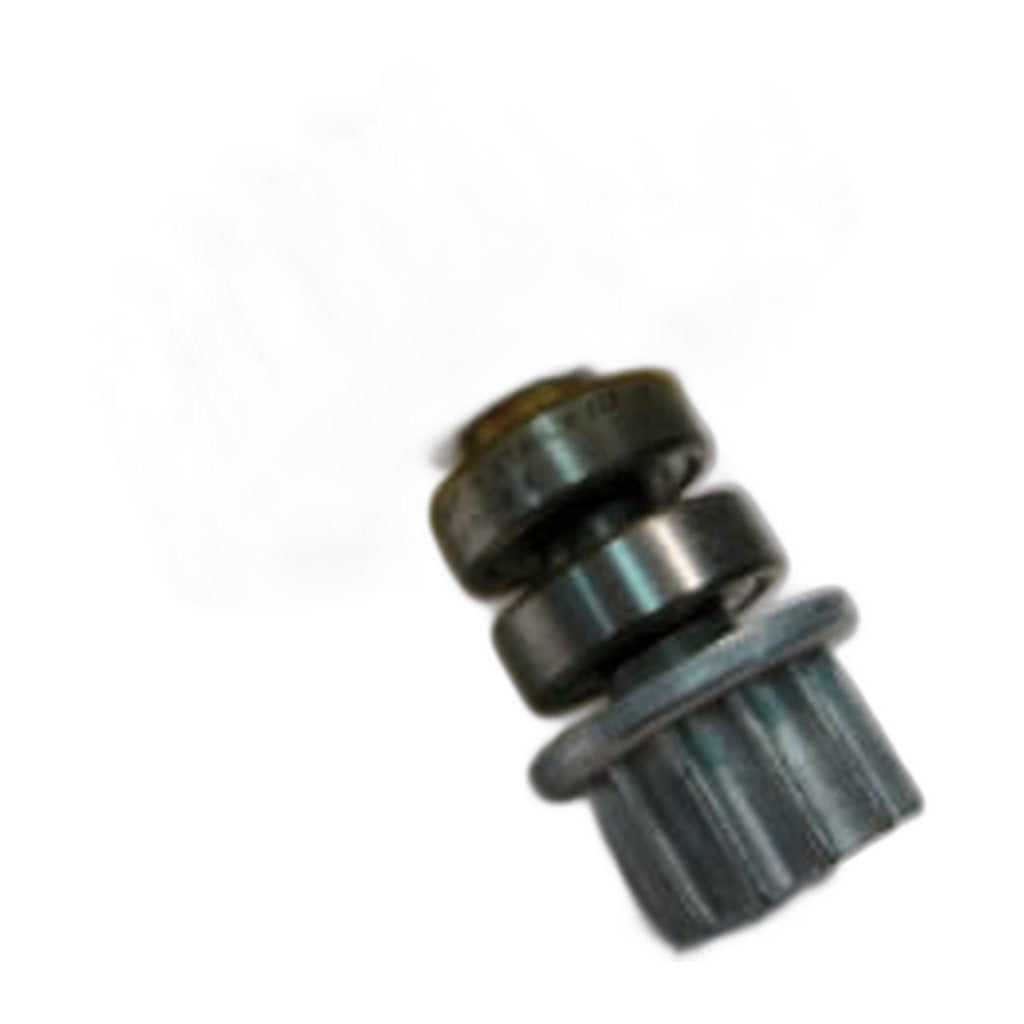

Gear Wheel 34 is a handed component, and this is the left one. SEBO's Duo diagram marks position 55 as the left-hand-thread gear wheel, so part 3022 backs off the opposite way to everything else on the bench. Turning it the familiar direction only tightens it further, and a gear that has been fought in the wrong direction rarely goes back into service.

Worn or chipped teeth here give the same symptoms as any other failing gear: a repeating knock timed to the gear rather than to the motor, drive that skips under load, and agitation that falls away on thicker pile while the machine sounds unchanged. Note that this number is the bare gear wheel rather than a complete stage, so inspect the shaft and the thread it rides on before reassembling; a shaft that has been chewed will make short work of a new gear.

  • Part number: 3022
  • SEBO designation: Gear Wheel 34, left hand
  • Thread: left hand
  • Diagram position: 55 on the SEBO Duo parts diagram
  • Fits: the SEBO Duo brush machine
  • Supplied: as a bare gear wheel
  • Related numbers: 3042 drive belt 5 mm at 54, 3036 spacer at 56, 3037 shaft LH thread at 57, 0222 ball bearing at 58, 3015 pulley LH thread at 59

The right-hand side is a different item again: SEBO supplies 3021 as a complete Gear Wheel 34 assembly at position 62. Everything in the left-hand group shares the same handedness, so the shaft at 57 and the pulley at 59 both unwind the same way as this gear. Searches for a SEBO Duo gear wheel, a left hand thread gear or part 3022 all point to this component. Genuine SEBO gear wheel supplied by an authorized dealer. Ships in 2-5 business days.
