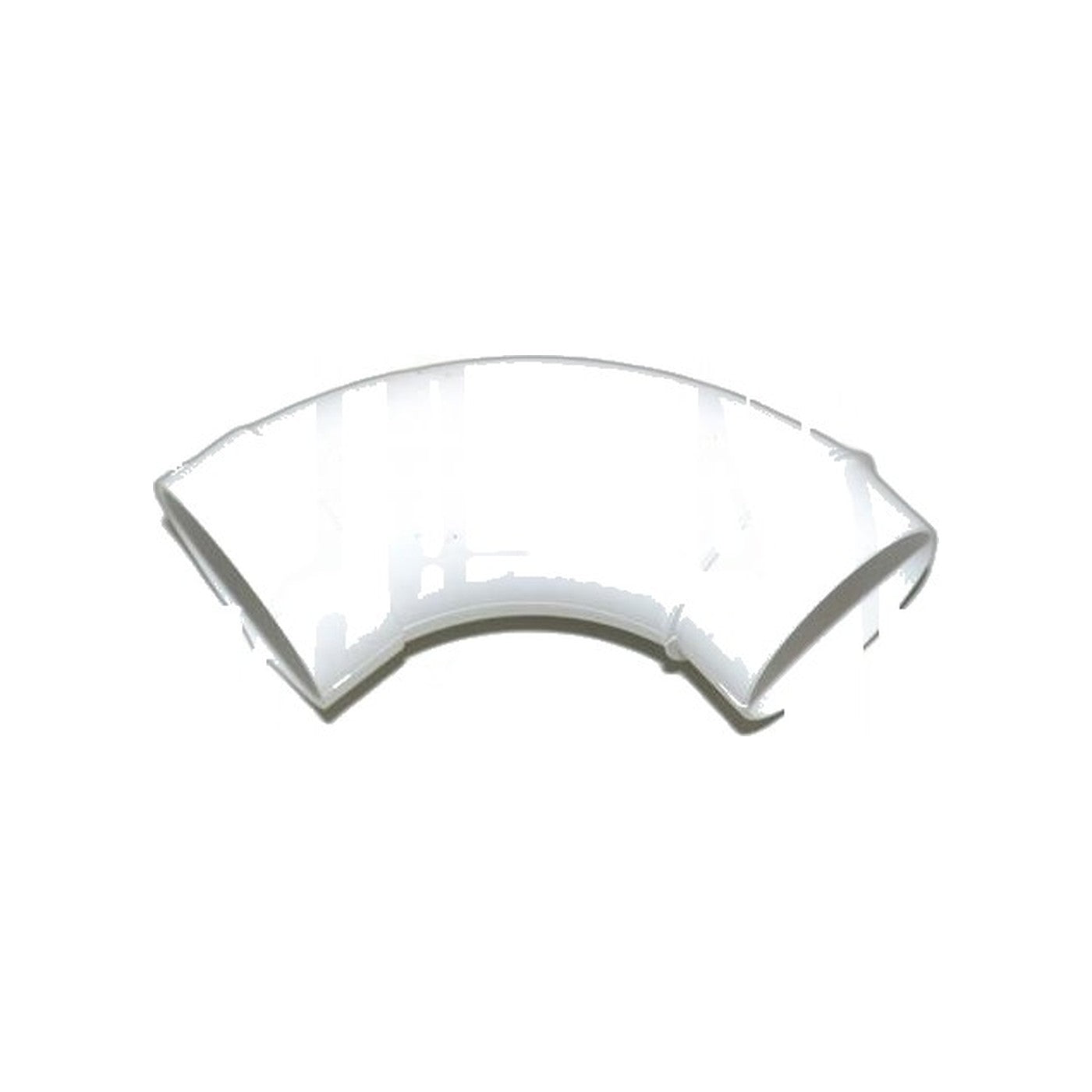

Hayden Vaculine 90-Degree Spigot Elbow

Part 765511W is a Vaculine spigot elbow from Hayden, built for a full 90-degree turn and listed for the Hayden 0642. It handles that turn wherever the pipe run needs one, most commonly right behind an inlet valve, at a floor plate, or at the point where the trunk line first leaves the power unit. One end of the fitting is a spigot shaped to seat inside standard central vacuum tubing without a socket joint on that side.

More suction gets lost at a bad joint than almost anywhere else in a built-in system. A fitting that never got fully cemented around its circumference, or one that split because the pipe end feeding into it was cut at an angle instead of square, pulls in outside air at that one point continuously. That single leak does not just weaken the nearest inlet; the power unit ends up drawing part of its airflow from the crack in the wall, which drags down performance at every inlet on the house.

A spigot-style elbow like this one is often chosen for the last turn before an inlet or for the connection right at the power unit, spots a technician may need to open again during a future filter or motor service. Fully cemented fittings on both sides are the right call for a joint meant to stay buried for good; the spigot side earns its keep specifically where future access matters.

This part fits the Hayden 0642. Chamfer the cut end of the pipe, dry-fit the joint before committing to cement, and run cement fully around the connection rather than dabbing it on one side. A joint hidden behind drywall has to hold on its own for years, so a friction fit alone is not enough there.

• Part: 765511W, Vaculine spigot elbow from Hayden, 90-degree bend
• Fits: Hayden 0642
• Construction: spigot end for direct tubing insertion, 90-degree bend
• Use: full right-angle turns at inlets, floor plates, or the power unit connection
