Kenmore

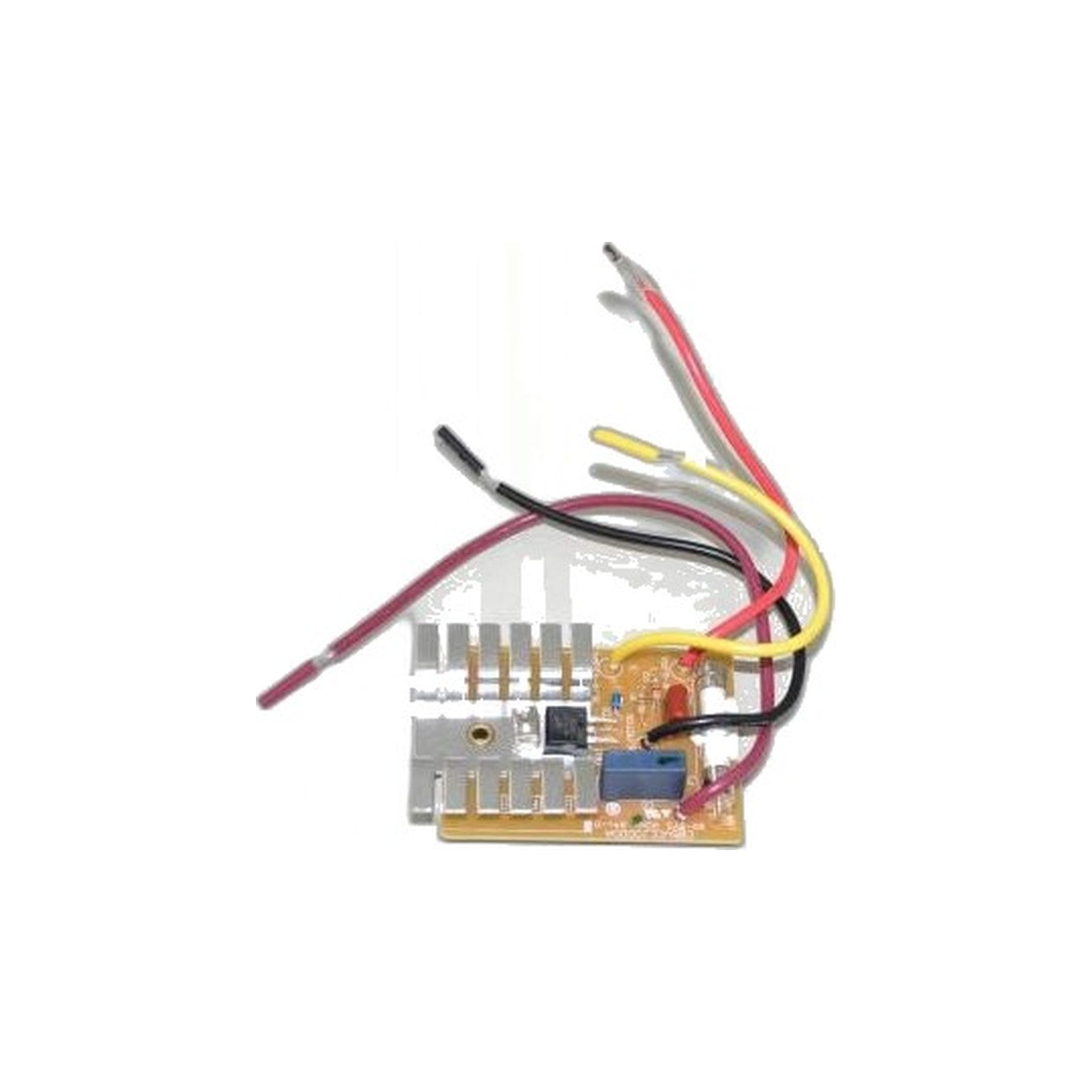

Kenmore BC3005 Circuit Board B Unit - New Style, 4-Wire

Kenmore BC3005 Circuit Board B Unit - New Style, 4-Wire

$35.99 USD
$35.99 USD
Sale Sold out
Shipping calculated at checkout.

591028105

149 in stock
Free Shipping On Orders $100+
Genuine Parts OEM Quality
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Kenmore BC3005 Circuit Boar...

$35.99

Product details

This replacement Kenmore circuit board (Part #591028105) is the new-style four-wire B unit board used in the Kenmore BC3005, and it also fits the Kenmore 8010. It is cataloged as part #47-8009-09. The board handles the vacuum's power switching and control signals.

When a control board fails, the vacuum may refuse to power up, cut out during use, or behave erratically as its circuits break down. Before condemning the board, it is worth checking that every wire plug is fully seated, since a loose connector can imitate a dead board. A sound replacement restores reliable on and off control.

  • Fits: Kenmore BC3005 and Kenmore 8010
  • Part: new-style 4-wire B unit circuit board, #591028105 (also 47-8009-09)
  • Function: manages power switching and control for the vacuum
  • Tip: confirm all plugs are seated before replacing the board

Disconnect power, transfer the connectors to the matching terminals, and verify your model before ordering. A sound board brings back dependable operation.
