Kirby

Kirby Fan Case Assembly - G5/AV2

Kirby Fan Case Assembly - G5/AV2

$78.99 USD
$78.99 USD
Sale Sold out
Shipping calculated at checkout.

119797S

Low stock: 10 left
Free Shipping On Orders $100+
Genuine Parts OEM Quality
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Fits the same machines

Kirby Fan Case Assembly - G...

$78.99

Product details

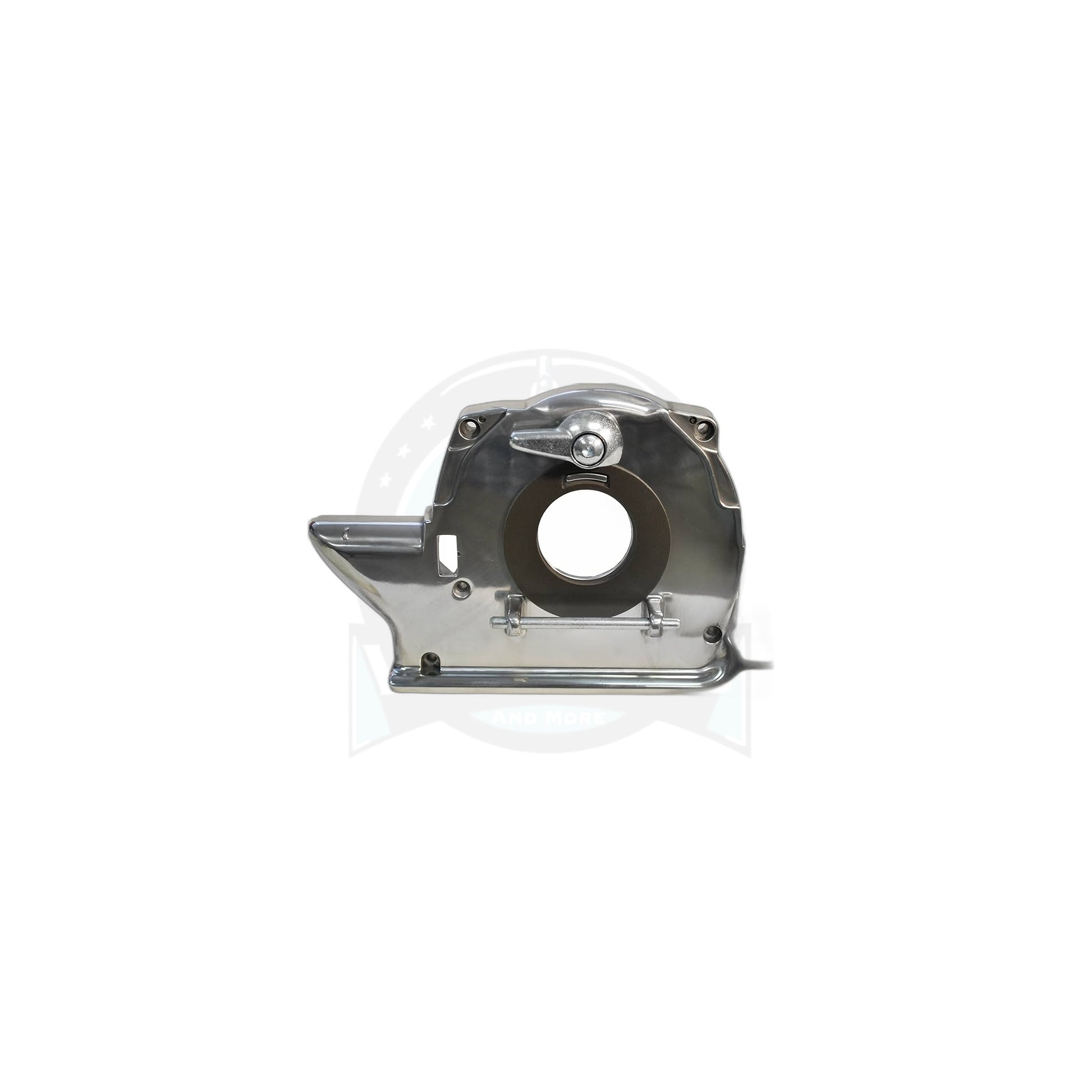

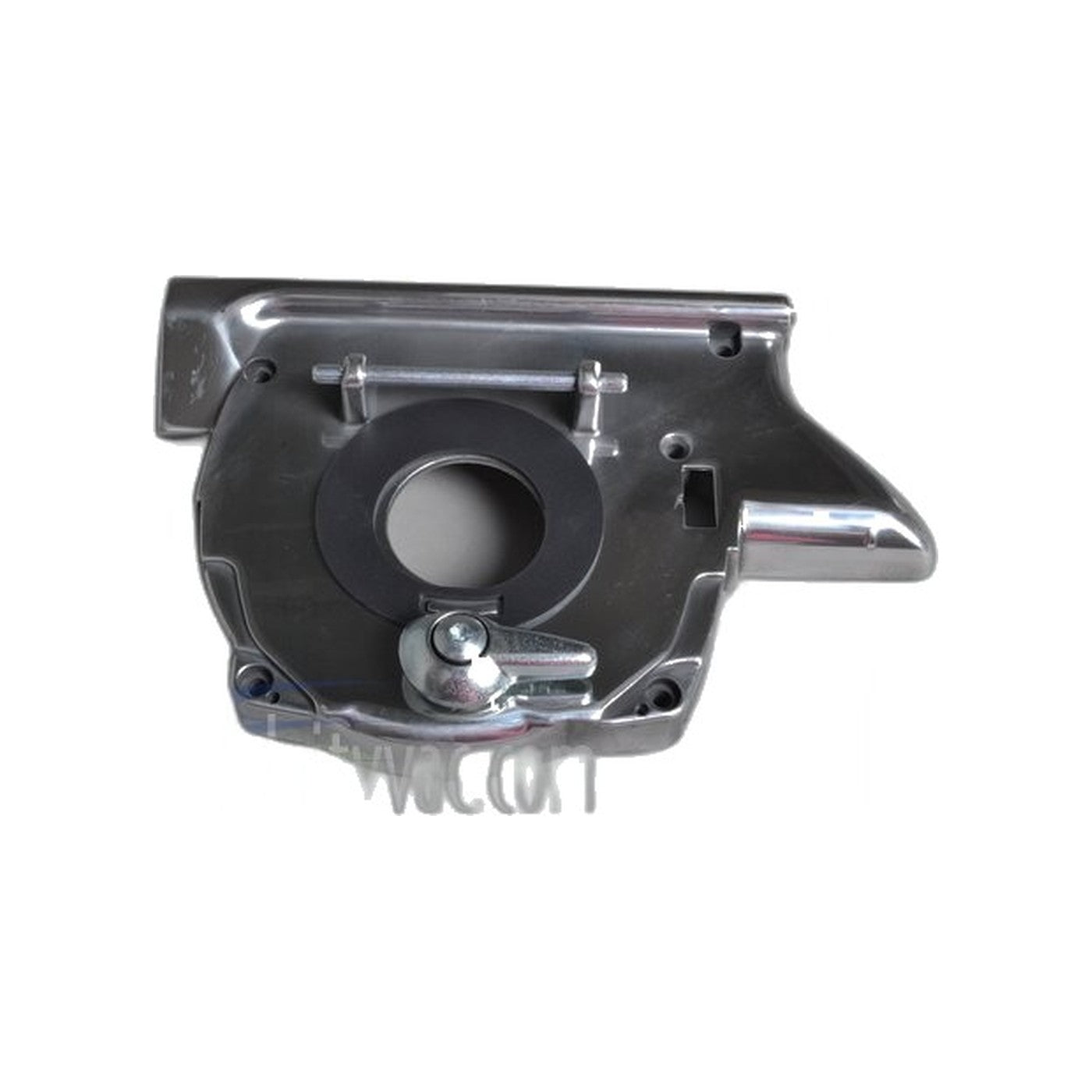

A sealed housing around the fan keeps the airflow path intact from a Kirby's nozzle all the way to the bag, and part 119797S is the complete replacement assembly, specified for a long run of machines: the G5, GSIX, Ultimate G, Diamond Edition, Sentria, Sentria II, and Avalir, Avalir 2, Avalir Platinum.

Because this chamber has to stay sealed, even a hairline crack in it costs suction directly. The motor can sound entirely normal, the fan itself might be undamaged, and the nozzle still will not lift dirt the way it should, since air is escaping before it ever reaches the bag. A fan blade letting go at full speed is the usual reason a case cracks in the first place, the fragment does real damage to the housing on its way through.

Buying the full assembly spares the trouble of tracking down the bare case and its individual fittings separately. Check the fan itself while the case is being swapped, whatever damaged one side has usually left evidence on the other, and confirm the exact model against the list above before ordering, since not every Kirby generation shares this same fan case.

  • Part: 119797S, fan case assembly
  • Fits: Kirby G5, GSIX, Ultimate G, Diamond Edition, Sentria, Sentria II, Avalir, Avalir 2, Avalir Platinum
  • Function: seals the airflow path between the fan and the bag
  • Sold as: complete assembly, not the bare case alone
