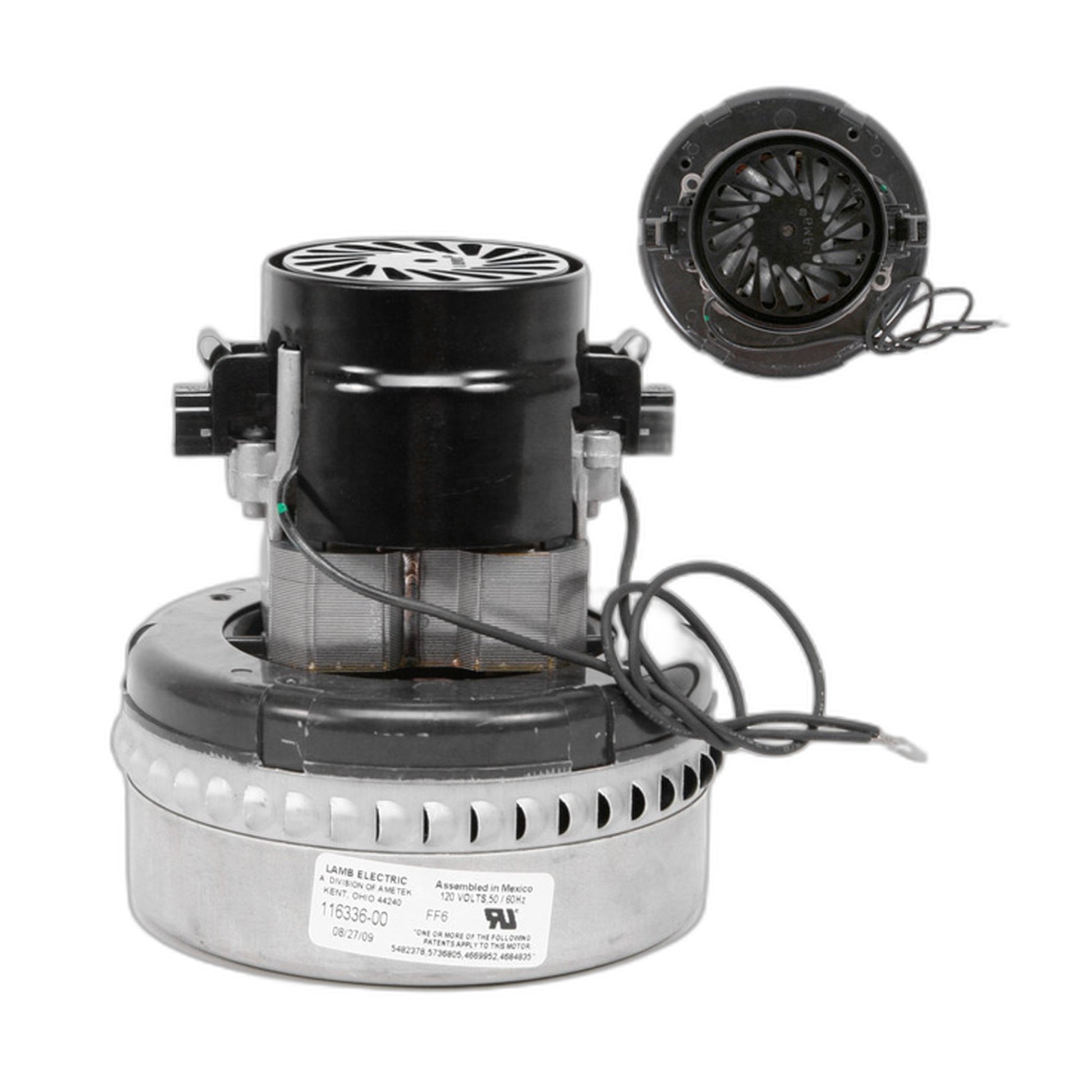

Lamb Ametek 116336 Central ...
$347.99
Product details
The 116336 is also cataloged as the 116336-01, and Lamb Ametek builds it as a replacement motor for central vacuum power units originally fitted with this part, sold here as part 205.
Ametek's own model database resolves the 116336-01 as a 5.7 inch frame, 120 volt, two-stage motor with peripheral output at a 900 watt power level, using brush kit 833326-58. Its working numbers are 8 amps, 274 air watts, 94 CFM and 84.3 inches of sealed suction. The published cross-reference also makes it the successor to seven earlier motors, 116757, 116212, 115477, 115757, 115407, 116758 and 115737, a wider supersession list than anything else in this range carries.
The part number is usually printed on a sticker on the motor's outer housing near the base. If that sticker has worn off, compare the mounting pattern and physical size against your unit's owner's manual or a parts diagram rather than judging by appearance. A failing motor here usually announces itself first with a breaker that goes on start-up, an electrical odor, sparking at the top of the housing, or the unit switching off and restarting for no obvious reason.
- Part: Lamb Ametek 116336, also cataloged as 116336-01, sold as part 205
- Frame: 5.7 inch, two stages, peripheral output, 900 watt level
- Draw: 8 amps, 110-120 volts
- Rating: 274 air watts, 94 CFM, 84.3 inch sealed suction
- Supersedes: 116757, 116212, 115477, 115757, 115407, 116758, 115737
- Brush kit: 833326-58
Verified against: Ametek model data for 116336-01
