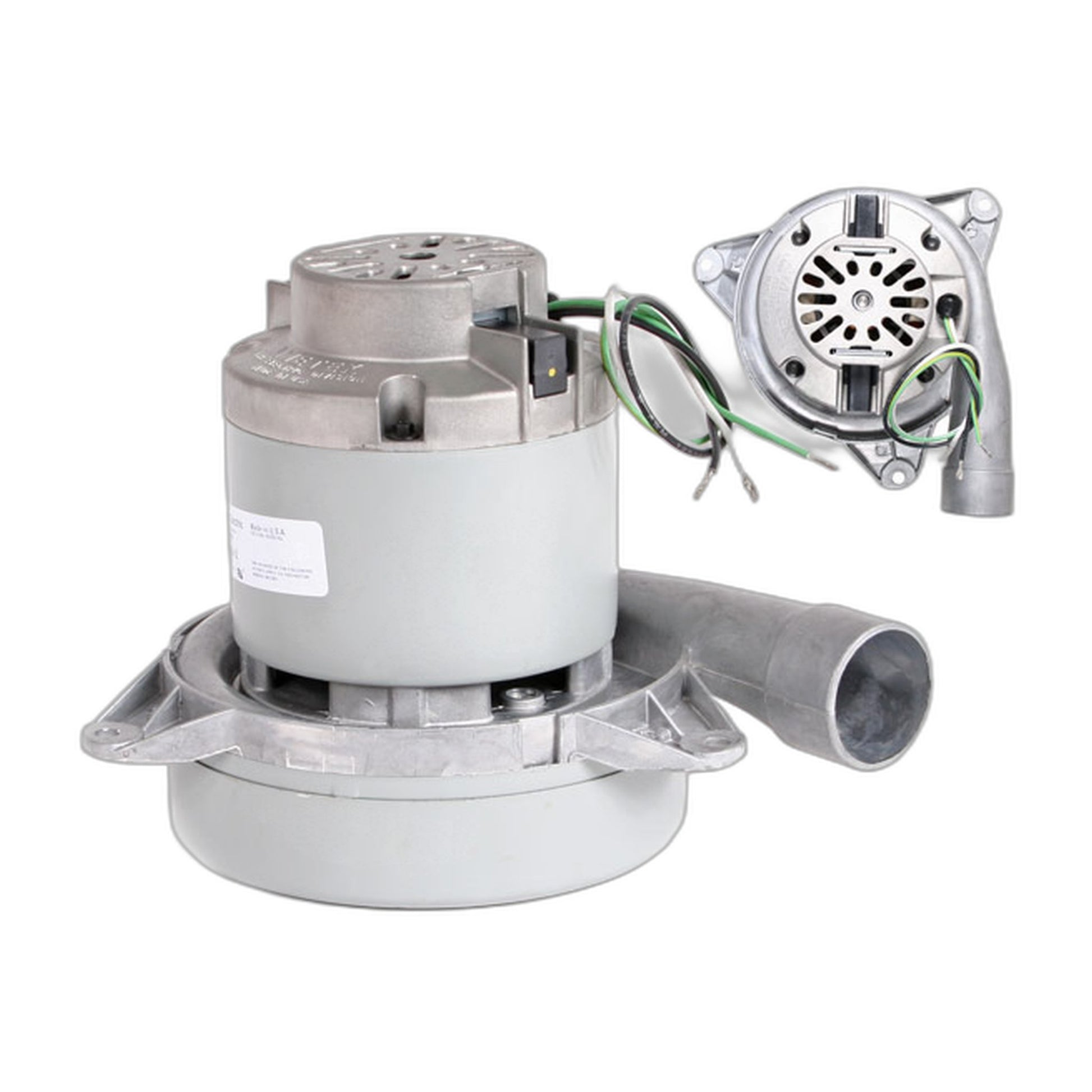

• Lamb Ametek 117478 Premier Central Vacuum Motor (Replaces 117549)
1 1

MD Central Vacuum

Lamb Ametek 117478 Premier Central Vacuum Motor (Replaces 117549)

Lamb Ametek 117478 Premier Central Vacuum Motor (Replaces 117549)

$272.99 USD
$272.99 USD
Sale Sold out
Shipping calculated at checkout.

201P
Free Shipping On Eligible Orders $100+
Expert Support 35+ Years Experience
35-Day Returns Eligible Items

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Lamb Ametek 117478 Premier ...

$272.99

Product details

Upgrade-grade power: the Lamb Ametek 117478 Premier central vacuum motor (SKU 201P) is a brand-new, two-stage, 110-120 volt Ametek original that fits every motor in the 117478 family, including the 117478-12. It can also replace the 117549 — and outmuscles it at 549 air watts versus 483, while standing just 0.18" taller. Motors marked 7478 or 11-7478 are the identical part.

Specification sheet:

  • Voltage: 110-120 V, 50-60 Hz | Amps: 13.5
  • Fan stages: 2
  • Bolt height: 1-3/4" | Overall height: 7-3/4"
  • Air watts: 549 | CFM: 115.8 | Waterlift: 120"
  • Bottom diameter: 7.2"

Rated life is 900-1,200 hours. Replace when the mini breaker pops, an electrical smell surfaces, blue sparks flare from the motor top, or the motor shuts itself down and later revives — absent any click, test the relay first. Installation comes down to three bolts plus two wire connections. Carbon brushes are replaceable on the 117478 (two required per motor) for owners who prefer preventive service.
