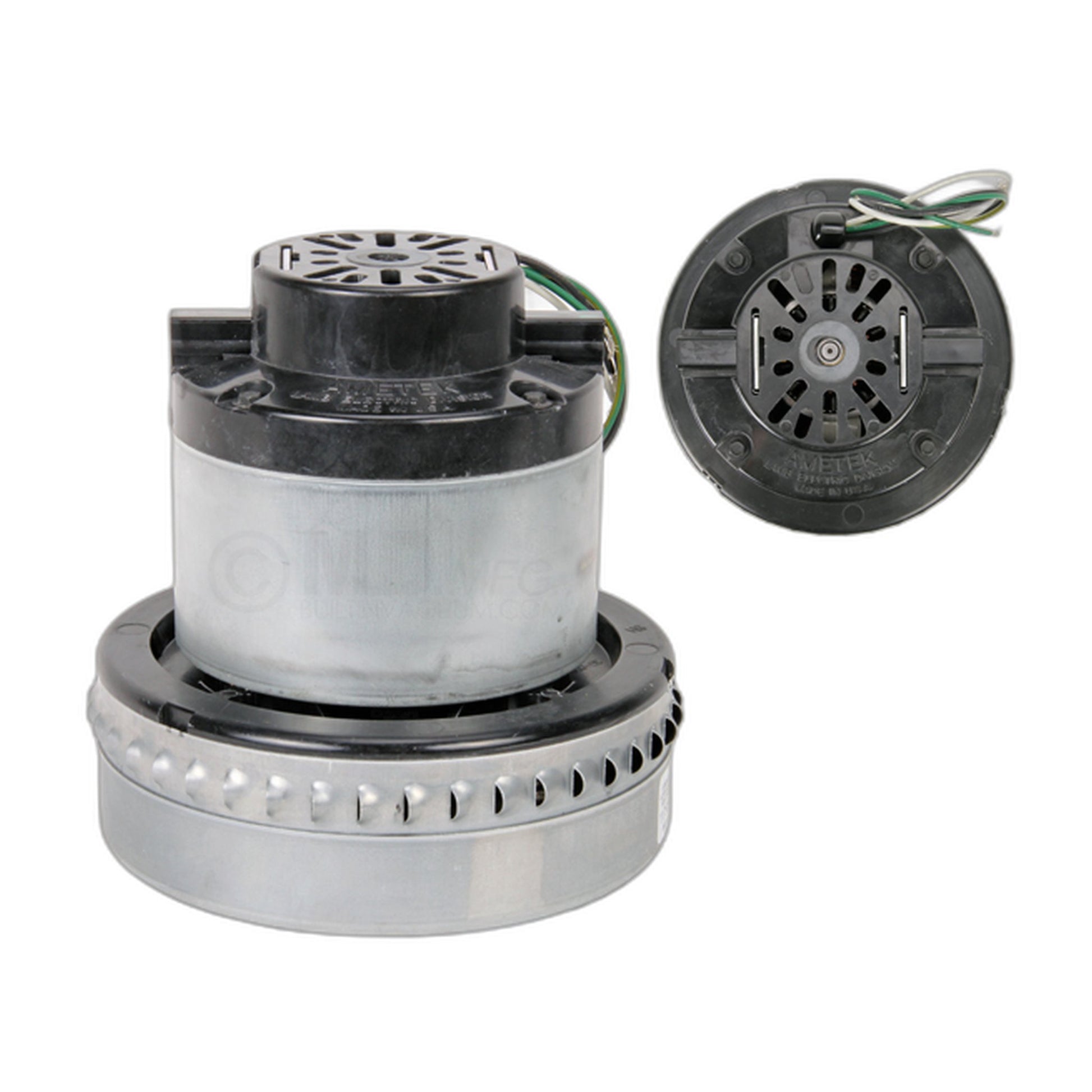

• Lamb Ametek 117508 Vacuum Motor, 7.2 Inch
1 1

MD Central Vacuum

MD Central Vacuum Lamb Ametek 117508 Motor, 7.2 Inch

MD Central Vacuum Lamb Ametek 117508 Motor, 7.2 Inch

$263.99 USD
$263.99 USD
Sale Sold out
Shipping calculated at checkout.

200R
Free Shipping On Eligible Orders $100+
Expert Support 35+ Years Experience
35-Day Returns Eligible Items

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

MD Central Vacuum Lamb Amet...

$263.99

Product details

SKU 200R is the Lamb Ametek 117508 central vacuum motor. The 7.2 inch figure in its name is the bottom diameter of the motor, the dimension that has to match the opening in your power unit, rather than any kind of performance rating.

MD publishes the 117508 at 134.1 inches of water lift, 94 CFM, 406 air watts and 12.7 amps on 110-120 volt power at 50-60 Hz, standing 7-3/8 inches tall with a bolt height of 2-5/8 inches. Ametek lists it as a two-stage 7.2 inch bypass peripheral motor rated 1,200 watts, with 833410-55 as its replacement brush kit. Peripheral discharge sends the exhaust out around the circumference of the fan housing instead of through a single tangential horn, so the shape of the outlet is one of the things to compare against the motor coming out.

  • Part: Lamb Ametek 117508, sold as part 200R
  • Bottom diameter: 7.2 inches
  • Build: two-stage bypass peripheral, 1,200 watts
  • Voltage: 110-120 volt, 50-60 Hz
  • Published performance: 134.1 inches water lift, 94 CFM, 406 air watts, 12.7 amps

MD notes the motor is sometimes stamped 7508 or 11-7508 rather than the full number, and lists this part as replacing the 117508 alone. Photograph the old motor's mounting and wiring before you remove it, then check the stamped number, the bottom diameter and the bolt height against this part.

Verified against: MD Central Vacuum data for Lamb Ametek 117508, part 200R
