• Lamb Ametek 117549-12 Central Vacuum Motor
1 1

MD Central Vacuum

MD Central Vacuum Lamb Ametek 117549-12 Motor

MD Central Vacuum Lamb Ametek 117549-12 Motor

$277.99 USD
$277.99 USD
Sale Sold out
Shipping calculated at checkout.

201VF
Free Shipping On Eligible Orders $100+
Expert Support 35+ Years Experience
35-Day Returns Eligible Items

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

MD Central Vacuum Lamb Amet...

$277.99

Product details

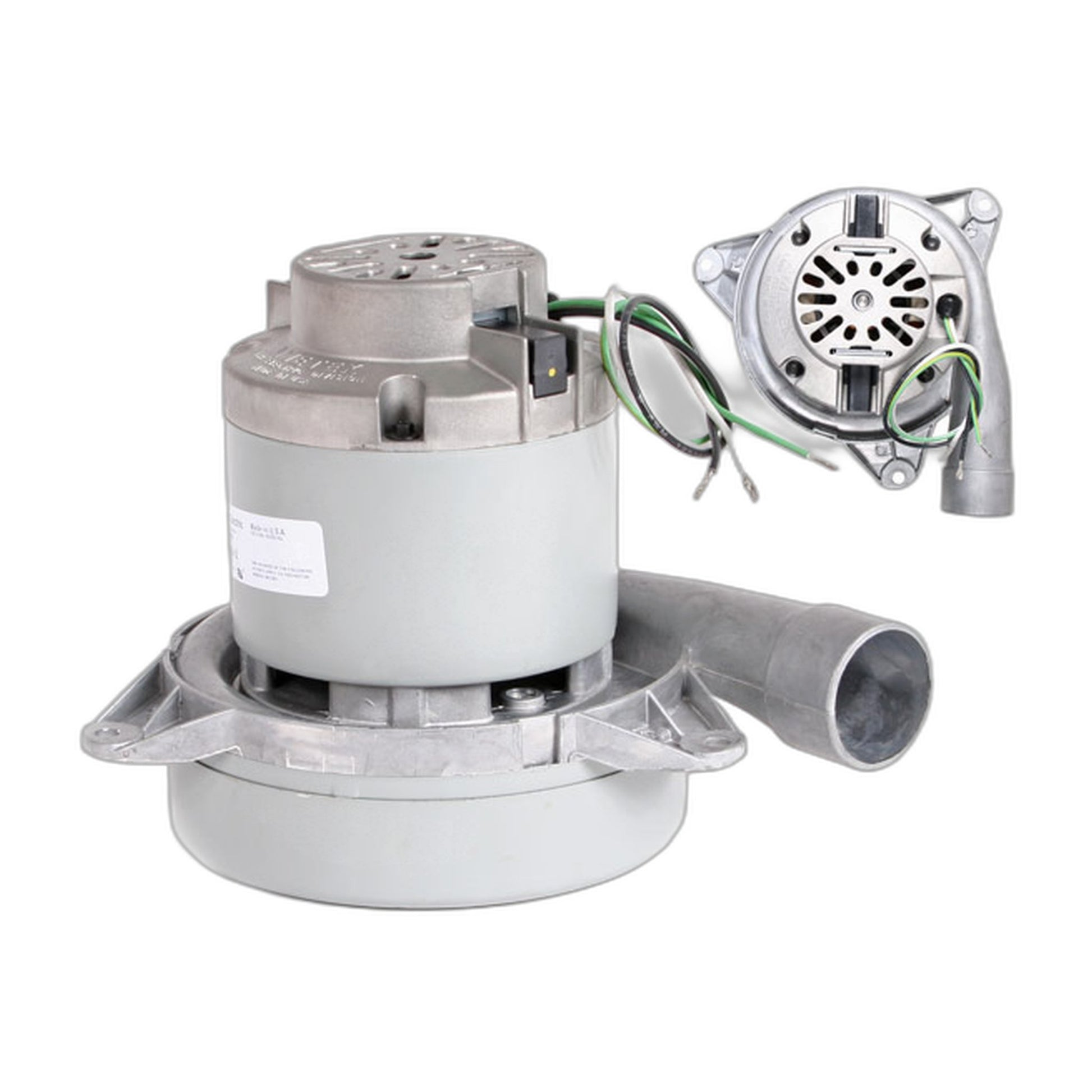

Part 201VF is the Lamb Ametek 117549-12, the dash-12 build of Ametek's 117549 central vacuum motor. MD's published note on that suffix is that the dash-12 fan blades are made slightly differently for better performance, and that the motor itself may be stamped only 7549.

MD rates it as a two-stage motor with a 7.2 inch bottom diameter on 110-120 volt power at 50-60 Hz, giving 125.4 inches of water lift, 111.4 CFM, 483 air watts and 13.5 amps, standing 7-3/4 inches tall with a bolt height of 1-3/4 inches. Ametek classes the same motor as a 7.2 inch bypass tangential unit on its Premier platform at 1,625 watts and names 833450-57 as the replacement brush kit.

  • Part: Lamb Ametek 117549-12, sold as part 201VF
  • Build: two-stage bypass tangential, Premier platform, 1,625 watts
  • Bottom diameter: 7.2 inches, bolt height 1-3/4 inches
  • Published performance: 125.4 inches water lift, 111.4 CFM, 483 air watts, 13.5 amps
  • Ametek brush kit: 833450-57

A central vacuum motor is a sealed assembly that is not rebuilt, so a failure means a full swap. Suction falling away while the rest of the system is intact, an electrical smell, heavy blue sparking at the top vents or a unit that shuts itself off and restarts later are the usual signs. MD lists this part as replacing the 117549-12 alone, so confirm the stamped number and the bolt height on your own motor first.

Verified against: MD Central Vacuum data for Lamb Ametek 117549-12, part 201VF
