• Lamb Ametek 119512 Tangential Bypass Central Vacuum Motor
1 1

MD Central Vacuum

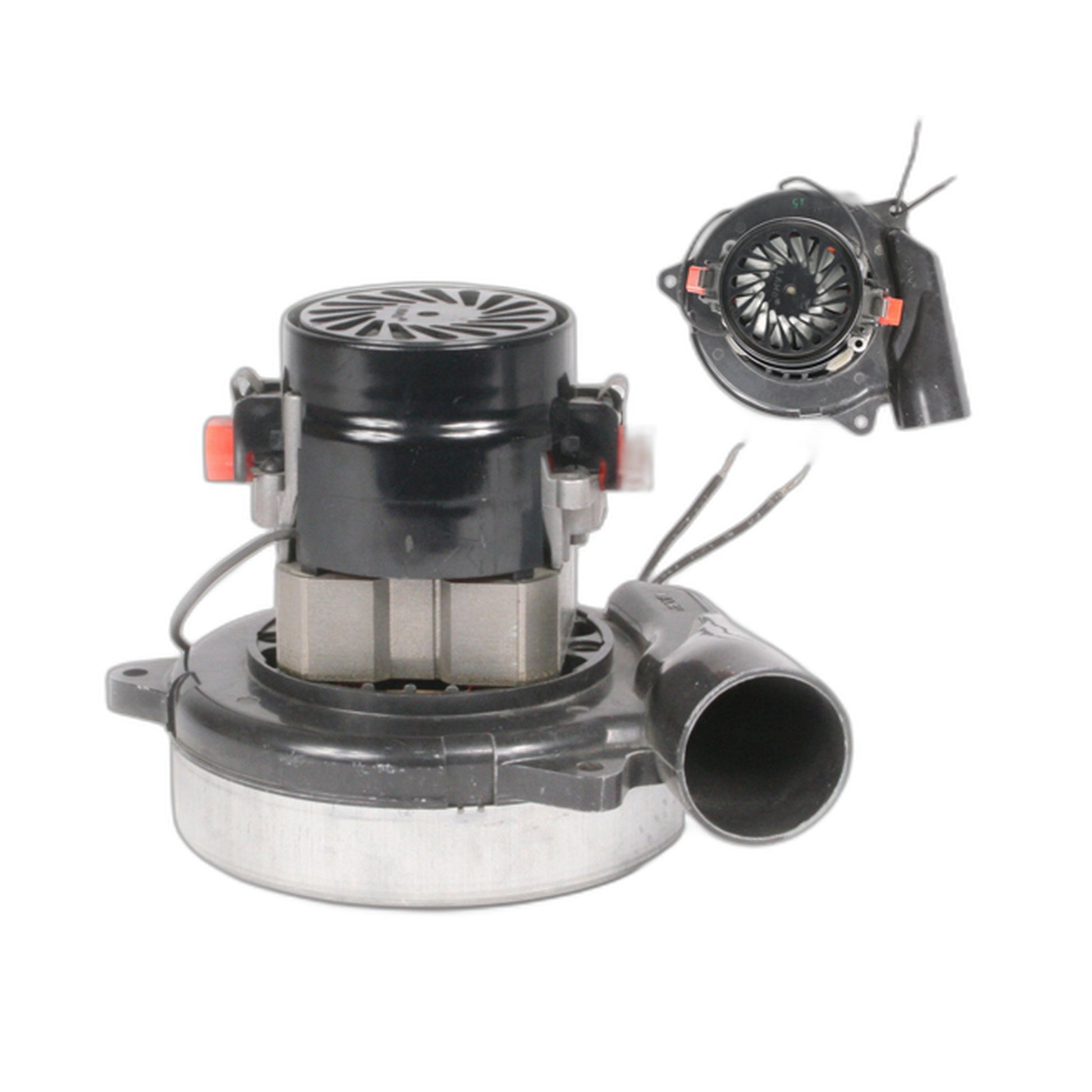

Lamb Ametek 119512 Tangential Bypass Central Vacuum Motor

Lamb Ametek 119512 Tangential Bypass Central Vacuum Motor

$107.99 USD
$107.99 USD
Sale Sold out
Shipping calculated at checkout.

209-1
Free Shipping On Eligible Orders $100+
Genuine Parts OEM Quality
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Lamb Ametek 119512 Tangenti...

$107.99

Product details

SKU 209-1 is the Lamb Ametek 119512 central vacuum motor, a brand-new (never rebuilt) single-stage Ametek original built with a tangential bypass design. It is fitted in several central vacuum brands and models and is a direct replacement for the 119512 only. Motors marked 9512 or 11-9512 on the label are this same part.

Specs for the 119512:

  • Voltage: 110-120 V, 50-60 Hz | Amps: 11.2
  • Fan stages: 1 | Bypass: tangential
  • Bolt height: 1-1/4" | Overall height: 6-3/4"
  • Air watts: 418 | CFM: 138.3 | Waterlift: 87.5"
  • Bottom diameter: 5.7"

Figure on 900-1,200 hours of service. A failing 119512 announces itself with a popping mini breaker, an electrical smell, pronounced blue sparking from the motor top, or shutdowns that clear on their own — if you only hear silence with no click, check the relay first, since the motor may be fine. Swapping the motor takes three bolts plus two wire connections, a job most owners find quick and manageable.
