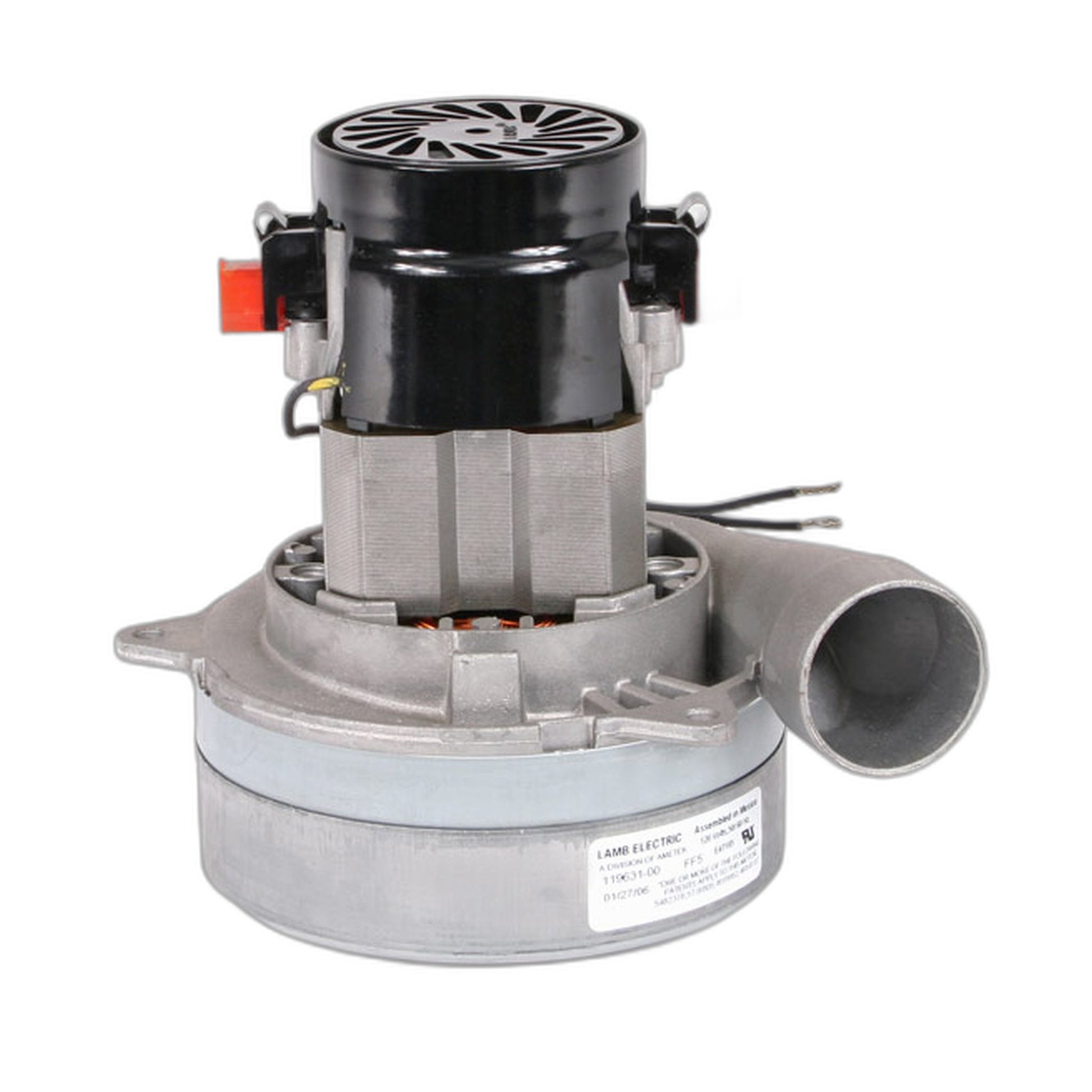

• Lamb Ametek 119631 High Air Watt Central Vacuum Motor (Tapered Bottom)
1 1

MD Central Vacuum

MD Central Vacuum Lamb Ametek 119631 High Air Watt Motor

MD Central Vacuum Lamb Ametek 119631 High Air Watt Motor

$158.99 USD
$158.99 USD
Sale Sold out
Shipping calculated at checkout.

209C
Free Shipping On Eligible Orders $100+
Genuine Parts OEM Quality
Secure Checkout SSL Encrypted

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

MD Central Vacuum Lamb Amet...

$158.99

Product details

SKU 209C is the Lamb Ametek 119631, a high air watt central vacuum motor with a tapered rather than flat base. MD publishes it at 515 air watts, 128 inches of water lift, 114 CFM and 14.4 amps on 110-120 volt power, two stages, 5.7 inch bottom diameter, 7 inches tall with a bolt height of 2 inches.

The shape of the base is the first thing to check. MD is explicit that the bottom of this motor tapers down over half an inch, and that if the base of your current motor is completely flat you want the 116472 instead. MD also lists the 119631 as the replacement for the 119708-00, which Ametek rates at 1,500 watts against 1,625 for this motor, so the swap is a modest step up in power on the same 5.7 inch bypass tangential frame.

  • Part: Lamb Ametek 119631, sold as part 209C
  • Base: tapered, dropping over half an inch
  • Build: two-stage bypass tangential, 1,625 watts
  • Published performance: 128 inches water lift, 114 CFM, 515 air watts, 14.4 amps
  • Listed to replace: motor 119708-00

MD's install guidance is to reuse the existing motor gasket, clip the leads from the old motor and splice them into the new motor's wires with wire nuts, and keep washers on hand to take up an eighth of an inch of difference on the bolt threads. Inspect that old gasket for cracking, flattening or tearing before deciding it is still fit to seal.

Verified against: MD Central Vacuum data for Lamb Ametek 119631, part 209C
