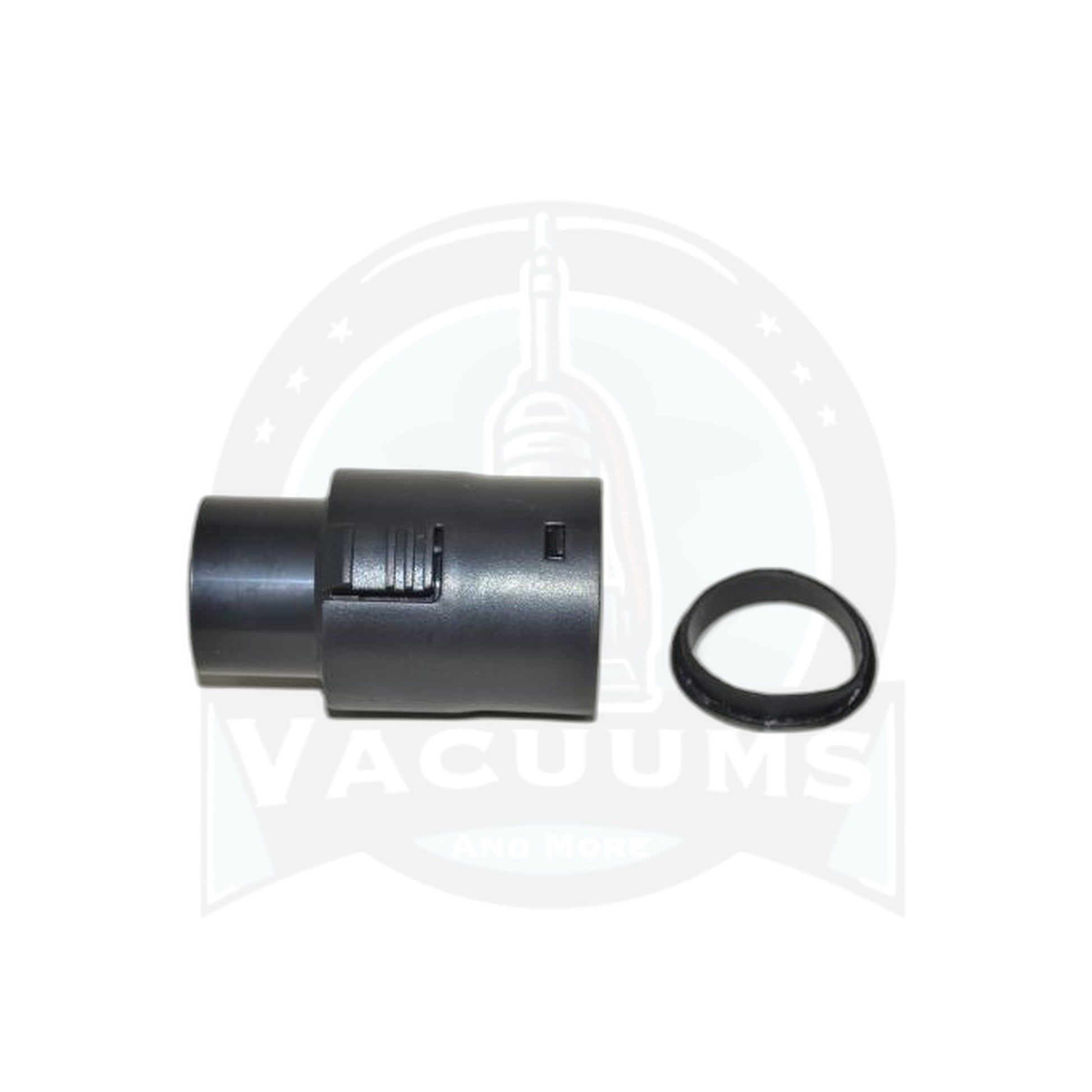

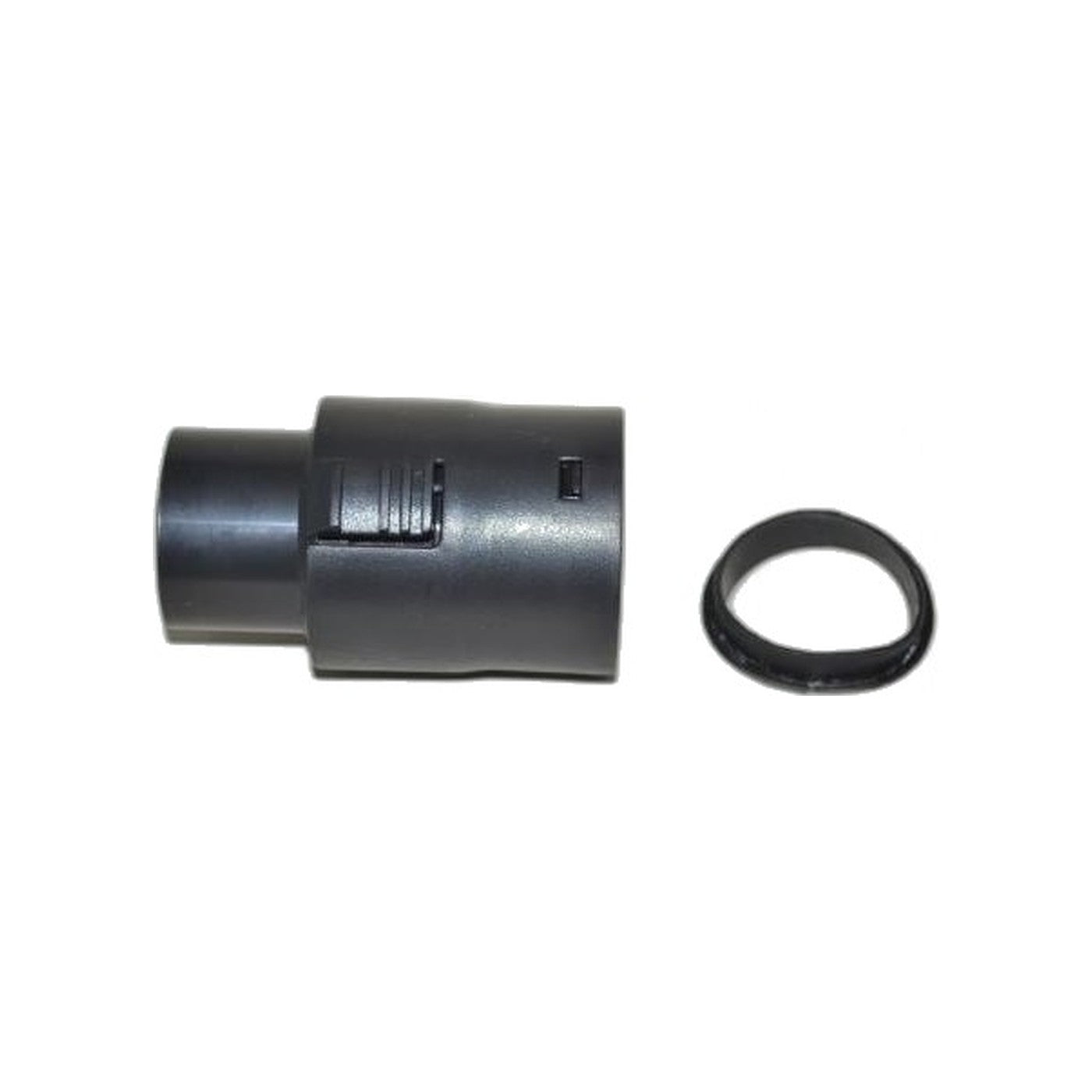

Titan Machine End Cuff - T1400 Canister

Titan Machine End Cuff, part number 17-1305-01, is the collar that seats the hose into the vacuum body on a Titan T1400 canister. It holds an airtight connection at that joint, which is where a canister loses the most suction if anything goes wrong, since every bit of airflow the motor generates has to pass through it before reaching the hose.

Cuffs harden and crack with age, and repeated bending at the same spot every time the hose is disconnected eventually splits the material. A worn cuff shows up as a hiss of air right at the machine inlet, a noticeable drop in suction at the tool end of the hose, or a hose that no longer seats firmly and works loose during use.

Because the cuff sits at the machine end of the airflow path, a leak there pulls in room air ahead of everything the hose has already picked up, so the loss turns up at the tool even when nothing inside the hose is blocked. Feel around the cuff by hand with the vacuum running; a hiss you can locate with your fingers is diagnostic on its own, without needing to remove any panels first.

• Part: 17-1305-01, machine end cuff
• Fits: Titan T1400 canister vacuum
• Function: seals the hose connection at the vacuum body
• Symptom of failure: hissing at the inlet, weak suction at the tool, a loose-fitting hose

Replacing the cuff is far simpler and cheaper than replacing the whole hose assembly, and it restores a tight seal at the joint. As an authorized Titan dealer, Vacuums and More stocks this cuff as the correct match for the T1400, and we can help confirm the fit against your machine's rating plate if you are unsure which cuff your canister takes.
