Miele Blizzard CX1 Cable Reel, 6.5m USA Cord

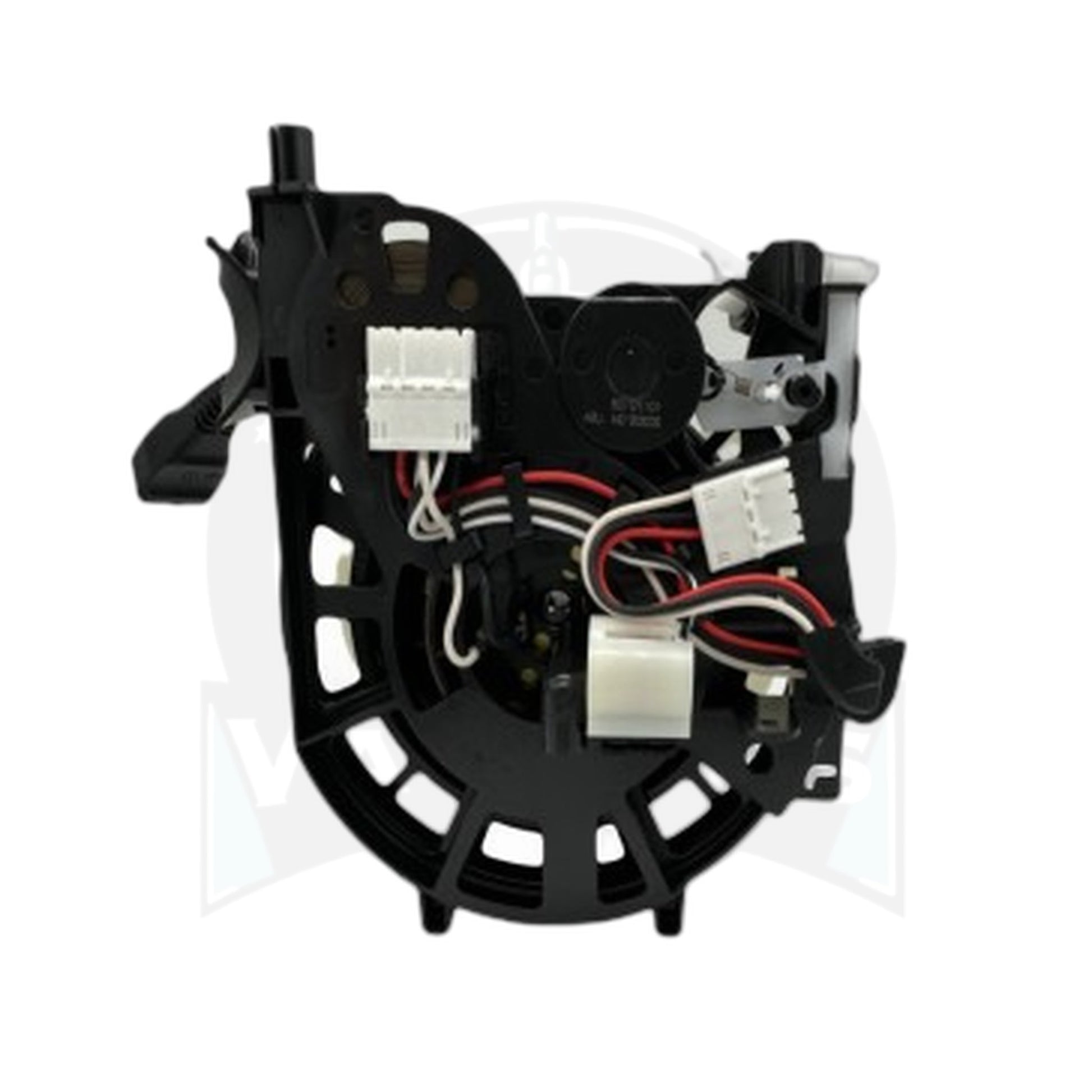

A genuine Miele cable reel for the Blizzard CX1, part 10170105, complete with the 6.5-meter (21 ft) U.S.-specification power cord already wound and terminated. On the CX1, one tap of the foot pedal retracts the entire cord automatically — so when the rewind spring tires out, the cord stops retracting fully, or the conductors fray where the cord exits the reel, the whole reel assembly is replaced as a unit. That is by design: the cord, spring, and slip-ring contacts come pre-assembled and tested, which makes this a straightforward repair for a technician or a confident DIYer.

Part 10170105 supersedes earlier numbers 10170103 and 10170104 and is the standard (non-electric-hose) reel listed on the official parts diagram for the U.S. Blizzard CX1 SKCE0 platform. It suits straight-suction and turbo-brush machines such as the Blizzard CX1 Pure Suction PowerLine and Blizzard CX1 Turbo Team PowerLine (Tech Blue). Machines running an electric powerhead use the +E reel, part 10513963, instead.

evacuumsandmore.com is an authorized Miele dealer — this is the factory reel with Miele's own cord, not a rewound aftermarket unit, so rewind tension and electrical safety match original spec.
