Miele Cable Reel 6.5m for S5000 Series & Complete C2

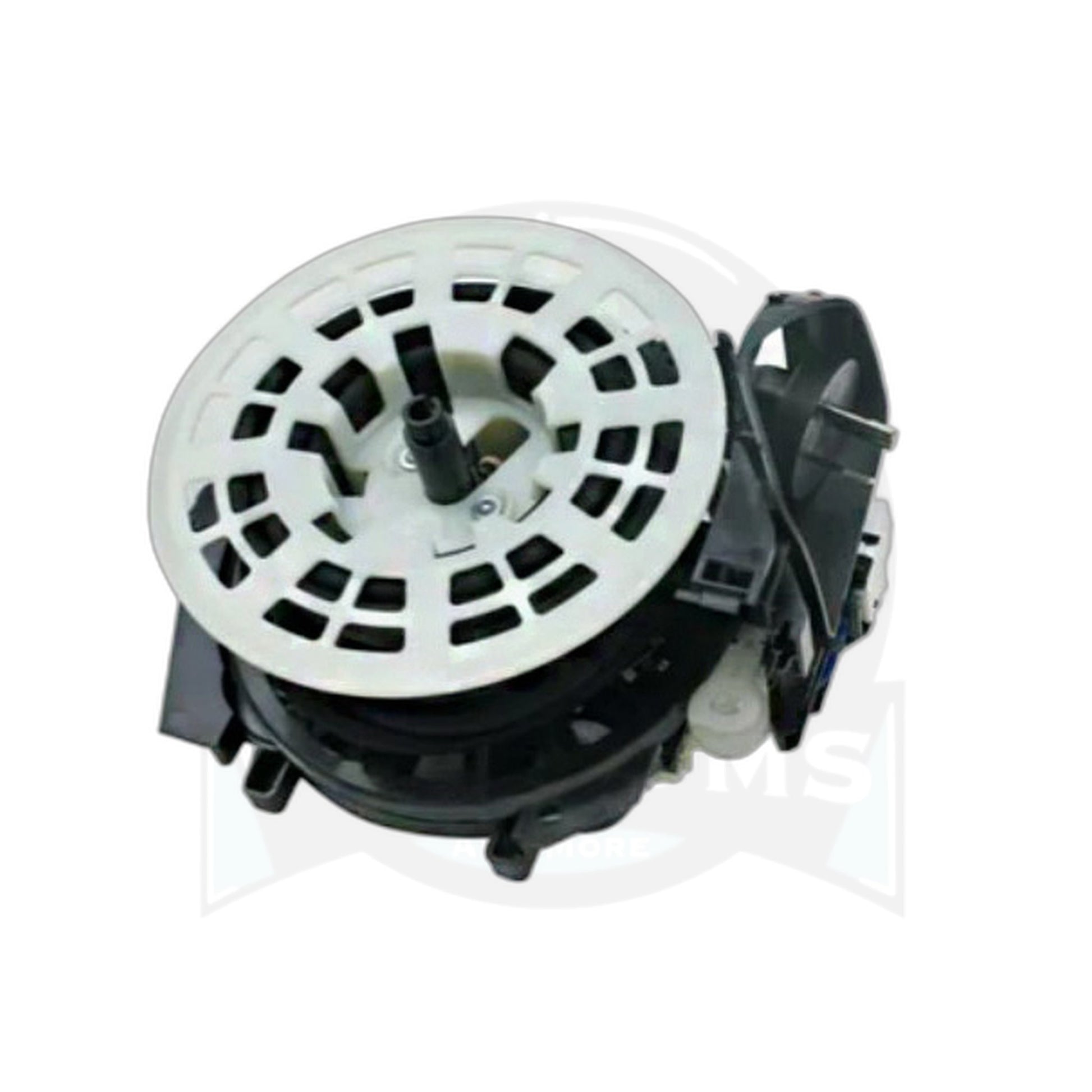

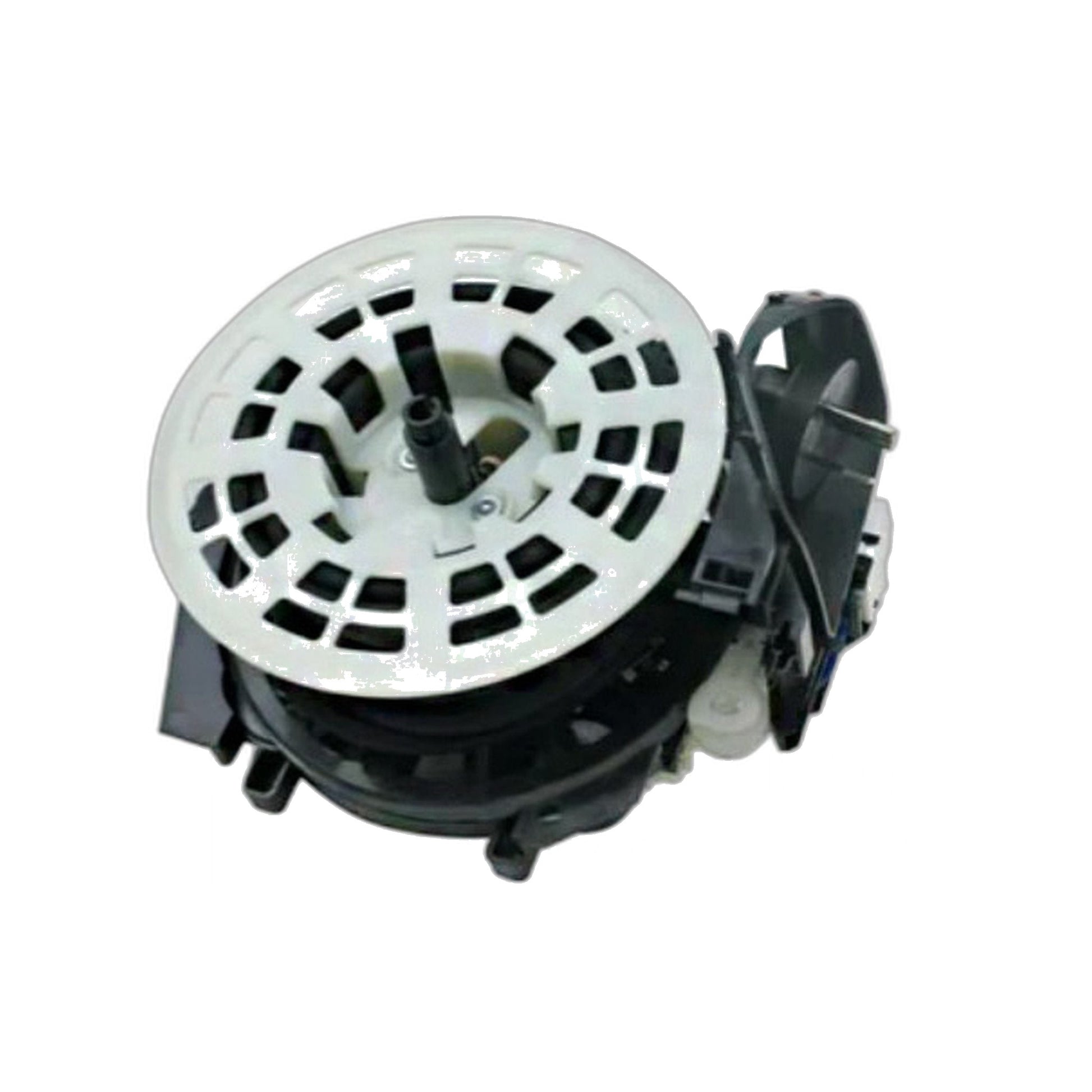

Genuine Miele cable reel assembly 10243713 — the complete 6.5-meter US-spec cord rewind unit for S5000 series and Complete C2 canister vacuums. The reel ships fully wound with the power cord installed, so a worn-out or non-retracting cord is fixed in one swap instead of attempting to re-spool a cord onto an old spring mechanism.

Typical signs you need this part: the cord retracts slowly or stops halfway, the foot pedal no longer releases the spool, or the cord insulation is cracked near the strain relief. Any of those means the reel assembly has reached the end of its service life, and Miele supplies it only as this complete unit.

Fitment: Miele S5000 series and Complete C2 canisters, including the S5281 Callisto, S5281 Libra, S5281 Pisces, S5381 Gemini, S5381 Leo, S5981 Capricorn and Complete C2 (SFAE0) models. This part supersedes and replaces the earlier reel number 6454293.

evacuumsandmore.com is an authorized Miele dealer — this is the factory cord reel with Miele's own cord, terminals and rewind spring, built to the original electrical spec for North American 120 V machines.
