Titan Motor Gasket for TCS9...
$44.99
Product details

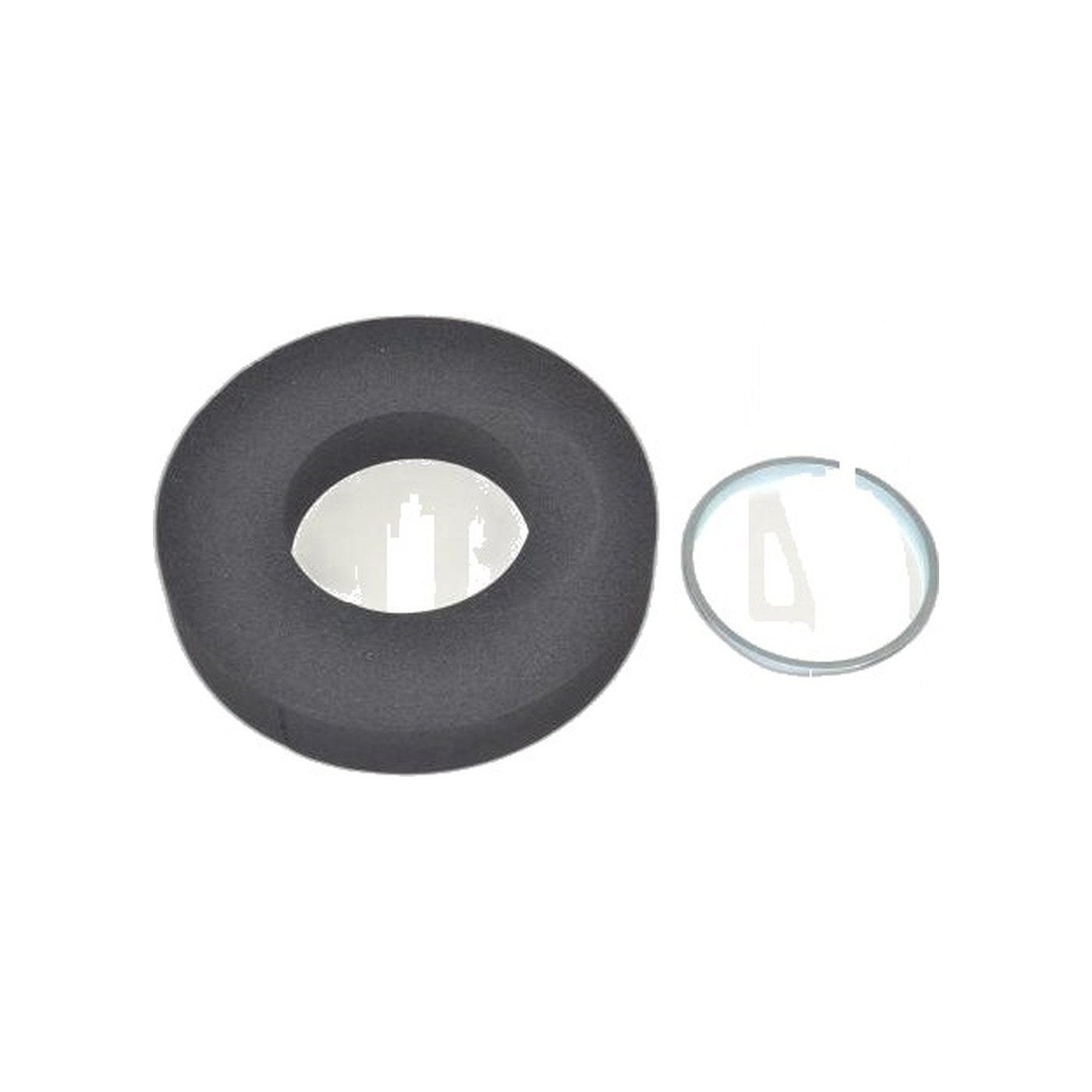

Titan lists this gasket, part GASCUT06R, specifically for the TCS9902 central vacuum power unit, sized to the 6.6 inch motor housing diameter used on that unit. Getting the diameter right matters here, since Titan's central vacuum motors are not built to one size across the whole lineup, and a gasket cut for a different housing will not seat evenly.
The gasket closes the gap between the motor can and the surrounding housing so incoming air is forced through the intake rather than leaking past the seam. Once it hardens or splits, that leak path shows up as a drop in wall-inlet suction long before the motor itself shows any sign of wear, which is why a suction complaint on an otherwise healthy-sounding unit often traces back to a gasket rather than a motor.
- Part number: GASCUT06R
- Fits: Titan TCS9902 central vacuum power unit
- Diameter: 6.6 in. motor housing
- Sold: each
Fitting a new gasket without cleaning old sealant residue off both mating surfaces defeats much of the purpose of the replacement, since leftover material creates its own high spots and can reopen the same leak path within a short time. Wipe both faces down to bare metal before setting the new gasket into position.
Measure the motor can on your unit against the 6.6 inch spec before ordering if the model tag is worn or missing, since a mismatched gasket will not seal fully even though it may appear to fit at first glance.
