Lamb

Motor - Ametek Lamb 3-Stage, 120V, 7.2" Bypass (H2O Sealed)

Motor - Ametek Lamb 3-Stage, 120V, 7.2" Bypass (H2O Sealed)

$351.99 USD
$351.99 USD
Sale Sold out
Shipping calculated at checkout.

117507-13

Low stock: 2 left
Free Shipping On Eligible Orders $100+
Expert Support 35+ Years Experience
35-Day Returns Eligible Items

Shipping Information

We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.

Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.

Returns & Exchanges

Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.

Return eligibility

Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.

Shipping and refunds

For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.

Received a defective item?

Contact us so we can help arrange a prepaid return label and replacement.

Please review our Return & Refund Policy for complete details and exclusions.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Motor - Ametek Lamb 3-Stage...

$351.99

Product details

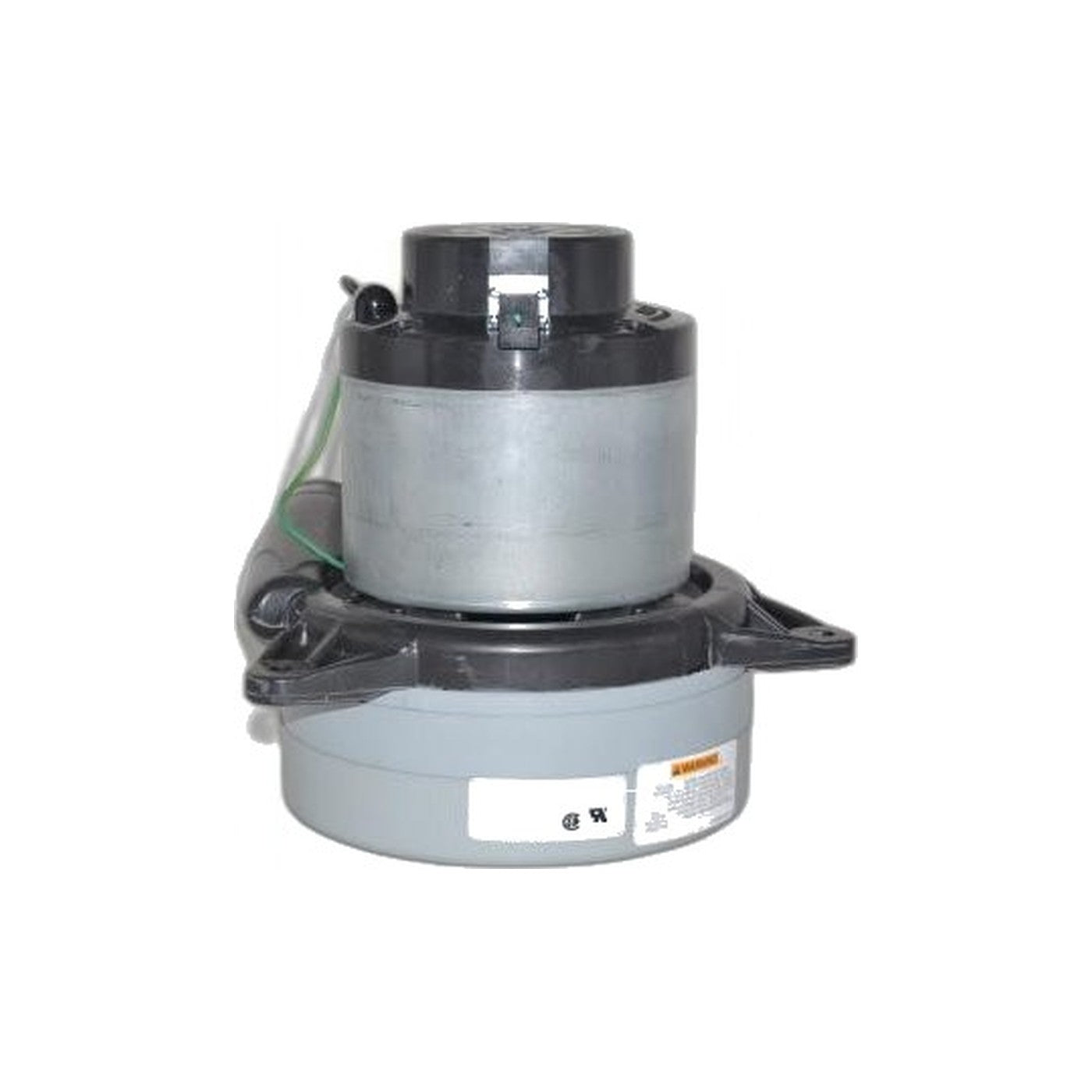

A big motor: part 117507-13 is an Ametek Lamb three-stage bypass unit in the 7.2-inch frame, 120 volts, built to a water-sealed specification. The 7.2-inch frame is what central vacuum power units and larger commercial machines use when a 5.7-inch motor is not enough.

Bypass construction routes cooling air separately from the working airstream, so the windings never see the dirt being moved. Three stages give the water lift needed to pull through the long pipe runs of a whole-house system.

Suction that has faded at every inlet, a burning smell from the power unit, a new grinding or whining note, or a unit that will not start are the signs to act on. Check the number on your existing motor against 117507-13, match the frame and discharge, and disconnect power before starting.
