Motor - Lamb 3-Stage Bypass, 7.2", 120V

Motor - Lamb 3-Stage Bypass, 7.2", 120V

$398.99 USD
$398.99 USD
Sale Sold out
Shipping calculated at checkout.

117511-00

Low stock: 2 left
Free Shipping On Orders $100+
Expert Support 35+ Years Experience
Easy Returns 35-Day Policy

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Motor - Lamb 3-Stage Bypass...

$398.99

Product details

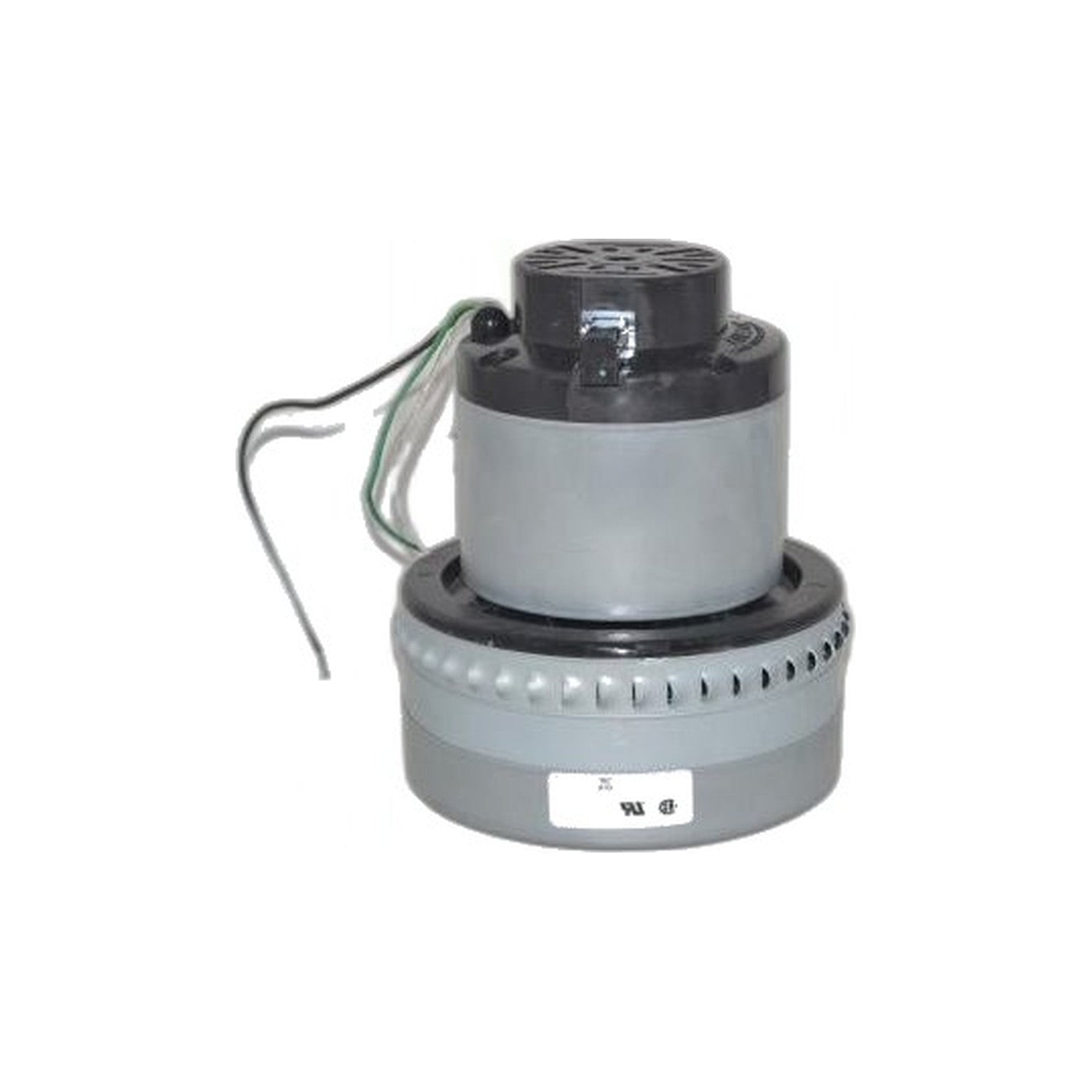

Part 117511-00 is Ametek Lamb's three-stage bypass motor in the 7.2-inch frame, 120 volts, with tangential discharge and double ball bearings. The published ratings are 132.3 inches of sealed vacuum, 89.3 CFM, 373 maximum air watts, 11.5 amps maximum and 22,040 RPM.

A three-stage design trades some airflow for water lift against a two-stage motor of the same size, which is exactly the compromise a central vacuum wants: the pipe run from a second-floor inlet down to the power unit costs pressure, and this motor has it to spare.

Order one when suction has faded system-wide, the power unit has grown noisy, or there is a burning smell in the exhaust. Match the number, the frame and the tangential discharge to your existing motor, and have the work done by someone experienced with motor replacement.
