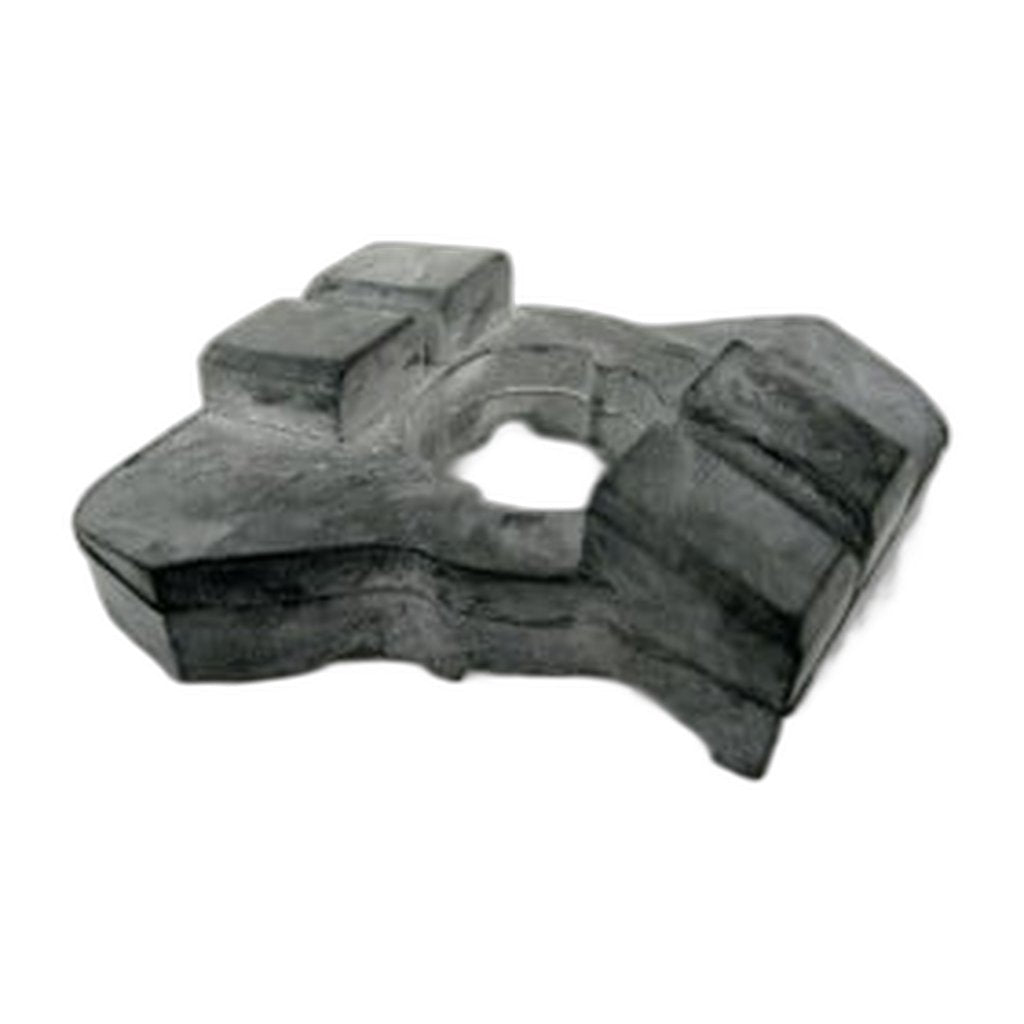

SEBO Motor Support Cradle for AIRBELT D and E Series Canisters

One moulding carries the suction motor across five different SEBO canisters. Part 8045ER is that cradle, catalogued for the AIRBELT D1 Turbo, D4 Premium, E1 Kombi, E2 Turbo and E3 Premium, and drawn as item 11 on the AIRBELT E sheet.

What surrounds it on that drawing makes the job plain. The motor takes item 9, the mount gasket 8, the noise-limiting cover 12 and the motor cover 13. This cradle is the piece holding the motor square in the middle of all of it, and the piece keeping motor vibration out of the shell. Crack the moulding, or let its ribs take a permanent set, and the motor settles fractionally off line. A drone appears under load, the housing buzzes at certain speeds, and the misalignment starts tugging at the inlet seal and the leads running past. A sound cradle returns the motor to its axis and takes the noise with it.

It is worth inspecting on any canister that has had its motor out. A support that has been heat-cycled for years rarely grips the way it did when new, and dropping a healthy motor into a tired one simply carries the vibration forward into the rebuild.

• Order code: 8045ER
• Machines: AIRBELT D1 Turbo, D4 Premium, E1 Kombi, E2 Turbo and E3 Premium
• Drawing reference: AIRBELT E sheet, item 11
• Numbers drawn around it: motor 8243ER at 9, noise-limiting cover 8220ER at 12, motor cover 8289ER at 13
• Packed inside: the 8048ER motor package for the AIRBELT D1 Turbo and D4 Premium
• Change it when: the moulding has split, the ribs are crushed, or the motor sits loose in its recess

Work with the plug out and the motor cover off; the cradle drops into the recess the original occupied. Common searches - SEBO motor support, AIRBELT E motor mount, D series motor cradle replacement - all point at this number. Genuine SEBO component, authorized dealership. Ships in 2-5 business days.
