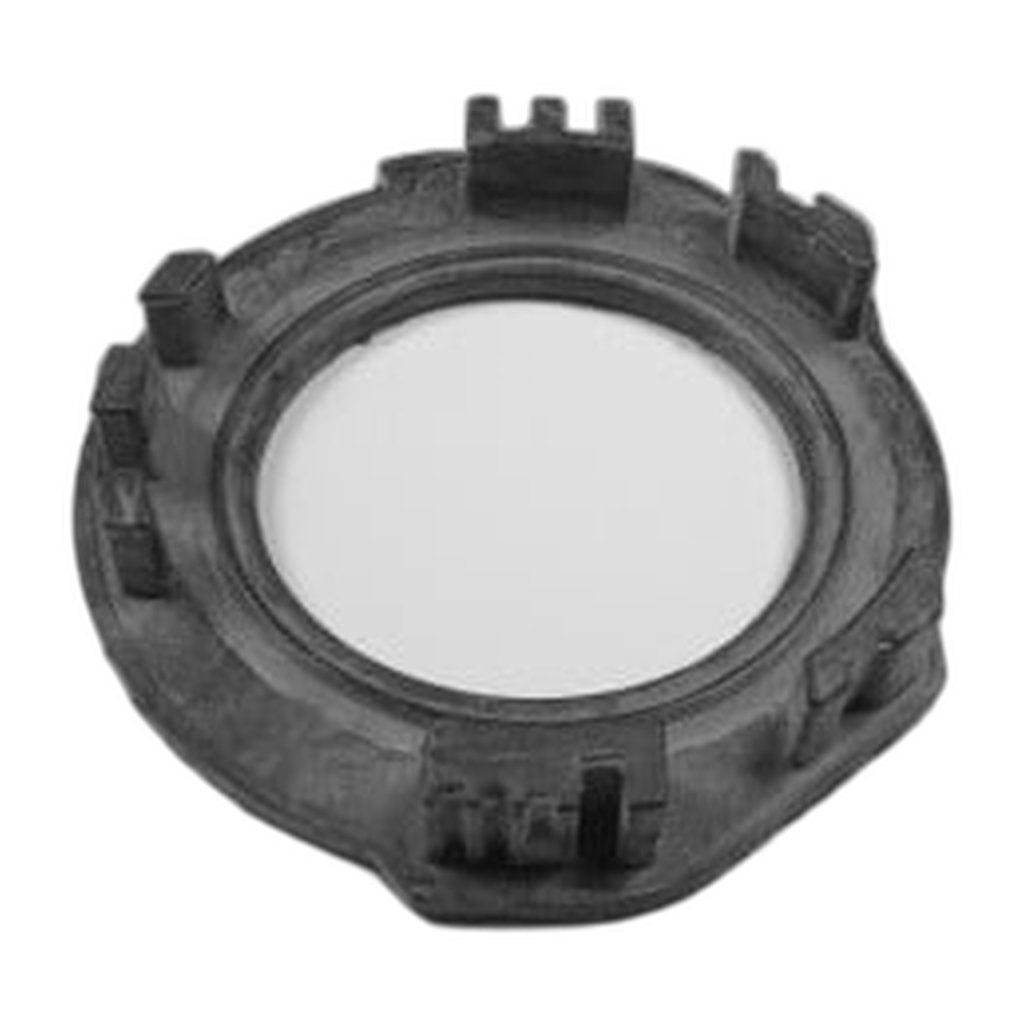

SEBO Domel Motor Support Se...
$20.00
Product details
Rubber hardens with heat, and the seal around the motor support is one of the first items in an upright to go stiff. SEBO part 52013 is the Domel motor support seal used on the AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8, sitting where the motor housing meets its support and keeping that joint airtight. The exploded diagram for the AUTOMATIC X7/X8 puts it at position 108, immediately alongside the motor itself.
Once the seal splits or takes a permanent set, air finds the shortest way into the motor rather than the route the design intended. Suction falls off at the nozzle while the motor still sounds perfectly healthy, which is what makes this fault so easy to misdiagnose as a tired motor or a blocked hose. A fresh seal closes the gap and the machine draws through the bag again as it should. Because the part is buried, it is standard practice to renew it whenever the motor is disturbed for any reason — a hardened seal will not reseat once it has been unbolted.
- Part number: 52013
- Made for: the Domel motor
- Job: seals the motor housing against its support
- Diagram position: 108 on the AUTOMATIC X7/X8 parts breakdown
- Fits: AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8
- Related part numbers: rubber mounting 5100 at position 111 and motor housing 52059UL at position 112 on the same sheet
Handle the old seal carefully on removal so you can see how it sat: the orientation of a soft part is far easier to copy than to work out afterwards, and a seal fitted twisted leaks just as badly as one that has perished. Searches that lead here include SEBO motor support seal, Domel motor gasket and AUTOMATIC X8 suction loss repair. Supplied genuine by an authorized SEBO dealer; ships in 2-5 business days.
