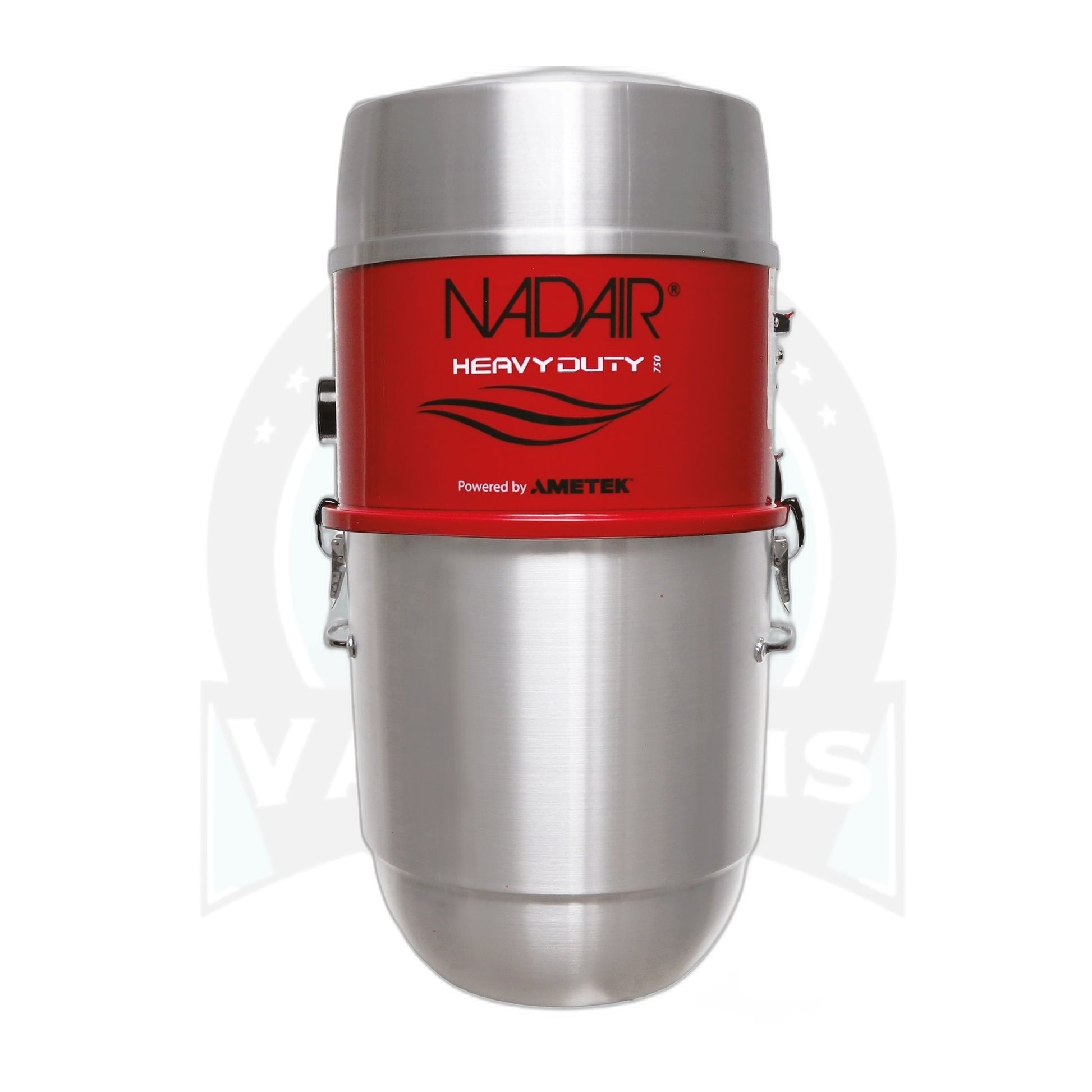

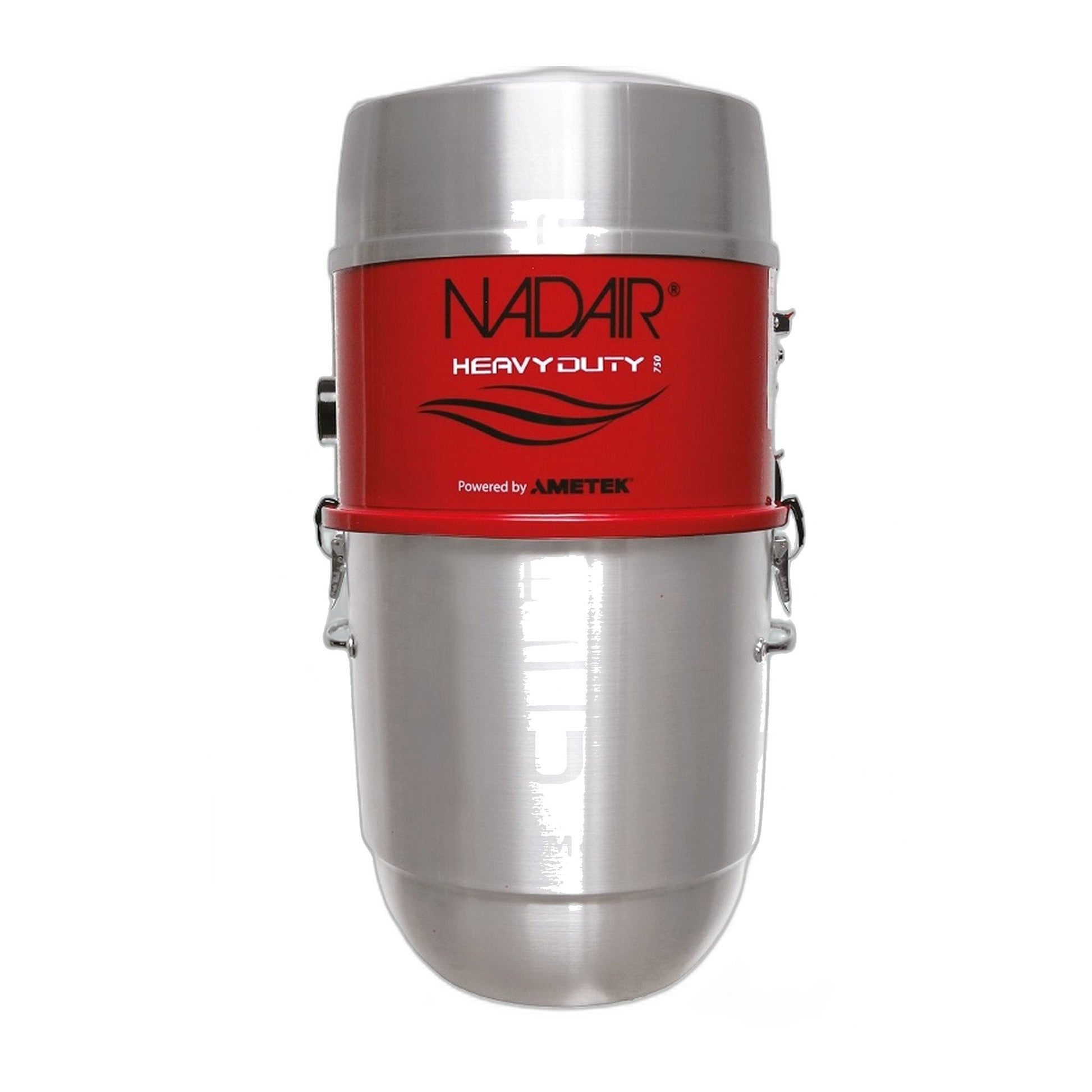

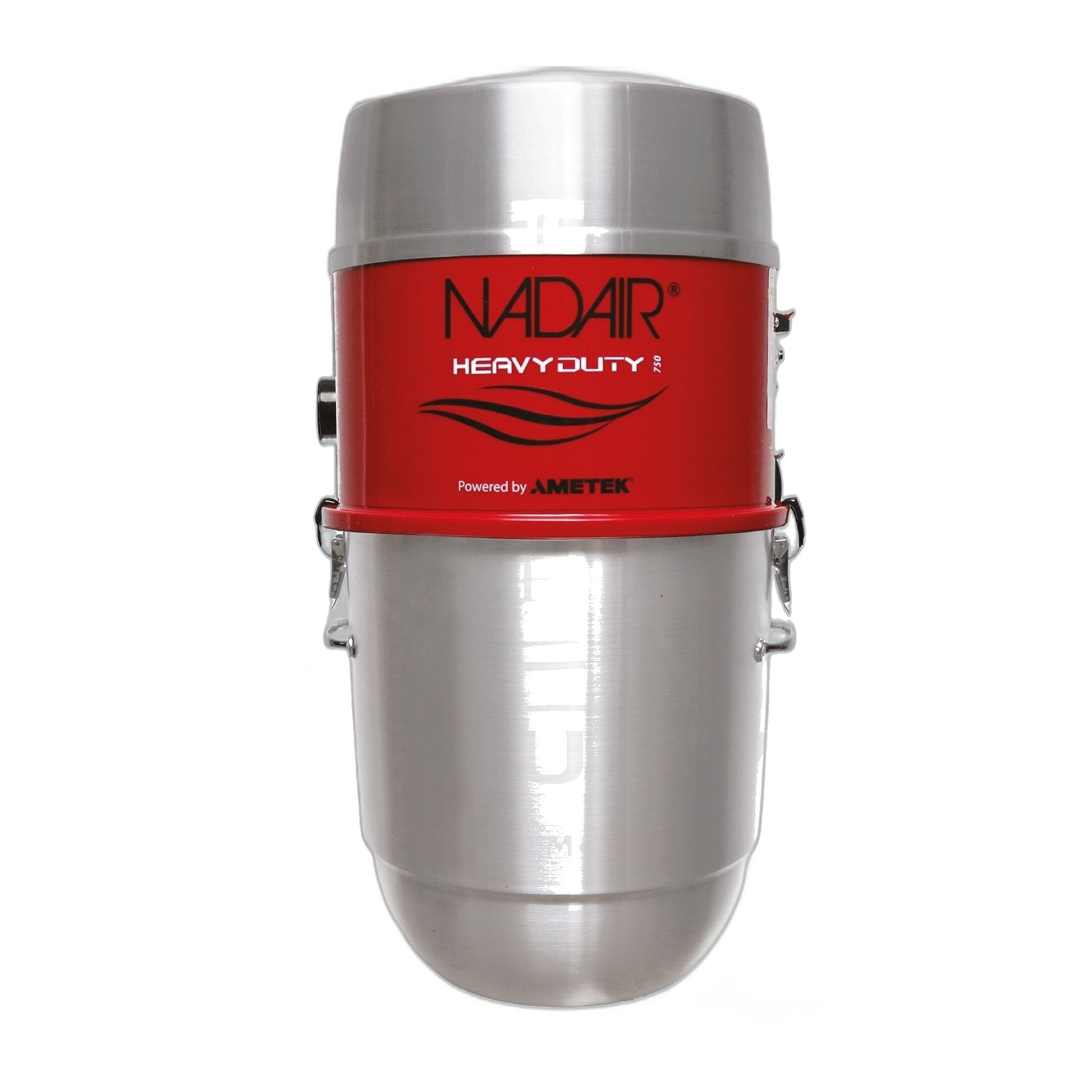

Nadair HD-750-22H Central Vacuum, 750 AW, 6,000 Sq Ft

The Nadair HD-750-22H is a central vacuum power unit, model HD-750-22H, rated at 750 air watts and sized for homes up to 6,000 square feet. Like every central vacuum power unit, it stays mounted in one spot, usually a garage, basement, or utility room, and pulls debris through fixed piping to inlet valves placed around the house rather than being carried from room to room.

Air watts is the number that best predicts how a central vacuum will actually feel at the hose, because it combines suction and airflow rather than reporting either alone. A 750 AW rating puts the HD-750-22H ahead of an entry-level unit and gives it the reserve capacity to hold performance at inlets farther from the power unit, which matters more as total pipe run length grows with square footage.

Coverage ratings like the 6,000 square foot figure here are a planning number, not a guarantee independent of layout. A single-level home with long straight pipe runs and a sprawling multi-level home at the same finished square footage put different demands on a power unit, since every additional elbow and every extra foot of vertical run adds resistance the motor has to work against.

• Model: Nadair HD-750-22H
• Rated output: 750 air watts
• Coverage: homes up to 6,000 square feet
• Motor: 5.7-inch two-stage Ametek motor with soft-start
• Measured performance: 141.2 CFM airflow, 146-inch water lift
• Canister: 22-liter (5.81-gallon) bottom-load spun aluminum
• Filtration: hybrid, runs with or without disposable bags over a washable filter

Confirm the HD-750-22H's coverage rating comfortably exceeds your home's finished square footage, and account for the number of floors and the length of the planned pipe run, before choosing this unit over a lower- or higher-output model in the lineup.
