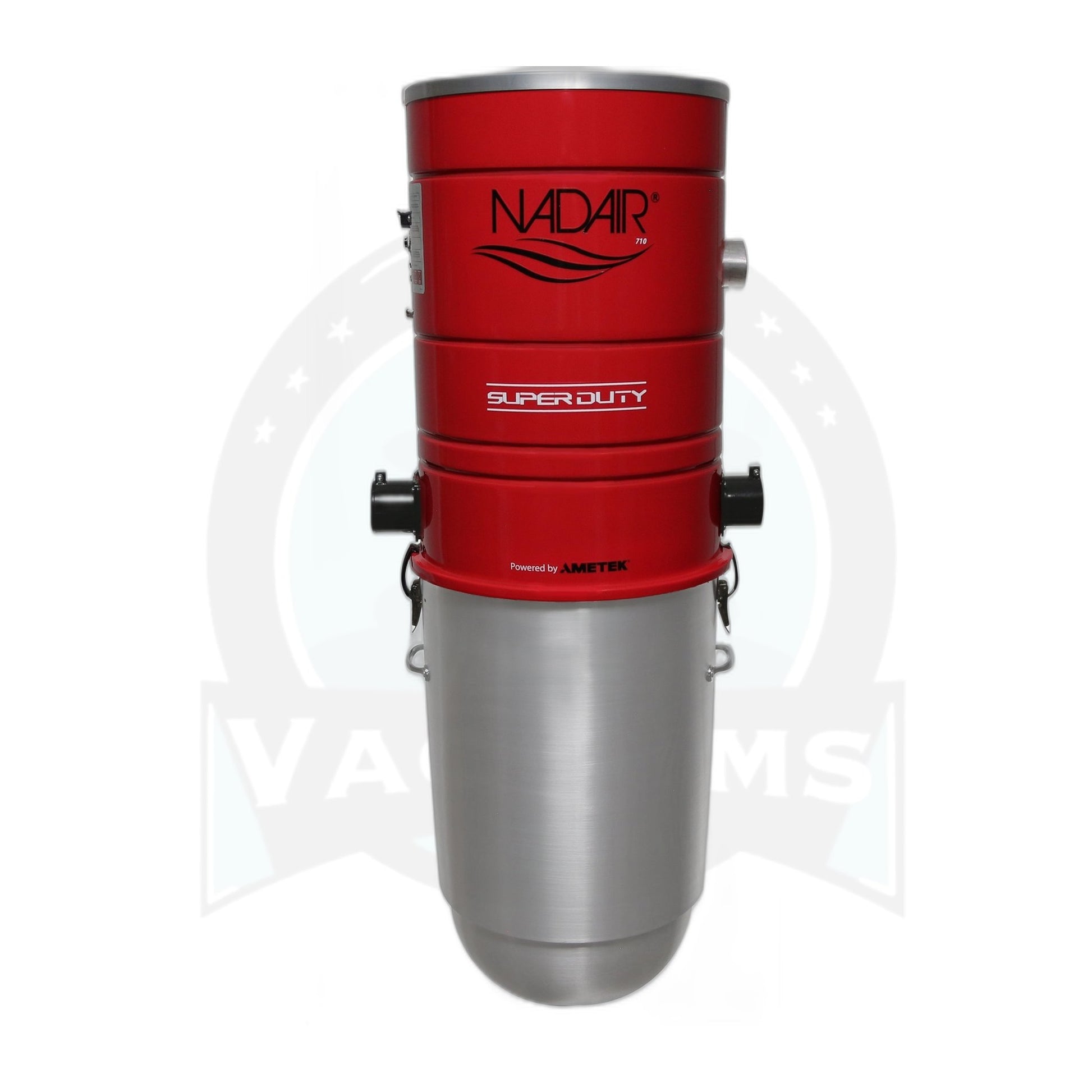

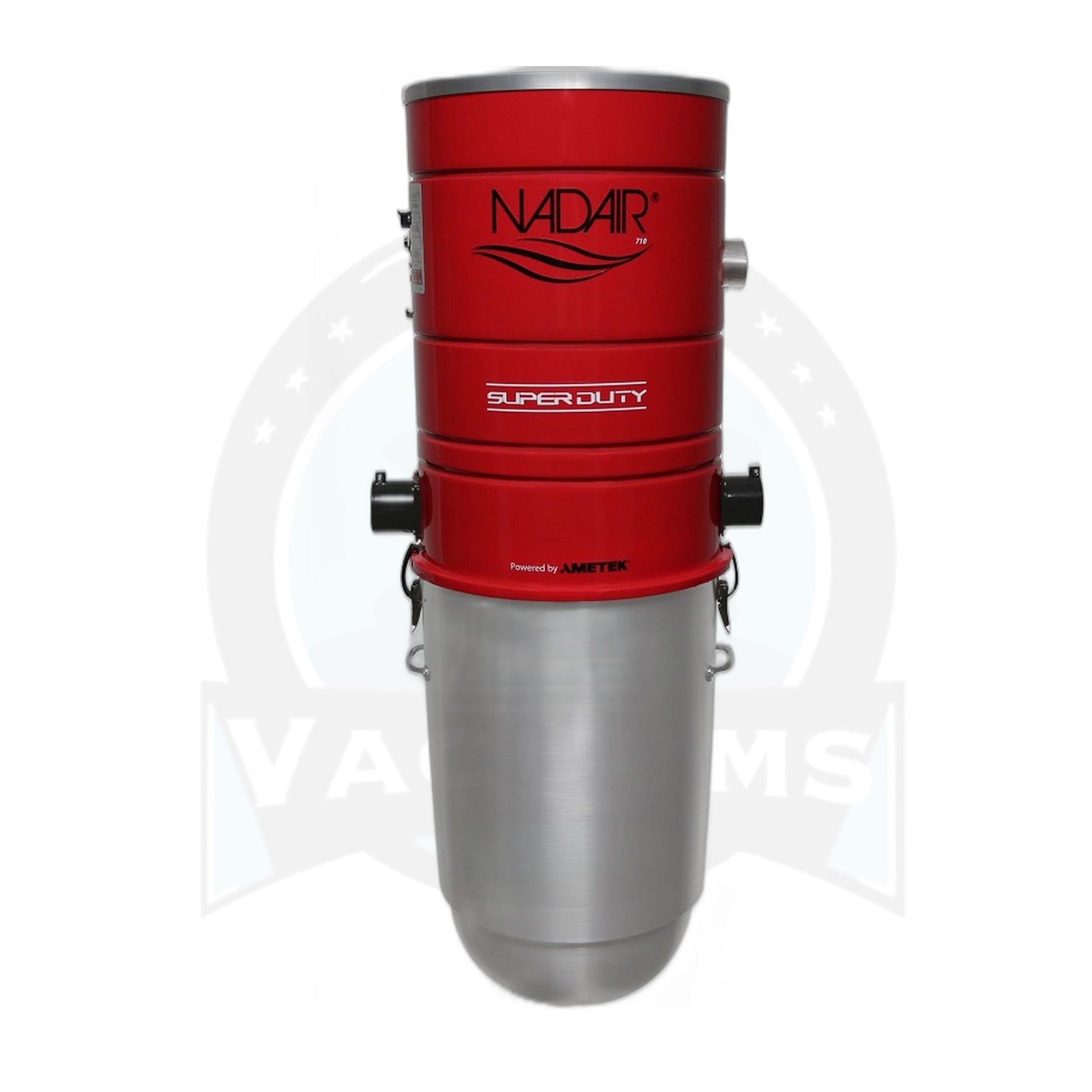

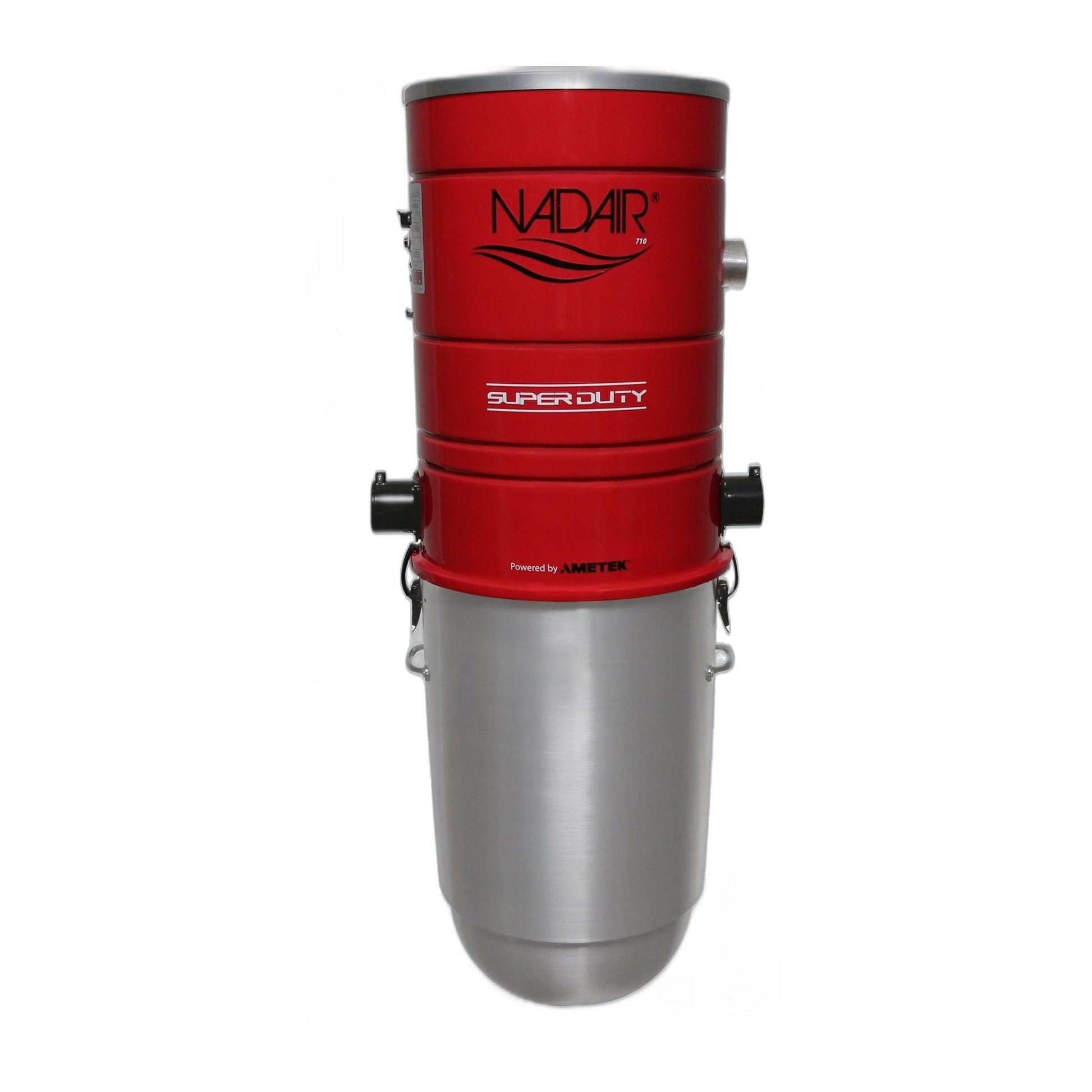

Nadair SD-710-32SF Central Vacuum Power Unit, 710 AW, 12,000 Sq Ft

Rated at 710 air watts and built to cover up to 12,000 square feet, the Nadair SD-710-32SF sits at the top of the coverage range in this lineup. It is a fixed power unit, mounted once in a garage, basement, or utility space, drawing debris through built-in piping to inlet valves placed around the home rather than moving from room to room like a portable machine.

A 12,000 square foot rating points to a home significantly larger than a typical single-family layout, or one where the pipe run has to reach across a wide footprint, multiple wings, or several floors. Air watts, the figure that combines suction and airflow, is what tells you whether a unit can still deliver strong performance at an inlet sitting at the far end of that kind of run, and 710 AW puts real reserve behind the SD-710-32SF for exactly that scenario.

At this scale, pipe layout planning matters as much as the power unit's rating. A long trunk line with several floor transitions and distant branch inlets adds up in resistance, and even a well-rated unit performs best when the installer has kept turns to the minimum the framing allows and sized branch runs sensibly rather than daisy-chaining every inlet off one long trunk.

• Model: Nadair SD-710-32SF
• Rated output: 710 air watts
• Coverage: homes up to 12,000 square feet
• Performance: 137.1 CFM airflow, 151.9-inch water lift, two-stage by-pass motor
• Canister: spun aluminum bin, 8.45 gallons

Confirm your home's finished square footage and pipe layout with your installer before ordering, since a rating this high is meant for genuinely large or multi-wing properties rather than a standard-size home.
