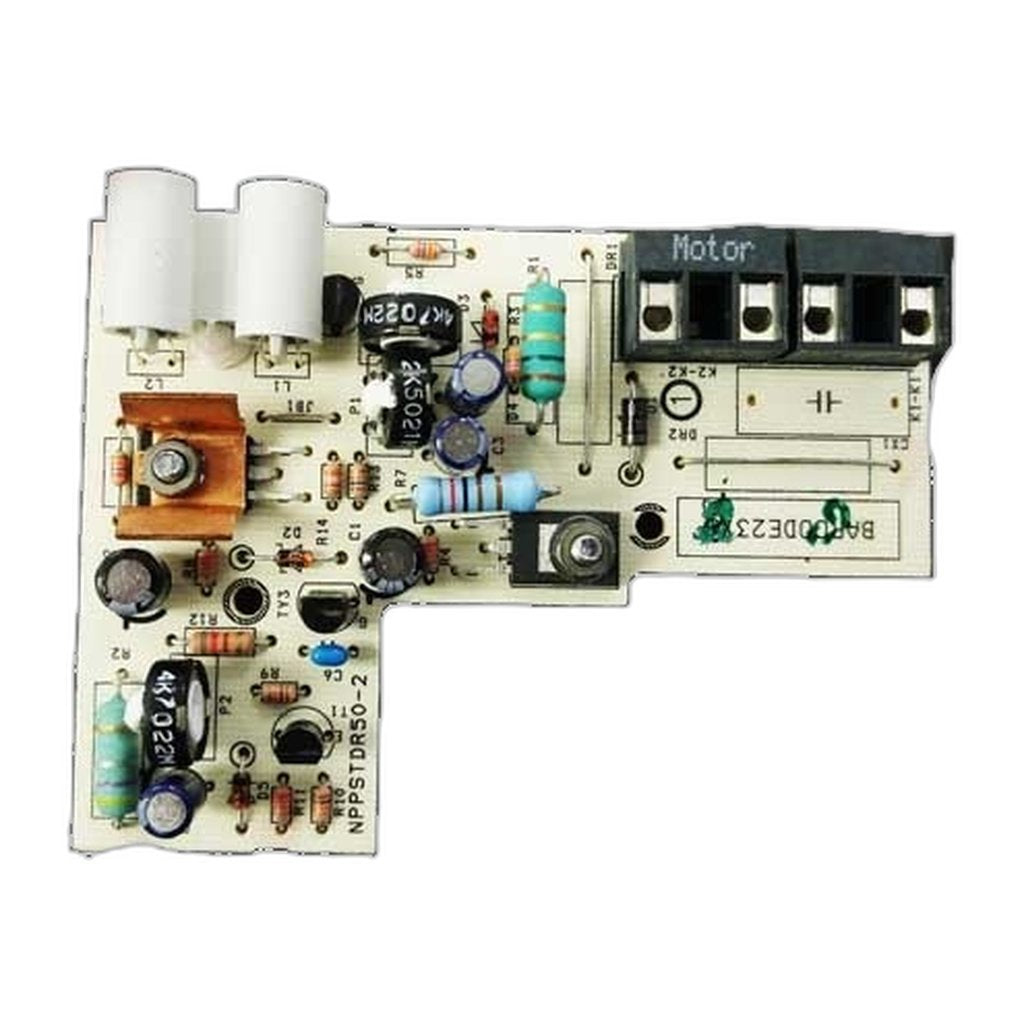

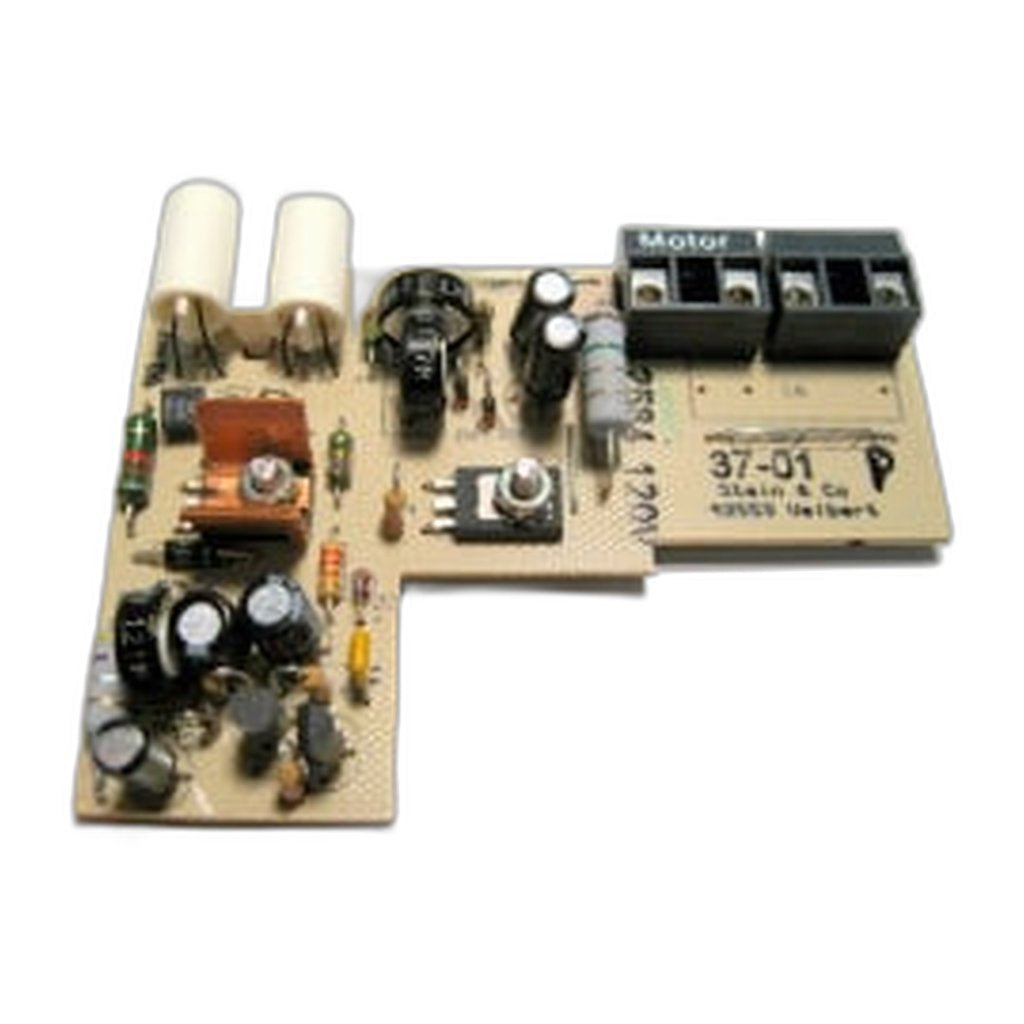

SEBO 120V P.C. Board for ET-C Power Heads

Rated at 120 V for North American supply, 2584ER is the printed circuit board fitted to the SEBO ET-C power head. Voltage is the first thing to confirm on any board order, and this listing covers the 120 V version.

Inside the head the board handles the electrical side of brush operation, so its failures look electrical rather than mechanical: no response at all when the head should come on, operation that comes and goes as the machine is moved or the cable is flexed, or a roller that runs only intermittently while the suction motor carries on exactly as normal. Mechanical complaints such as a slipping belt, a stiff roller or a brush strip worn flat come from somewhere else entirely and should be eliminated first, because they are cheaper and quicker to check.

Before ordering a SEBO ET-C board replacement it is worth working through the switch lever, the micro switch and its support, and the head wiring, since any one of those can produce the same intermittent behaviour. If the motor itself sounds rough or can be rocked in its housing, the mounting is the more likely culprit and carries part number 2566. Label each connector as it comes off so the new board wires back exactly as the old one did, and keep it in its packaging until the moment it goes in. Confirm the 120 V marking on the board that comes out before placing the order, since voltage is the one detail that cannot be corrected after the fact.

• Fits: SEBO ET-C power heads
• Rating: 120 V
• Part number: 2584ER
• Part: P.C. board
• Check first: the switch lever, the micro switch and its support, and the head wiring
• Related numbers: 2566 motor mounting, 2614GS complete wheel

Genuine SEBO board supplied by an authorized dealer. Ships in 2–5 business days.
