ProTeam Switch and Cord Kit - FS6 / FS10 Backpack

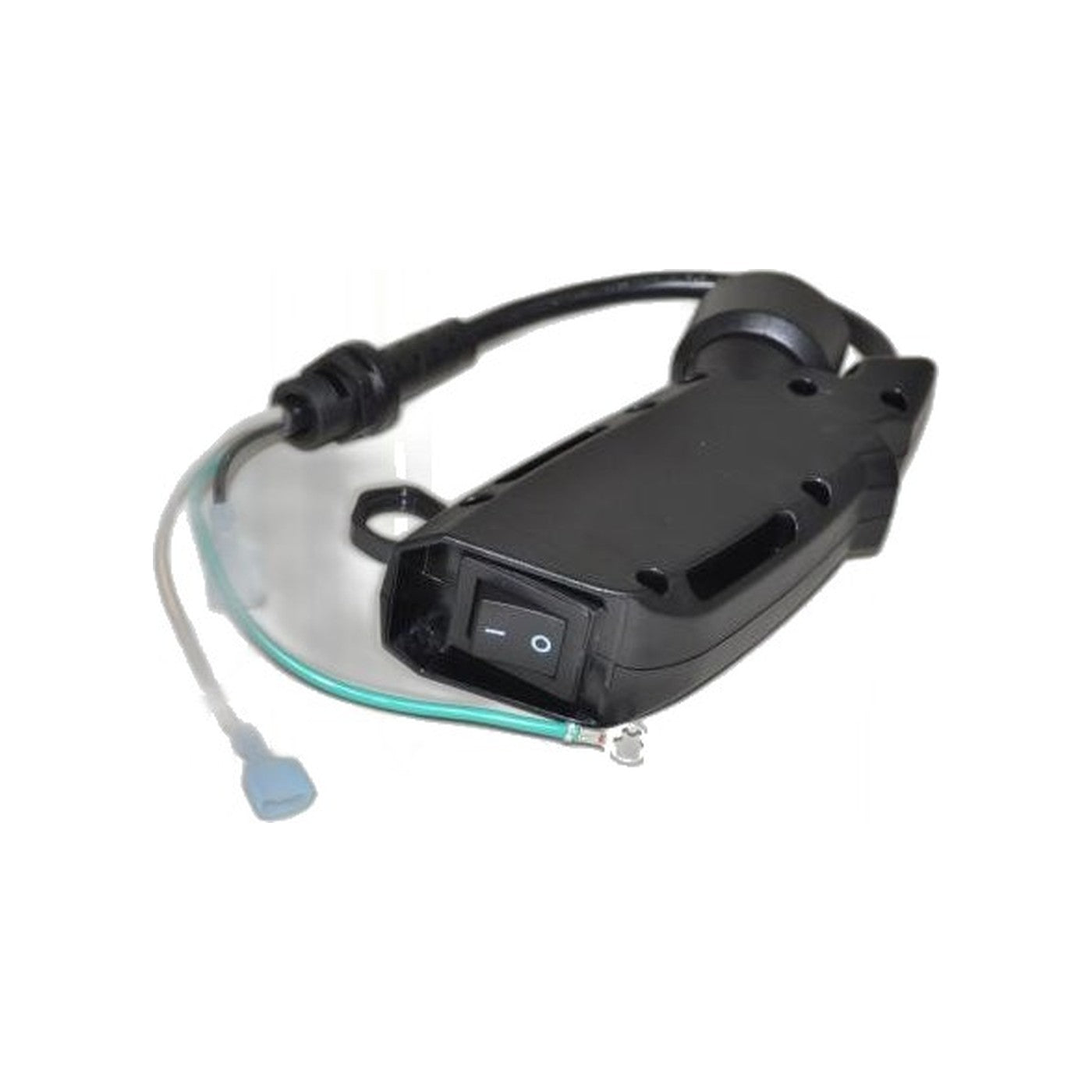

Kit 836225 bundles everything needed to renew the switch on a ProTeam Super Coach Pro or ProVac FS backpack in one purchase: the molded switch box itself, the short jumper cord that runs from the box to the switch, and the full-length power cord that plugs into the wall. Buying the kit also means the cord and switch box are matched from the start, rather than pairing a new cord with a switch box that has already seen years of service.

It is built for the Super Coach Pro 6, Super Coach Pro 10 (including the unit cataloged as 1073120), and the ProVac FS 6 and the ProVac FS 10 as well. All four machines share the same switch box footprint, which is why one kit number covers the whole group.

There is a second version of this kit worth knowing about before ordering. Machines set up to run a corded power nozzle have a receptacle molded into the switch box for that purpose, and those need kit 836225-1 instead of the plain version listed here. Mount the receptacle-free box on a power-nozzle machine and the nozzle simply has nowhere to plug in, a mistake that only becomes obvious after the box is already installed.

• Part: 836225, switch box, switch cord, and power cord kit, no receptacle
• Fits: ProTeam Super Coach Pro 6, Super Coach Pro 10 (1073120), ProVac FS 6, ProVac FS 10
• Replace when: the switch no longer holds a reliable contact or the cord shows damage at any point along its length; on an older machine both often need attention together
• Check first: a switch box with a built-in power-nozzle outlet needs kit 836225-1 instead
