SEBO Rear Bottom Plate for ...
$14.00
Product details

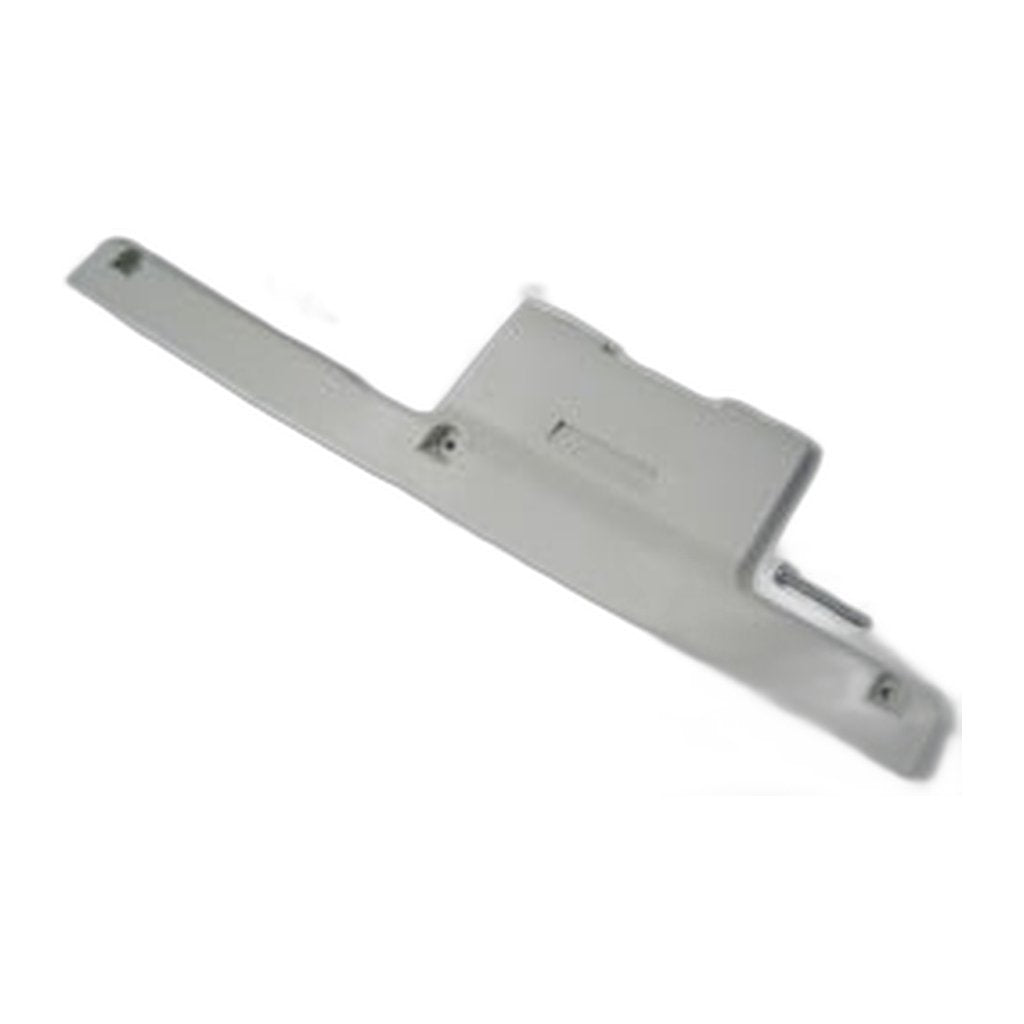

Grit left in a stripe behind the machine on the back stroke usually means the rear of the nozzle is no longer sitting down properly. Part 50311HGER is the light gray rear bottom plate cut for the SEBO 350 Mechanical, which takes a panel of its own rather than sharing one across the range.
This panel finishes the underside at the back of the power head and keeps the trailing lip against the floor, so air is drawn through the nozzle rather than under it. Wear here is slow, since the plate simply thins against carpet and hard flooring until the edge has rounded off, and that makes it easy to overlook until pickup has already suffered. Cracks around the fixing points do the same thing faster. Worth a look every time the machine is tipped over for brush roll work.
The rest of the underside on this machine is also model-specific, so note the numbers while it is upside down: 50434HGER is the front bottom plate, 50433HGER the brush roller release, 50444HGER the chassis and 50431GSAM the power head cover, with 2046 as the brush roller strip. Shared across the mechanical range are bearing blocks 50355HG and 50356HG, brush strip cover 50352HG, and belts 5110 and 5379.
- Part number: 50311HGER
- Fits: SEBO 350 Mechanical
- Finish: light gray
- Job: seals and levels the rear of the nozzle
- Symptom: debris left behind on the back stroke, or a base that rocks on the floor
- Related part numbers: 50434HGER front bottom plate, 50433HGER brush roller release, 2046 brush roller strip, 50352HG brush strip cover
Genuine SEBO part from an authorized dealer. Searched for as a SEBO 350 Mechanical sole plate, rear base plate, or bottom plate replacement in light gray. Ships in 2-5 business days.
