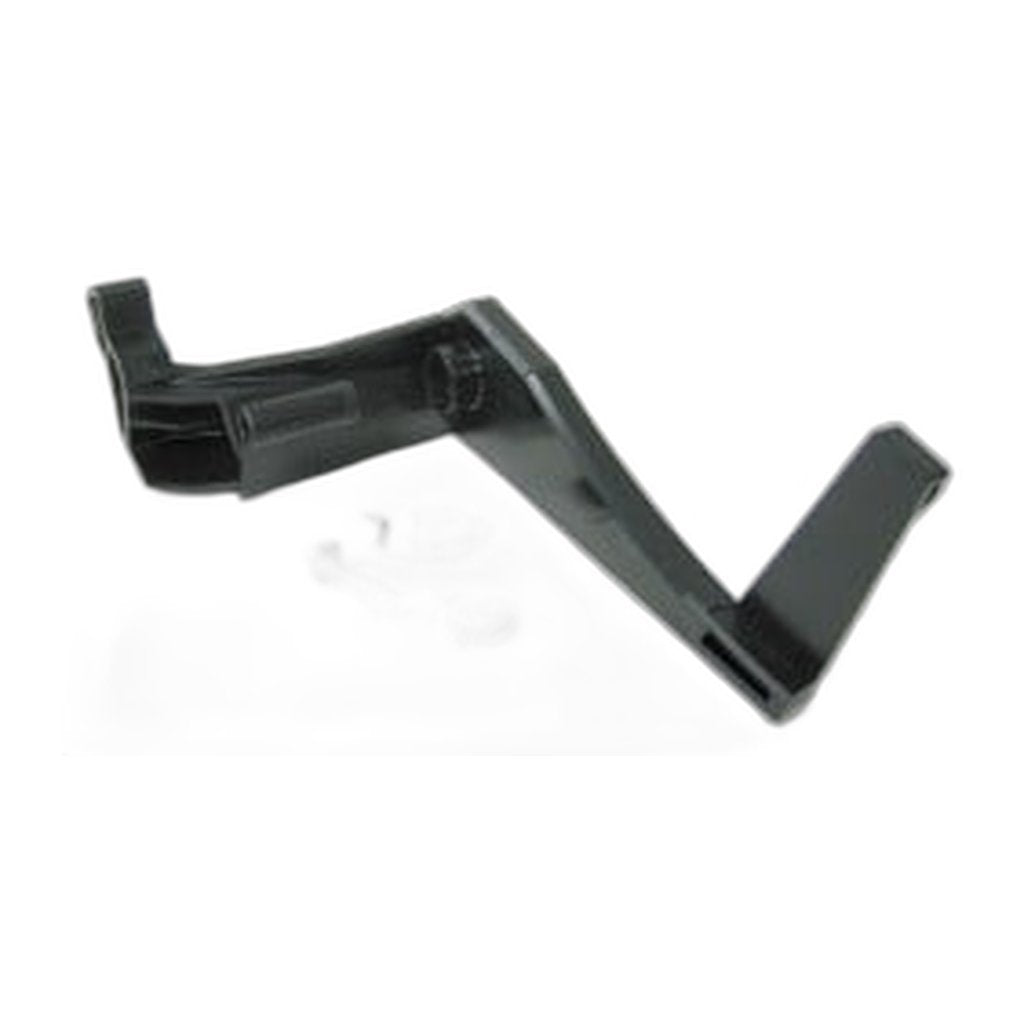

SEBO Cord Rewind Lever Kit ...
$14.00
Product details
Items 10 through 14 of the AIRBELT D sheet describe a single mechanism spread over five numbers, and 8036ER is the piece a user's hand actually meets. It is the cord rewind lever used on the D1 Turbo and the D4 Premium AIRBELT canisters, drawn at item 13 and boxed as a kit: the lever, the mounting screw and washer that hold it, and spring 8098ER.
Push the lever and it releases the catch inside the cord rewind unit that SEBO draws at item 10; let go and the spring at item 12 returns it clear so the reel can lock again. Two things wear here. The pivot boss cracks, and the spring goes soft. From the outside that reads as a control which feels mushy and sunken, holds itself in the housing, or stops freeing the reel altogether, so the flex has to be wound in by hand. Renewing lever, spring and fixings in one kit removes any argument about which of the three had actually failed.
Rule the reel in or out first. Where the lever moves crisply and the catch still refuses to let go, the fault has moved back into the rewind unit itself; where the lever feels dead under the finger, this kit is the repair.
- Order code: 8036ER
- What is in the kit: spring 8098ER, the lever, its mounting screw and its washer
- Machines: AIRBELT D1 Turbo, AIRBELT D4 Premium
- Drawing reference: AIRBELT D sheet, item 13
- Works against: cord rewind unit 665613E, item 10
- Contained in: complete motor cover 8085ER, item 14
- Spring on its own: 8098ER, item 12
- Change it when: the lever stays sunk, feels slack, or will not trip the reel
Take the plug out and lift the motor cover to reach the pivot post, then reassemble in the sequence the parts came off. Searches for a SEBO cord rewind lever, an AIRBELT D1 cord release, or a D4 rewind lever with spring all arrive at this kit. Genuine SEBO, ordered through an authorized dealership. Ships in 2-5 business days.
