SEBO Screw AM4 x 16 (DIN 79...
$6.99
Product details

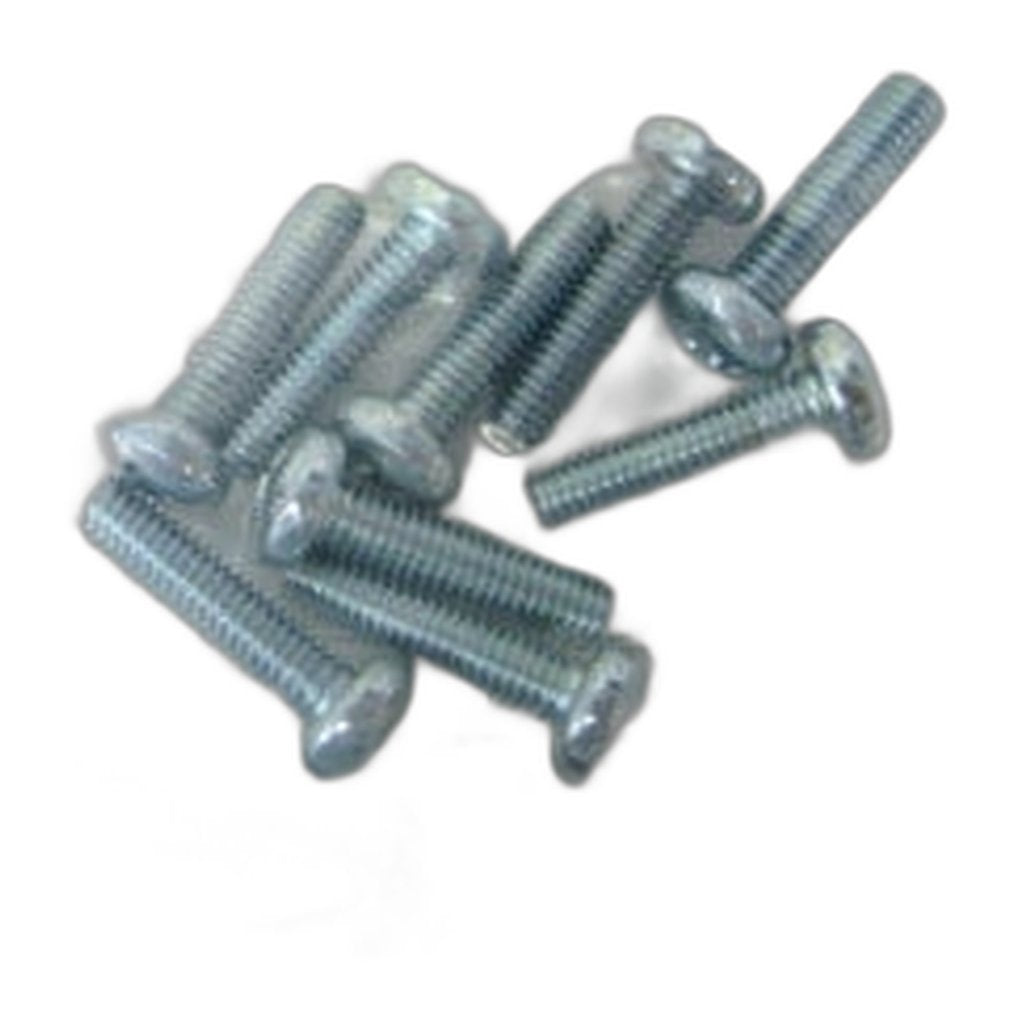

Bagged in tens, part 01010ER is the M4 x 16 pan head screw SEBO specifies through the ESSENTIAL G range and the 300 and 350 Mechanical uprights.
Commercial G series machines get stripped down far more often than a domestic upright ever will, and the M4 hardware is usually first to show it. Threads gall, heads round out under a worn driver, and a fastener that no longer holds torque leaves a cover free to buzz against the body. Ten in a bag covers a full rebuild with screws that all bite properly the first time, which is a different proposition from refitting eight originals and hoping the two doubtful ones hold.
The specification follows DIN 7985: a cross-recessed pan head on a metric M4 thread, 16 mm long, shown at item 178 on the ESSENTIAL G4/G5 diagram and item 146 on the 300/350 Mechanical diagram. Because the head is flat underneath rather than tapered, it clamps against the face of the part it holds and does not try to spread the hole it sits in. That is the reason to replace like for like instead of reaching for whatever M4 screw is in the drawer.
- Fits: SEBO ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4, ESSENTIAL G5, 300 Mechanical and 350 Mechanical
- Size: M4 x 16 mm, DIN 7985 pan head
- Quantity: 10 screws, part 01010ER
- Single screw: part 01010
- Diagram positions: ESSENTIAL G4/G5 item 178, 300/350 item 146
A note on driver choice. The cross recess on an M4 pan head is shallower than it looks, and a bit that is slightly undersized will chew it on the first tight one. Matching the driver to the recess keeps the screws reusable through several services, which is the point of buying decent hardware in the first place.
Order the single screw as 01010 when only one fixing needs replacing.
Supplied genuine by an authorized SEBO dealer. Ships in 2–5 business days.
