SEBO Axle Bracket for SOFTCASE CE12

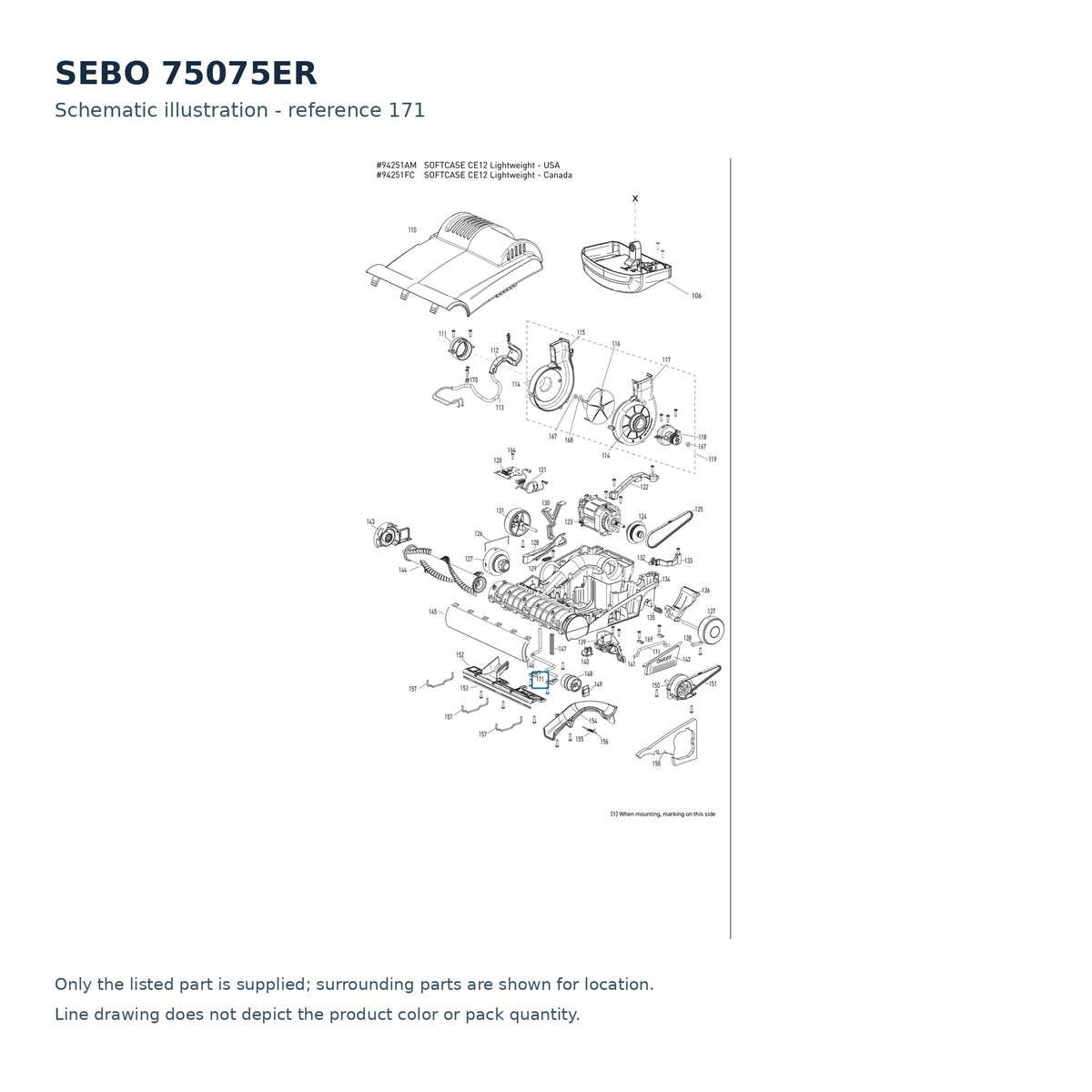

Part 75075ER is the axle bracket SEBO fits to the SOFTCASE CE12, drawn at position 171 on the machine's own parts sheet. Its job is to hold the axle steady within the base moulding and keep the wheel perpendicular to the floor, so the vacuum tracks straight along a carpet instead of pulling towards one side as it is pushed.

Position 171 places this bracket right at the tail of the diagram, among the small fixings SEBO groups for the base: an M6 nut at 167, a DIN 9021 washer at 168, a plastic bracket at 169 and a strain relief at 170. One detail from that group is worth knowing before anything down there is disturbed, because the nut listed at position 167 is a left-hand thread and will not release the way an ordinary fastener does.

The complaints that lead an owner to this number are usually mechanical rather than dramatic. Side-to-side play felt at the wheel, a rear end that rolls unevenly on a hard floor, a rattle from the base under load, or a wheel that visibly sits out of line. Once the bracket has cracked around a mounting point the axle is free to wander, and tightening the surrounding screws changes nothing. Fitting the factory moulding puts the axle back where the design intends it, with no shimming or filing needed to make it sit.

• Part number: 75075ER
• Fits: SEBO SOFTCASE CE12 upright vacuum
• Diagram position: 171 on the SOFTCASE CE12 parts list
• Function: carries the axle in the base moulding, holding the wheel true
• Supplied: one bracket, genuine SEBO
• Neighbouring positions: plastic bracket at 169, strain relief at 170

Anyone hunting a SEBO axle bracket, a CE12 wheel axle mount or SOFTCASE CE12 base housing parts is looking for 75075ER. Ships in 2-5 business days.
