SEBO Height Adjustment Slider for SOFTCASE CE12

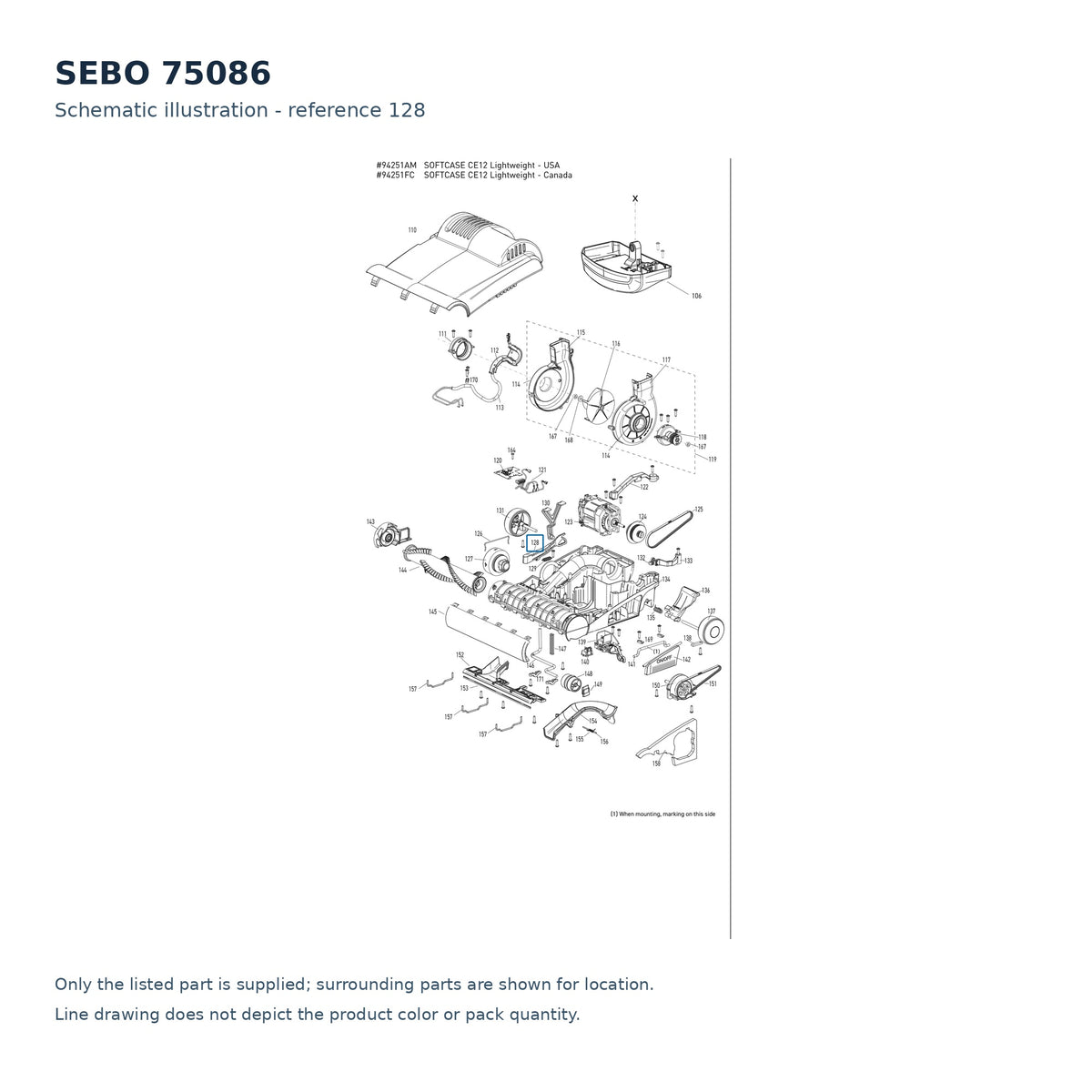

Turning the brush height selector on a SOFTCASE CE12 moves a moulded slider, and that slider is what carries the movement into the nozzle. Part 75086 is the slider itself. SEBO draws it at position 128 in the exploded parts list for the machine, in the same run of numbers as the support lever 75122 at position 130 and the pile adjustment axle 75095 at position 146.

A worn slider gives itself away through the control rather than through noise. The orange brush height selector, part number 75076OR, still turns and still feels connected to something, but the nozzle stops holding whatever setting it was given, so the machine either digs into a low pile or rides high over a deep one. Cracks across a moulded arm and rounding on the bearing faces are the two things to look for once the base is open. Reaching this part means opening the base regardless, so most technicians fit it during a belt or bearing block job rather than making a separate trip for it.

• Part number: 75086, height adjustment slider
• Machine: the SEBO CE12 Softcase upright, the only machine SEBO lists this slider against
• Diagram position: 128 on the SOFTCASE CE12 parts list
• Construction: moulded plastic, supplied as a single piece
• Sold: individually
• Other numbers in the same adjustment group: 75076OR brush height selector, 75121GS pile adjustment wheel, 75095 pile adjustment axle at position 146, 5155GS rubbing plate for that axle, 2849 pile wheel axle clamp at position 138, 75122 support lever at position 130

Anyone searching for a SEBO height adjustment slider, a CE12 Softcase brush height repair or simply for part 75086 has arrived at the right component. Genuine SEBO spare, sold by an authorized dealer and quoted as 75086 when ordering. Ships within 2-5 business days.
