SEBO Pile Adjustment Spring for SOFTCASE CE12

Pile adjustment needs something to work against. Without spring tension behind it, the mechanism on a SOFTCASE CE12 has no defined resting position, the brush height wanders under load, and the control feels slack in the hand instead of stepping cleanly from one setting to the next. Part 75090 is SEBO's pile adjustment spring for the machine.

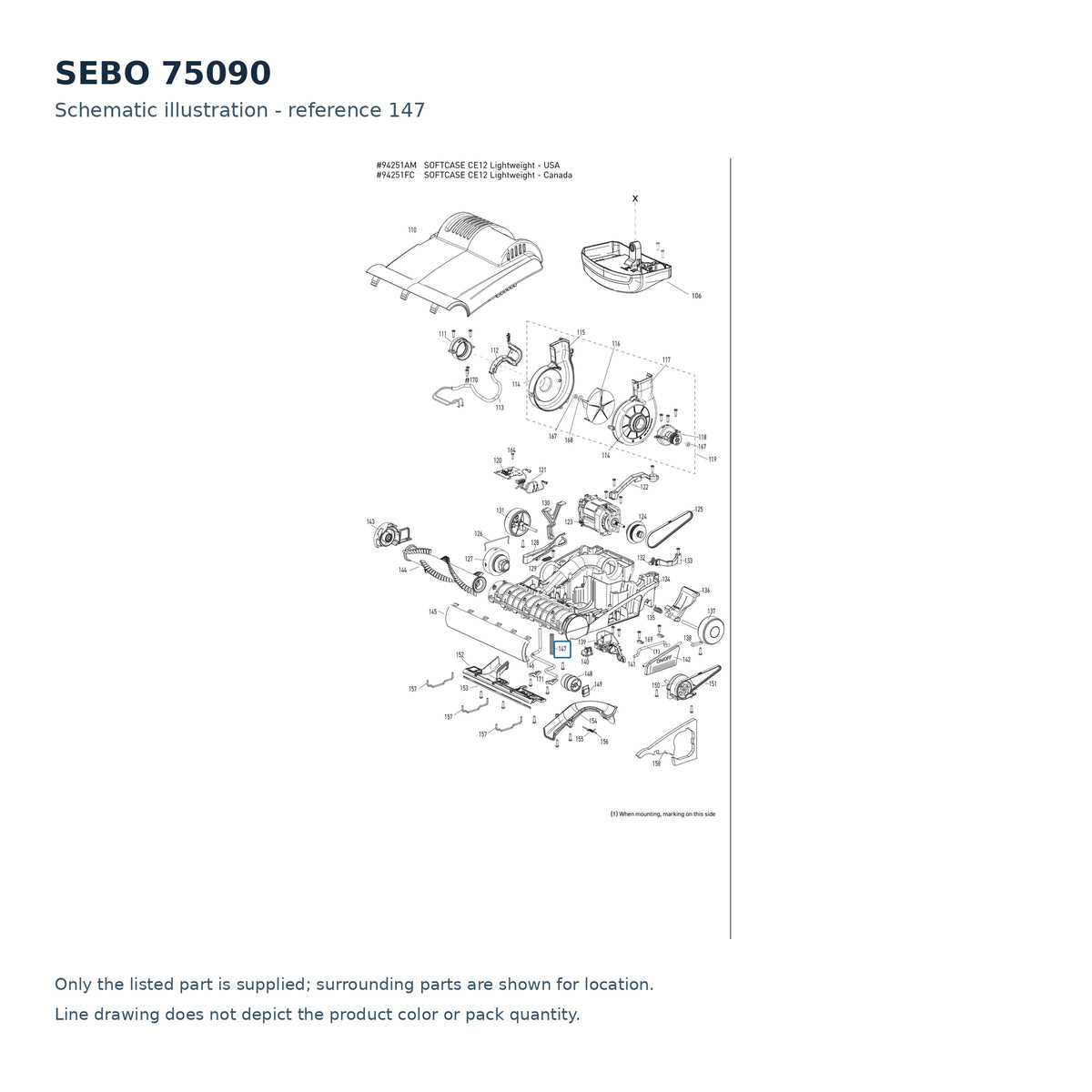

SEBO's parts list for the CE12 numbers the hardware around this spring rather than the spring itself, so it is ordered by part number rather than by a diagram callout. The components it works alongside are all drawn: the height adjustment slider 75086 at position 128, a pile adjustment spring supplied under number 4019 at position 129, the support lever 75122 at position 130 and the pile adjustment axle 75095 at position 146. Two spring numbers exist around this mechanism, so match the number your parts list calls for rather than assuming they are the same item.

• Order as: 75090, the pile adjustment spring
• Machine: the SEBO CE12 Softcase upright
• Function: supplies the working tension in the brush height, or pile, adjustment
• Sold: each
• Related numbers: 4019 spring at position 129, 75086 slider at position 128, 75121GS pile adjustment wheel, 75095 axle at position 146, 5155GS rubbing plate for the pile adjustment axle, 2849 pile wheel axle clamp at position 138, 75076OR brush height selector

Springs are the parts most often left in place during a nozzle rebuild, and the usual result is that the machine goes back together with the same vague adjustment it came in with. Fitting a fresh SEBO pile adjustment spring puts back the working tension the adjuster needs to bite against. Genuine SEBO part, quoted as 75090. Ships within 2-5 business days.
