SEBO Switching Rod for SOFTCASE CE12

Rods fail by bending, and a linkage that has bent no longer delivers its full travel to the far end. Part 75094 is the switching rod SEBO supplies for the SOFTCASE CE12, the slim length of metal that carries movement across the machine into its switching arrangement.

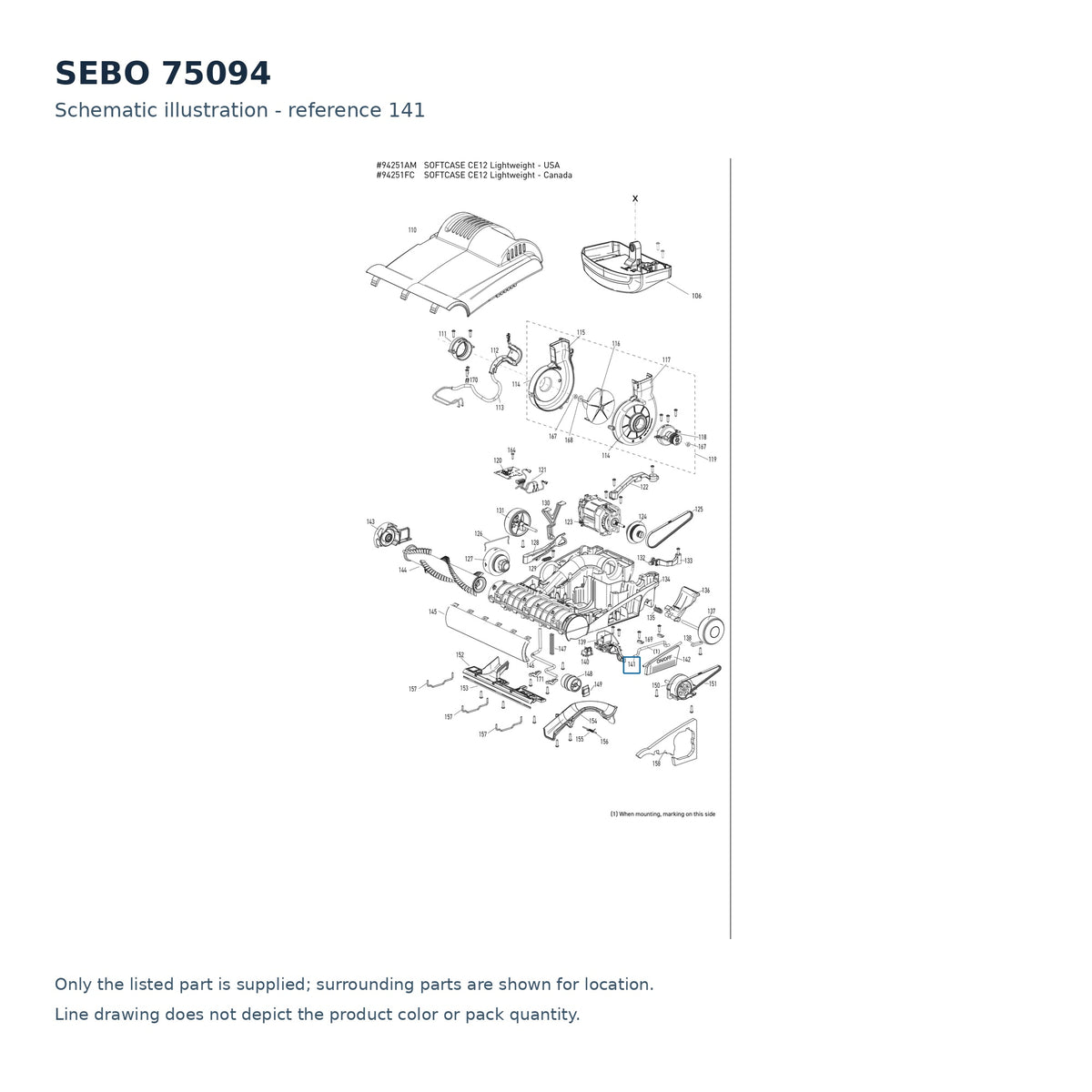

Because a rod either transmits movement or it does not, the fault it causes tends to look worse than it is. Everything else in the circuit tests correctly, the machine simply refuses to change state on demand, and the action at the operator's end feels dead or short. SEBO numbers the rest of that switching arrangement in the CE12 parts list and catalogue: the switching unit 75124ER, the magnet support supplied assembled as 75096ER at position 132, the magnet lever 75079ER, the complete switch 05112ER at position 140, the orange on and off button 75061OR, and the 120 volt printed circuit board 75126ER at position 120. The rod itself is ordered by part number rather than by a diagram callout.

• Order as: 75094, the switching rod
• Machine: the SEBO CE12 Softcase upright
• Type: single-piece linkage rod, supplied loose
• Replace when: the rod is bent, fractured or has lost travel at either end
• Sold: each
• Related switching numbers: 75124ER switching unit, 75096ER magnet support at position 132, 75079ER magnet lever, 05112ER switch at position 140, 75061OR on and off button

A factory rod arrives at the designed length with its ends formed correctly, and on this linkage both matter more than on any other loose component down there, because a few millimetres of lost travel decides whether the switch acts at all. Genuine SEBO component, quoted as 75094. Ships within 2-5 business days.
