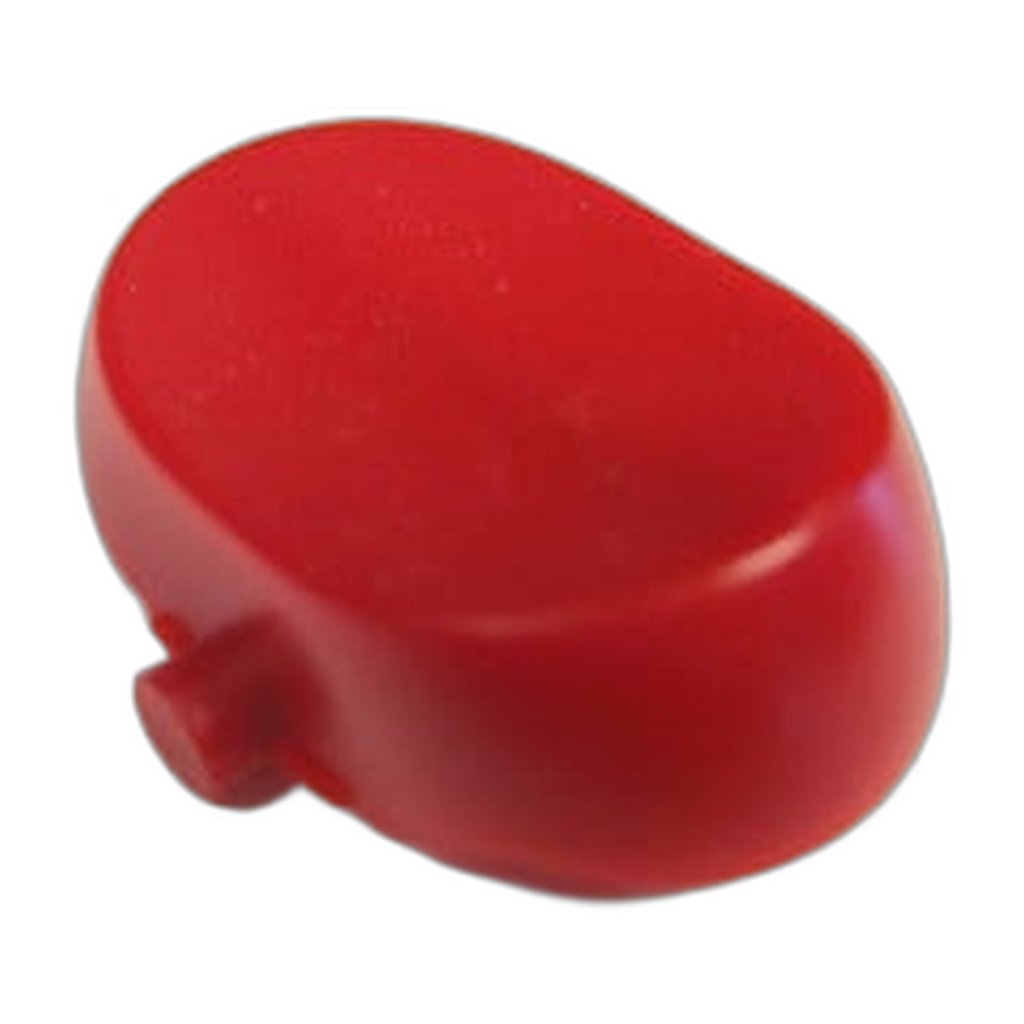

SEBO Switch Cap for AUTOMATIC X4 and X4 Boost — Red

Red is the correct cap colour for the AUTOMATIC X4 and X4 Boost that left the factory in that finish, and 5160DR is the moulding that goes back over the power rocker. SEBO's parts drawings list the dark red cap at position 6, alongside the other colours of the same part, so the number you order is decided by the machine in front of you rather than by the model name alone.

Caps crack around their retaining lugs after years of being pressed with a shoe. Once one splits, the switch underneath is open to grit and lint and the action starts to feel vague — a press that used to click now needs a second push. A new cap closes the opening and gives back a definite action, and it goes on without tools. If the cap will not stay seated after fitting, the fault is the surround it clips into rather than the cap itself. The cap lifts off with a fingernail under one edge, so nothing is unscrewed and no wiring is disturbed to change one.

• Part number: 5160DR
• Colour: red
• Diagram position: 6, listed as the dark red switch cap
• Sold as: the cap alone, one per machine
• Fits: SEBO AUTOMATIC X4 and AUTOMATIC X4 Boost
• Surround it clips into: 5161GS in gray black; 5161SW in black also fits the AUTOMATIC X4
• Matching red trim for the same machines: cable hook 5703DR, carrying handle 5721DR, bag housing 5755DR, exhaust filter cover 5711DR, latch release cover 5707DR, front cover 50751SE

Searches for a SEBO red switch cap, an X4 power button cover or a cracked on/off cap all end at this part. Match the finish of your own machine before ordering: SEBO moulds the same cap in several colours, each under its own number. Genuine SEBO moulding in the factory finish, authorized dealer stock, ships in 2–5 business days.
