SEBO Complete Swivel Neck A...
$32.00
Product details

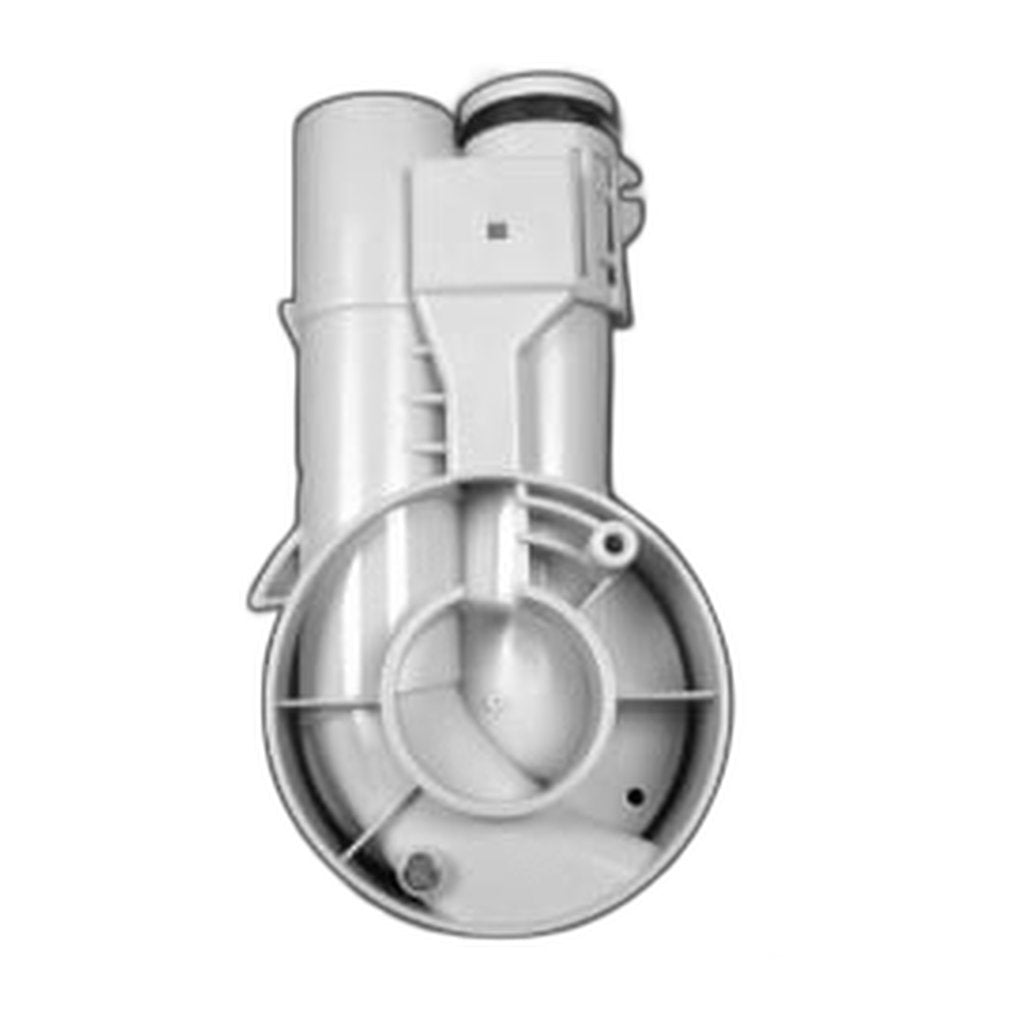

When the neck of an upright breaks, piecemeal repair rarely holds for long. Part 52023ER is the whole swivel neck assembly for the AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8 — the entire joint between body and power head — supplied built up and ready to fit. SEBO shows it at position 105 on the AUTOMATIC X7/X8 exploded diagram, sitting between the two supports drawn either side of it.
That joint takes every twist the user puts into the handle, plus the weight of the body each time the machine is reclined, which is why it is the part that eventually gives on a well-used vacuum. Wear is spread across all of its mating surfaces rather than concentrated in one, so replacing a single support often just moves the play somewhere else in the same joint. Choosing the full assembly means every pivot face is new to its neighbour, and that is what makes the steering feel tight again afterwards instead of merely tighter.
- Part number: 52023ER
- Supplied: complete assembly, ready to fit
- Job: the pivot between the upright body and the power head
- Diagram position: 105 on the AUTOMATIC X7/X8 parts breakdown
- Fits: AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8
- Related part numbers: 52018ER, the right-hand support with reed switch 52103, at position 103; 52020ER, the left-hand support at position 106; 52199ER, the swivel neck cable set at position 116
Go the assembly route when the handle has developed play in more than one direction, or when a previous single-part repair has not lasted. Searches such as SEBO swivel neck assembly, AUTOMATIC X7 neck replacement and X8 handle joint repair all point to 52023ER.
Ships in 2-5 business days from an authorized SEBO dealer.
