SEBO Right-Hand Swivel Neck...
$20.00
Product details

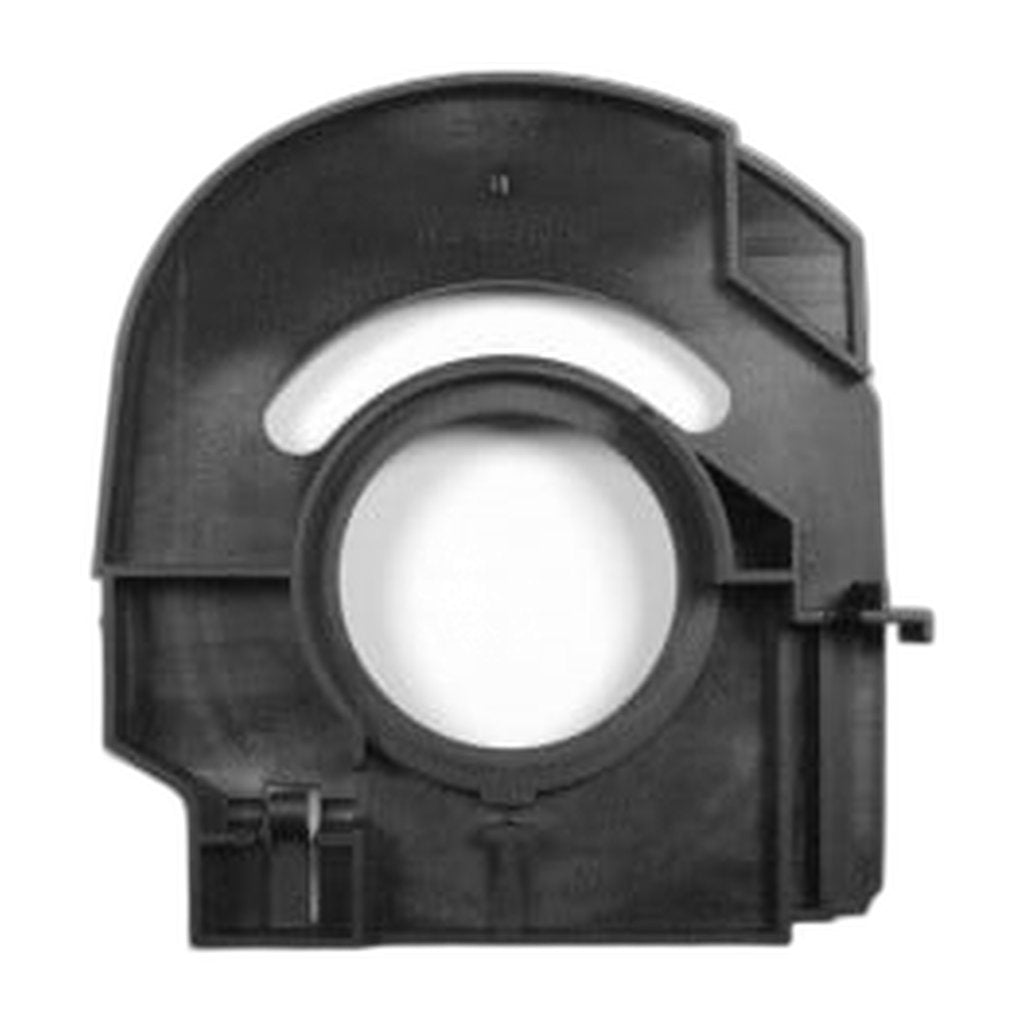

Supplied with reed switch 52103 already installed, 52018ER is the right side of the swivel neck support used on the AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8. It does two jobs at once. Structurally it carries the pivot load on that side of the neck. Electrically it holds the magnetic switch that tells the machine whether the handle is standing upright or has been laid back for cleaning.
The two failures show up differently. A hairline crack around the boss makes the neck feel loose in the hand and lets the body lean a fraction further on one side than the other. A tired or displaced reed switch leaves the machine unsure of handle position, so it behaves as though the handle were parked when it is not. SEBO draws the support at position 103 on the AUTOMATIC X7/X8 breakdown, with the reed switch itself catalogued separately at position 117 as part 52103 — but with the switch pre-fitted here, both faults are settled in one repair and there is no second component to order or align.
- Part number: 52018ER
- Side: right hand
- Includes: reed switch 52103, position 117 on the same diagram
- Diagram position: 103 on the AUTOMATIC X7/X8 parts breakdown
- Fits: AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8
- Related part numbers: 52020ER, the left-hand support at position 106; 52023ER, the complete swivel neck assembly at position 105
Searches such as SEBO neck support 52018ER, right-side AUTOMATIC X7 reed switch and X8 handle position sensor all lead to this part. Where the left side has cracked as well, the complete neck assembly is usually the better call than two separate supports. Genuine SEBO stock from an authorized dealer; ships in 2-5 business days.
