Tornado Jumbo Vac Air-Power...
$3,899.00
Product details

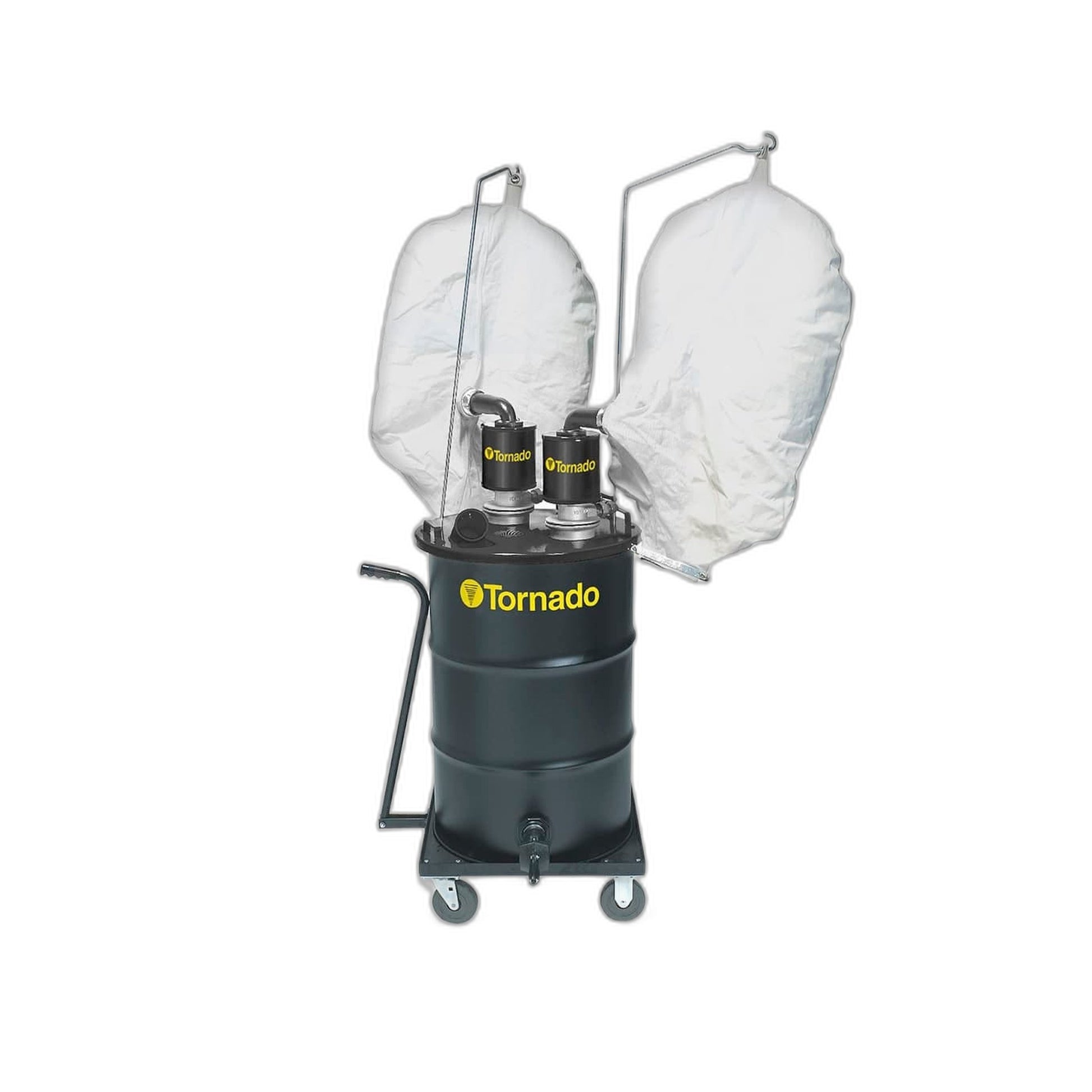

Two air-driven venturi powerheads mount over one 55 gallon steel drum on Tornado's Jumbo Vac 95962, the dual-head build of the air-operated external filter line. Neither head runs on electricity: both work from a shop compressed air supply, which is why plants place this unit in wash bays, paint areas, and other spots where a motor and cord would rather stay out. Tornado rates the pair at 160 CFM with 239 inches of water lift, and because a venturi head has no moving parts the unit runs spark-free.
Running two heads at once means two operators can pull from the same drum, or one operator can move more air through a single hose run than a lone head delivers. External filtration puts the media outside the drum on each head, and Tornado lists the two poly filters at 3,748 square inches of combined area, so a filter check does not mean opening the barrel underneath. The drum ships with the unit on a steel dolly, so there is no separate barrel to source before it goes to work.
- Power source: shop compressed air, 25 HP compressor called for
- Powerheads: two venturi, 160 CFM, 239 inch water lift
- Drum: 55 gallon steel, supplied with a steel dolly
- Filtration: two external poly filters, 3,748 square inches total
- Reach: 25 feet vertical lift, 50 feet horizontal
- Recovers: oils, sludge, powders, sand, metal chips
Confirm your facility's compressor can support the 25 HP figure Tornado specifies before ordering the dual over a single-head build, since an undersized supply leaves both heads pulling weaker than either would on its own line. Plan on servicing two filter positions rather than one, and watch both across a shift because a clogged filter on either head drags the whole unit's airflow down. Jets in 3/16, 7/32 and 1/4 inch sizes let the setup be matched to lighter or heavier debris. Ships to you in 2-5 business days.
