Turbocat DB8000 Bagged Central Vacuum Power Unit, 12,000 Sq Ft

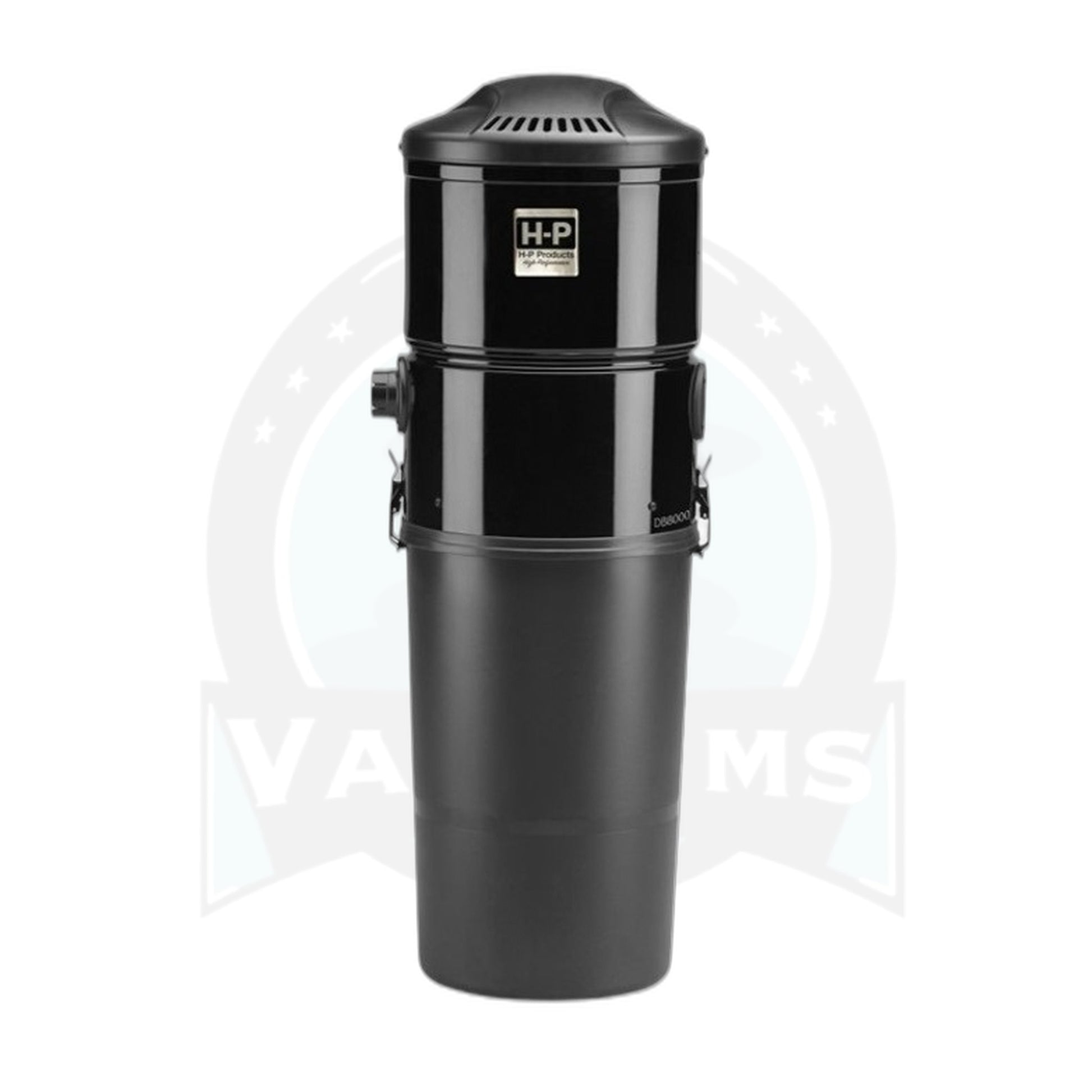

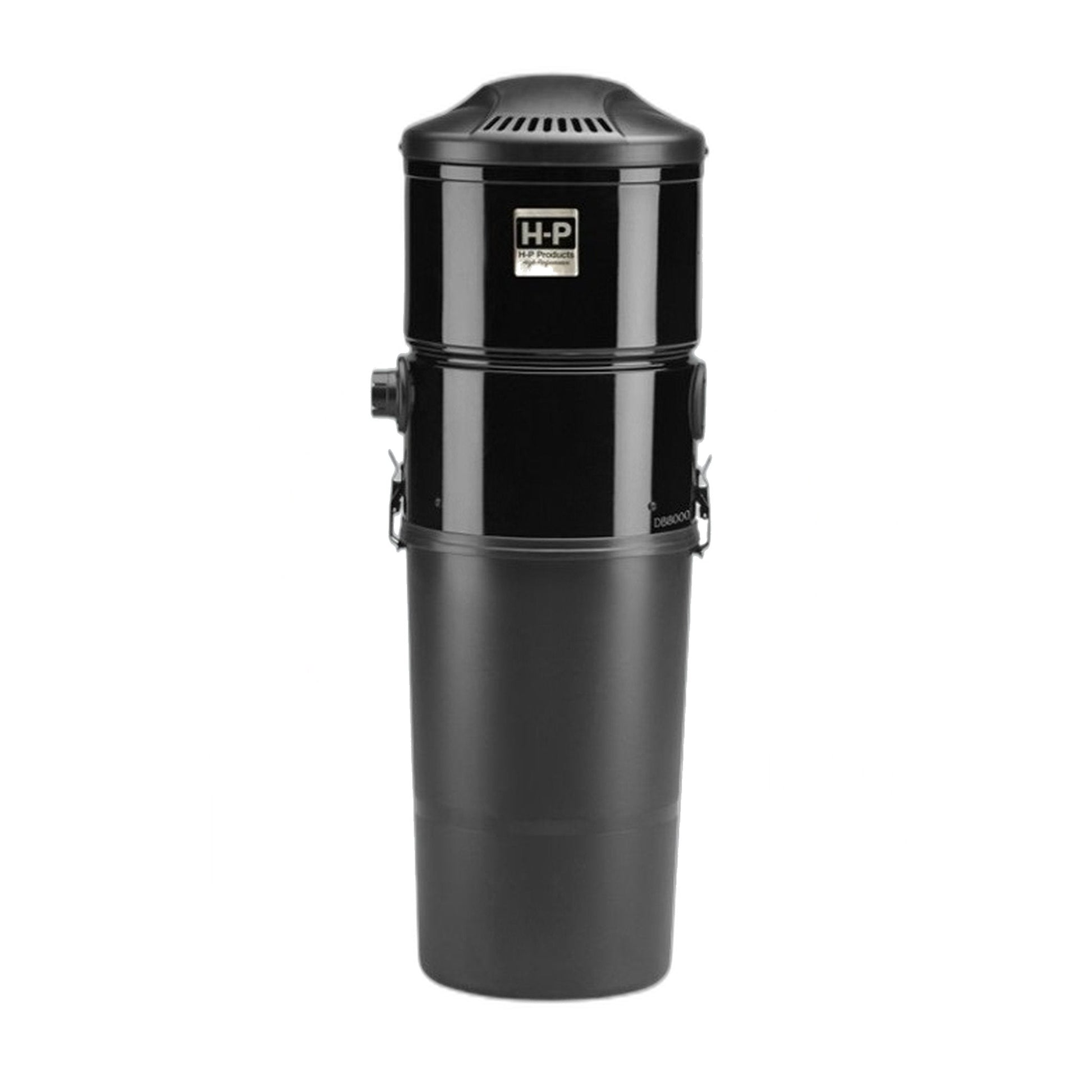

Part number DB8000 is Turbocat's bagged central vacuum power unit rated for whole-home coverage up to 12,000 square feet. Bagged systems route incoming debris directly into a disposable bag inside the canister, so routine maintenance is a bag swap rather than a bin to empty and wash.

Larger-coverage power units like this one are typically running longer pipe branches and, in bigger houses, more frequent use across more inlets than a unit sized for a smaller home. The DB8000 answers that with a 6-gallon bag, so changes stay infrequent even with a whole house feeding one canister, and the bags themselves are triple-layer, rated to trap particles down to 0.3 microns.

Mounting location affects more than convenience: a power unit installed too far from the point of use adds pipe length that costs suction before air ever reaches the first inlet, so placing the DB8000 as centrally as the mechanical space allows is worth the extra planning at rough-in. A garage or basement near the middle of the home's footprint is usually a better choice than a far corner, even if a corner looks tidier on paper.

• Part: Turbocat DB8000
• Performance: 707 max air watts, 136 CFM, 151-inch waterlift
• Electrical: 120V, 14.7 max amps
• Coverage: homes up to 12,000 sq ft, per manufacturer rating
• Filtration: 6-gallon triple-layer disposable bags rated to 0.3 microns, plus a permanent CarbonCapture motor filter

Match the unit to your home's actual finished square footage rather than lot size. An oversized run of tubing on an undersized power unit is a more common cause of weak suction at the far end of the house than the power unit itself.
