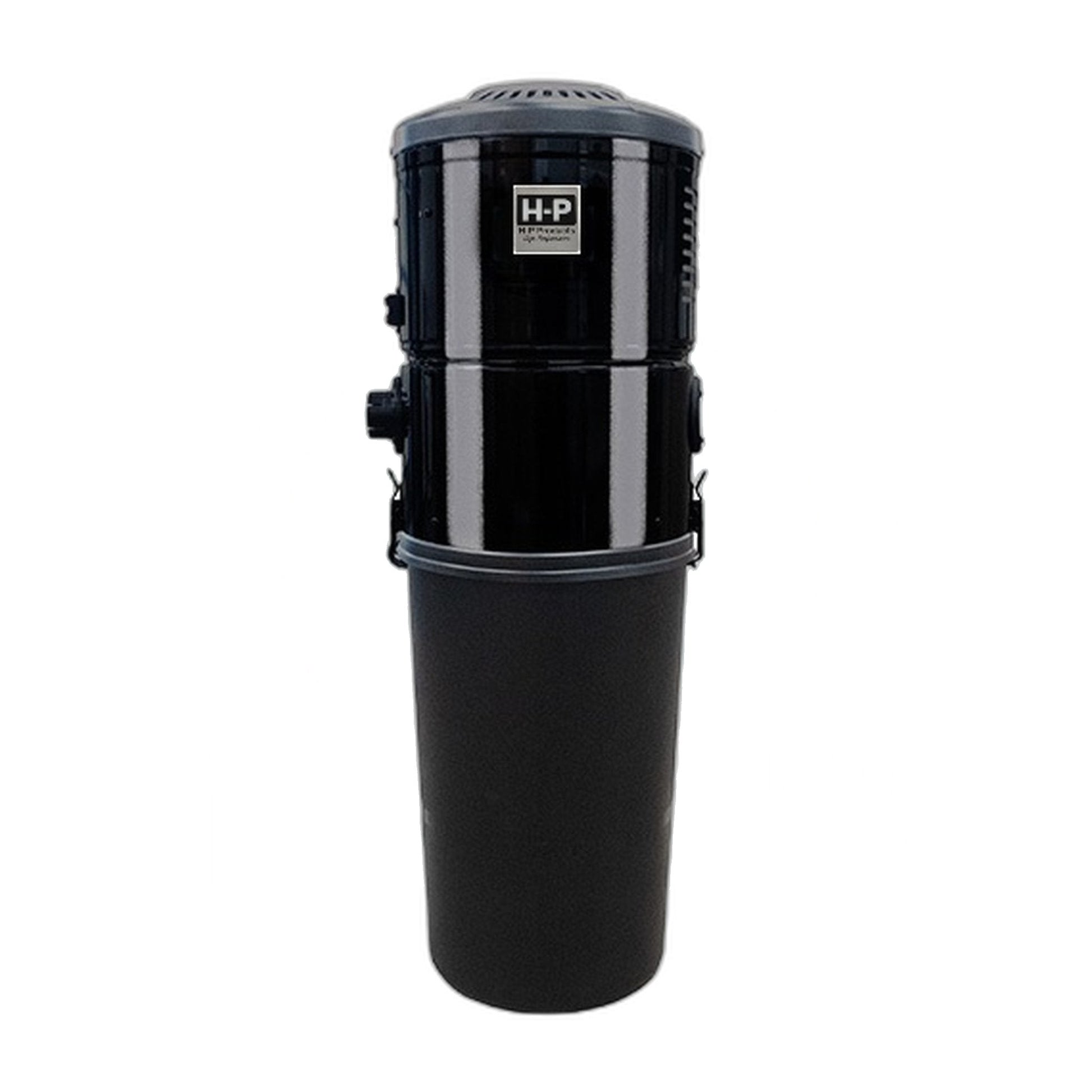

Turbocat DBMAX10 3-Stage Bagged Central Vacuum Unit, 22,000 Sq Ft
Turbocat DBMAX10 3-Stage Bagged Central Vacuum Unit, 22,000 Sq Ft
SKU:DBMAX10
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer FREE shipping on orders of $100 or more within the continental United States.
Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.
Returns & Exchanges
Returns & Exchanges
We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.
To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Turbocat DBMAX10 3-Stage Ba...
$1,277.99
Product details
The DBMAX10 sits at the top of Turbocat's bagged lineup, rated for coverage up to 22,000 square feet and built with two 5.7-inch 3-stage motors working together. The extra motor stages are what let a unit this size hold usable suction across a large home's worth of tubing rather than losing most of it to the length of the run.
Multi-stage motors work by passing air through more than one fan stage in series, each stage adding to the pressure the previous one built rather than starting from zero, the standard way manufacturers scale suction up for larger installations instead of just fitting a bigger single-stage motor. Bagged filtration is unchanged from the rest of the line: incoming debris collects in a disposable bag, so maintenance is a bag change rather than cleaning a bin.
A dual-motor unit like this one runs on 240-volt service at up to 14 amps, so confirm the mechanical room has the correct dedicated circuit before installation rather than assuming any existing central vacuum outlet will do. This is a large-installation unit by design, and the electrical planning around it should match that scale.
- Part: Turbocat DBMAX10
- Performance: 1,163 max air watts, 220 CFM, 154-inch sealed vacuum
- Electrical: 240V, 14 max amps
- Coverage: homes up to 22,000 sq ft, per manufacturer rating
- Motor configuration: dual 5.7-inch 3-stage motors
- Filtration: 6-gallon disposable bag with permanent CarbonCapture motor filter
A unit rated for 22,000 square feet is intended for large single homes with long branch runs or multi-unit installations, not a typical single-family footprint. Confirm your project's actual coverage need against this rating before ordering.
