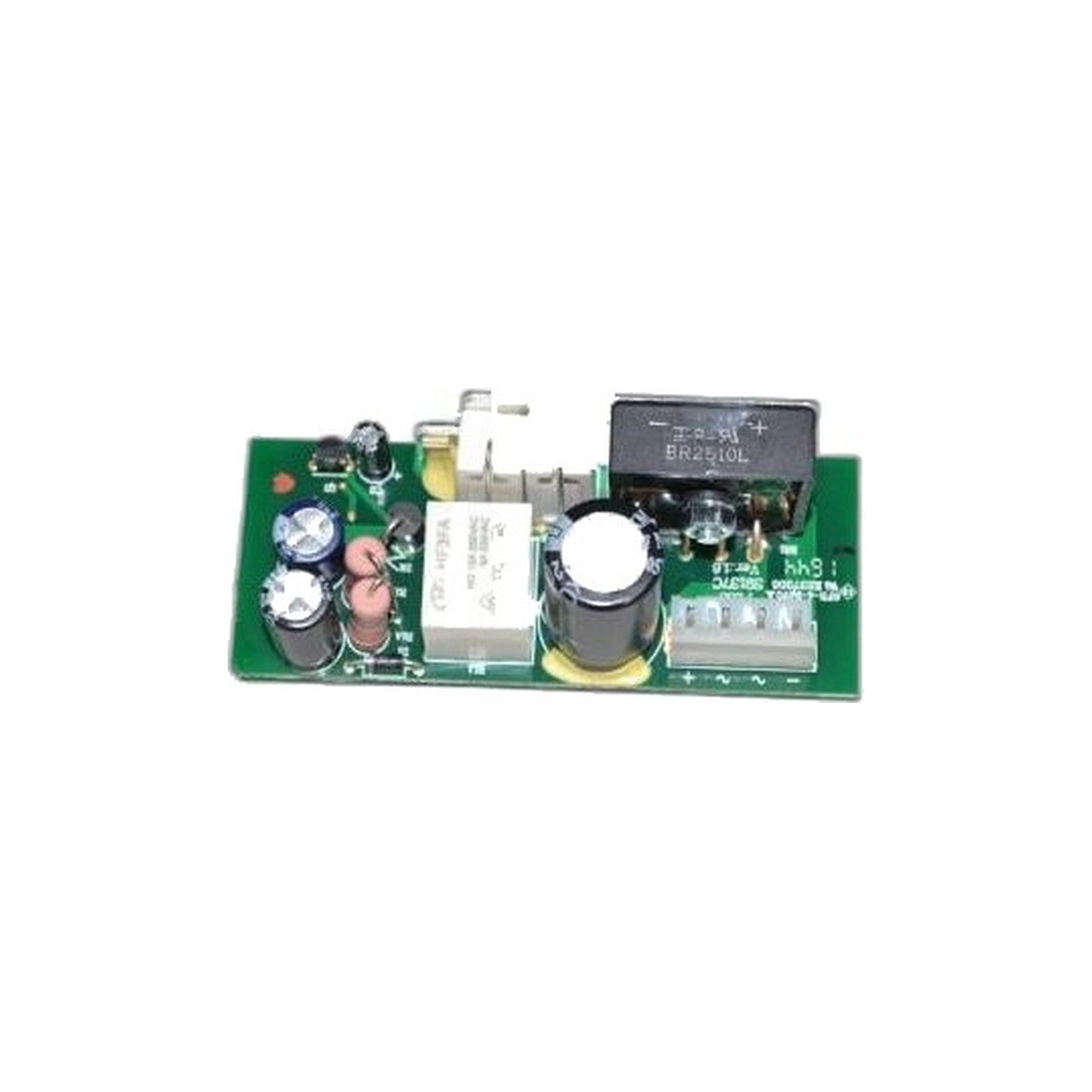

Bissell Foot Motor Circuit Board - 86T3
Bissell Foot Motor Circuit Board - 86T3
SKU:2037434
30 in stock
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer FREE shipping on orders of $100 or more within the continental United States.
Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.
Returns & Exchanges
Returns & Exchanges
We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.
To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Bissell Foot Motor Circuit ...
$21.99
Product details
The foot motor on a Big Green is switched and controlled by its own small board, and 2037434 is the replacement. It fits the 86T3 and 40M1 Big Green Clean Machines, the 10N2 commercial extractor and the BG10.
Symptoms sit squarely on the brush side of the machine. Suction and spray behave normally while the brush refuses to start, cuts out part way through a job, or only comes on when the handle happens to be at a certain angle. If the foot motor itself is sound and the belt is intact, this board is next in line.
Work with the machine unplugged, and note which lead goes where before anything comes off. Boards this size have their connectors close enough together that a swap is easy to make and very hard to spot afterwards.
