SEBO Female Contact Holder ...
$12.00
Product details

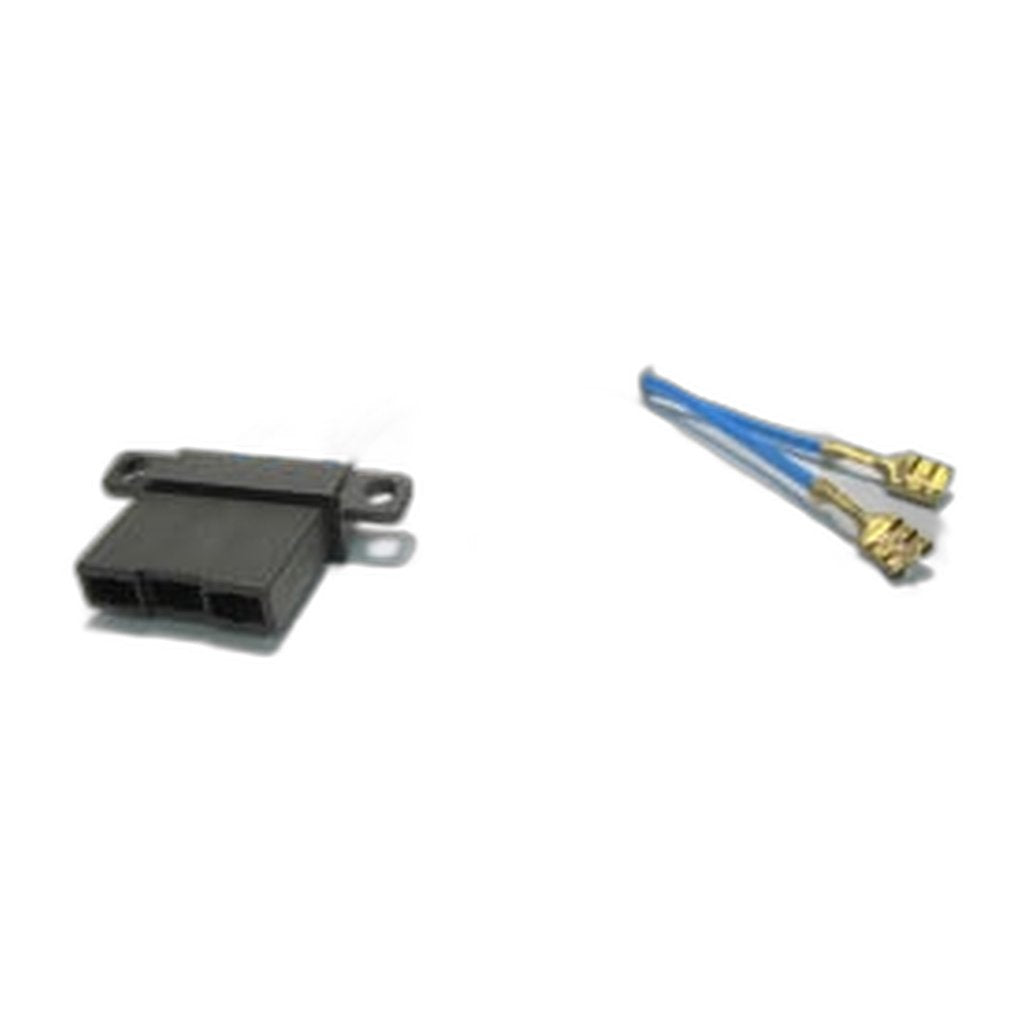

Moulded insulation with pockets sized so the female terminals inside a SEBO 370 Comfort or Electronic 370 sit square and stay apart. Part 1836UL is that holder.
Scorch marks around a terminal, or a connector that feels slack when it is pushed home, mean the holder has lost its grip. Contacts that can move begin to arc, arcing burns and pits the metal, and pitted contacts run hotter still — the failure feeds itself, and the longer it continues the more of the surrounding assembly it takes with it. A fresh holder re-establishes the spacing and the retention the connection was designed around, which is the only way to break that cycle properly.
It is a small insulating part with a safety function, so it is not a component to improvise around with tape or adhesive.
- Function: insulating holder for the female contacts
- Fits: SEBO 370 Comfort and Electronic 370
- Keeps: terminals aligned, spaced and retained
- Part number: 1836UL
- Related parts: internal cable 1833UL and cable connection cover 1812HG for the same machines
A burnt or acrid smell around the connection area is the symptom that should stop everything until the joint has been looked at, and a holder that has discoloured with heat should not go back in whatever its condition otherwise. Anyone searching for a SEBO 370 terminal holder, a contact block or an Electronic 370 connector insulator is looking at part 1836UL.
Genuine SEBO through our authorized dealership, usually moving in 2–5 business days. Disconnect the machine from the mains first, then examine the terminals for pitting and discolouration while they are out — a holder that failed because of arcing has almost certainly left its mark on the contacts, and renewing the insulation while leaving burnt metal in place solves only half the problem. Seat each terminal fully until it latches in its pocket.
