SEBO 370 COMFORT schematics and parts
Archived SEBO schematic for an older model. Use the original drawing and linked parts list to identify a replacement. Unlinked part numbers need confirmation.

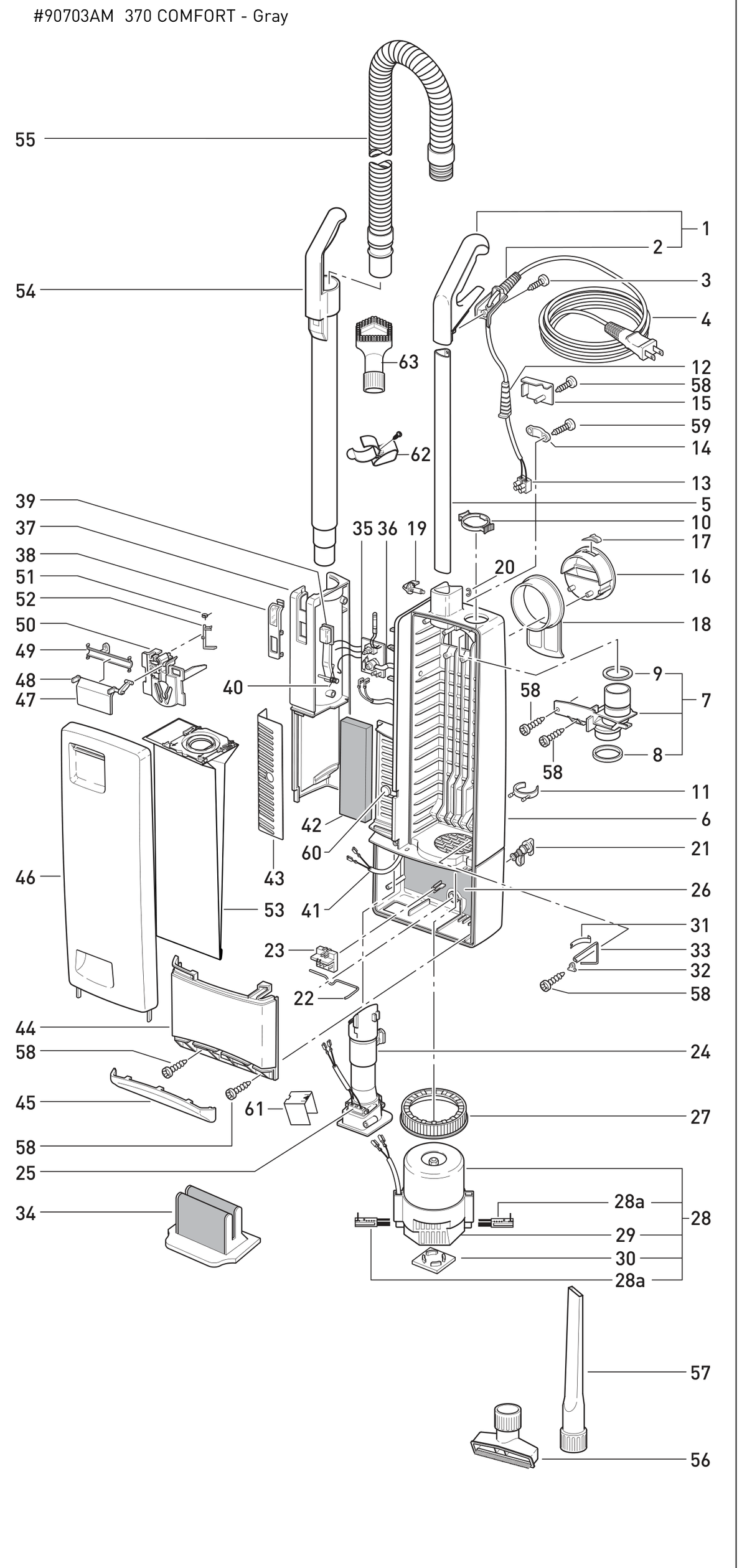

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO 370 COMFORT parts on this page (97)
- SEBO Pile Adjustment Wheel Axle for the 370 COMFORT — SKU 20126ER
- SEBO Right-Hand Bearing Block for the 370 COMFORT — SKU 20117ER
- SEBO Toothed Brush Belt 333 3M HTDII-6 for FELIX, DART, ET-1/ET-2 and 370 COMFORT — SKU 2923
- SEBO Front Bottom Plate for the 370 Comfort, Light Gray — SKU 20204ER
- SEBO Rear Bottom Plate with Screws for the 370 COMFORT - Light Gray — SKU 20107ER
- SEBO Bumper for the 370 COMFORT - Light Gray — SKU 20109ER
- SEBO On/Off Switch Button for 370 Comfort and Electronic 370 — Gray Black — SKU 1830GS
- SEBO Pile Adjustment Knob in Light Gray for the 370 Comfort — SKU 20128ER
- SEBO Release Button for the Exhaust Filter Cover - 370 Series, Light Gray — SKU 1884HG
- SEBO Brush Roller Release Button for the 370 COMFORT - Light Gray — SKU 20120ER
- SEBO Cord Grommet for ESSENTIAL G and 370 Series — Light Gray, Single — SKU 5359HG
- SEBO Power Supply Cord for the 370 Series - Dark Gray — SKU 1954DG
- SEBO Suction Neck Wiring for the 370 COMFORT Upright — SKU 0895AM
- SEBO Internal Cable Through Bag Housing for 370 Comfort and Electronic 370 — SKU 1833UL
- SEBO Female Contact Holder for 370 Comfort and Electronic 370 — SKU 1836UL
- SEBO Terminal Block for the 370 COMFORT and ELECTRONIC 370 — SKU 1265UL
- SEBO Complete Bag Holder for Essential G4, G5, 370 Comfort and Electronic 370 — SKU 1847
- SEBO Dust Bag Housing with Internal Cable for 370 Comfort and Electronic 370 — Light Gray — SKU 1831HG
- SEBO Dust Bag Housing Bumper for 370 Comfort and Electronic 370 — Light Gray — SKU 1804HG
- SEBO Cord Storage Cable Hook for 370 Comfort and Electronic 370 — Light Gray — SKU 1813HG
- SEBO Carrying Handle for 370 Comfort and Electronic 370 — Light Gray — SKU 1814HG
- SEBO Complete Front Cover for 370 Comfort and Electronic 370 — Light Gray — SKU 1846HG
- SEBO Bag Housing Locking Rod for 370 Comfort and Electronic 370 — SKU 1811
- SEBO Power Head Cover in Gray Black for the 370 Comfort — SKU 20226GSSE
- SEBO Retaining Ring, Single, for AUTOMATIC X, ESSENTIAL G and 300/350/370 Series — Gray Black — SKU 5424GS1
- SEBO Attachment Clip for Essential G, 370 and 300/350 Bag Housing — Light Gray — SKU 1823HG
- SEBO Bag Holder Safety Catch for Essential G4, G5, 370 Comfort and Electronic 370 — SKU 1817
- SEBO Filter Safety Catch Rod for 370 Comfort and Electronic 370 — SKU 1824
- SEBO Handle Catch with Hardware for the 370 COMFORT and ELECTRONIC 370 — Dark Gray — SKU 0850DG
- SEBO Handle Catch for AUTOMATIC X4, X5 and 370 Series - Gray Black — SKU 1859GS
- SEBO Access Door Assembly with Axle and Return Spring for the 370 COMFORT — SKU 20124ER
- SEBO Cleaning Head Chassis with Wire Ties for the 370 Comfort, Light Gray — SKU 20200HG
- SEBO Cable Connection Cover for 370 Comfort and Electronic 370 — Light Gray — SKU 1812HG
- SEBO Wand Side Cover with Lens and On/Off Button for 370 COMFORT and ELECTRONIC 370 - Light Gray — SKU 1852HG
- SEBO Left-Hand Bearing Block Cover for the 370 COMFORT — SKU 20123ER
- SEBO Swivel Neck Cover for the 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 2602HG
- SEBO Brush Strip Cover for the 370 COMFORT - Light Gray — SKU 20118ER
- SEBO Exhaust Filter Cover for 370 Comfort and Electronic 370 — Light Gray — SKU 1802HG
- SEBO Suction Motor Protection Cover for 370 Comfort and Electronic 370 — SKU 1821UL
- SEBO Motor Cover for 370 COMFORT and ELECTRONIC 370 — SKU 1853SE
- SEBO Terminal Block Cover for the 370 COMFORT and ELECTRONIC 370 — SKU 1524
- SEBO Lens for Bag Indicator and Switch Cover - 370 Series, Light Gray — SKU 1869HG
- SEBO Orange Foot Pedal Assembly with Axle, Spring and Screw for the 370 Comfort — SKU 20230ER
- SEBO Handle Grip with Cover, Grommet and Screw for 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 1037EH
- SEBO Handle Tube for 370 Comfort and Electronic 370 — SKU 1848
- SEBO Handle Cover with Grommet and Screw for 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 1596HG
- SEBO Rear Axle Clamp — Single, for AUTOMATIC X, ESSENTIAL G, 300/350, 370 and ET-C — SKU 2014
- SEBO Power Cord Cable Clamp for FELIX, CE12 Softcase, 370 Series and Duo — SKU 1030UL
- SEBO Filter Safety Catch Clamp for AUTOMATIC X, ESSENTIAL G and 370 Series Uprights — SKU 1073
- SEBO Support Lever with Spring for the 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 2653HG
- SEBO Pile Adjustment Lever for the 370 Comfort — SKU 20127ER
- SEBO Connector Tube, Suction Neck to Wand, for 370 Comfort and Electronic 370 — Light Gray — SKU 1807HG
- SEBO Holder for Front Cover Release, 370 Comfort and Electronic 370 — Dark Gray — SKU 1819
- SEBO Valve Fitting, PCB to Bag Housing - 370 COMFORT and ELECTRONIC 370 — SKU 1860
- SEBO Thrust Member Cap for the 370 Comfort — SKU 20129ER
- SEBO Swivel Neck Bearings for the 370 Comfort — Pair — SKU 20136ER
- SEBO Thrust Member for the Pile Adjustment Knob — G Series, 300/350 and 370 COMFORT — SKU 2833
- SEBO Brush Roller with Pulley and Brush Strip for the 370 COMFORT — SKU 4098ER
- SEBO Microfilter Holder Leaf Spring for 370 COMFORT and ELECTRONIC 370 — SKU 1027
- SEBO Vacuum Motor Seal for FELIX, DART and 370 Series Uprights — SKU 1047
- SEBO Return Spring for the On/Off Switch Button - 370 COMFORT and ELECTRONIC 370 — SKU 1862
- SEBO Stop Spring for X Series, ESSENTIAL G Series and 370 Uprights — SKU 5146
- SEBO Support Lever Spring for the 370 COMFORT — SKU 2651
- SEBO Brush Roller Release Spring for the 370 COMFORT - Single — SKU 20121
- SEBO Pile Adjustment Spring for 370 COMFORT, ELECTRONIC 370 and CE12 Softcase — SKU 4019
- SEBO Safety Catch Spring for Automatic X, Essential G and 370 Series Uprights — SKU 5091
- SEBO Wire Tie for the 370 COMFORT — SKU 20115
- SEBO On-Board Stretch Hose for X Series, G Series, 370 Series and 300/350 Mechanical — Silver — SKU 5040SB
- SEBO 175 W Brush Motor with Pulley for ET-1 and 370 COMFORT Power Heads — SKU 2973ER
- SEBO Carbon Brush Set for AUTOMATIC X, ESSENTIAL G, 370 and 300/350 Suction Motors — SKU 05117S
- SEBO Carbon Brush Set for ET-1, ET-2 and DISCO Power Head Motors — SKU 05141S
- SEBO Rubber Motor Mount for the 1843/2 Suction Motor — 370 Comfort and Electronic 370 — SKU 1822
- SEBO Motor Pulley for ET-1, ET-2 and 370 COMFORT Power Heads — SKU 2319
- SEBO 1000W Suction Motor for 370 Comfort and Electronic 370 — SKU 1843/2
- SEBO Suction Motor Sound Insulation for 370 COMFORT and ELECTRONIC 370 — SKU 1851
- SEBO Circuit Board with Switch for 370 COMFORT and ELECTRONIC 370 — SKU 1935ER
- SEBO Printed Circuit Board for the 370 Comfort — SKU 20162ER
- SEBO Brush Pulley for the 370 COMFORT — SKU 2919ER
- SEBO Internal Cover Seal for AUTOMATIC X, ESSENTIAL G1/G2 and 370 Series — SKU 5842
- SEBO Filter Tube Seal for AUTOMATIC X, ESSENTIAL G1/G2, 300/350 and 370 Series — SKU 5289
- SEBO Cover Release Seal for 370 Comfort and Electronic 370 — SKU 6040
- SEBO Micro Safety Switch with PCB Wiring for the 370 COMFORT — SKU 0897ER
- SEBO Right-Hand Swivel Neck Support for the 370 Comfort — SKU 20217ER
- SEBO Left-Hand Swivel Neck Support for the 370 Comfort — SKU 20218ER
- SEBO Suction Neck Assembly with Wiring, Cover and Bearings for the 370 Comfort — SKU 20232AM
- SEBO On-Board Cleaning Wand for AUTOMATIC X Series and 370 Uprights — Gray Black — SKU 5045GS
- SEBO Pile Adjustment Wheel for the 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 2608HG
- SEBO Power Head Wheel Assembly for ET-1 and 370 COMFORT — Light Gray — SKU 2306HG
- Genuine SEBO 5093AM X, G, C & Mechanical Vacuum Bags – 8 Pack — SKU 5093AM
- SEBO Pre-Motor Microfilter for 370 Series — SKU 1875
- SEBO Exhaust Filter for 370 Series — SKU 1878
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Upholstery Nozzle for AUTOMATIC X and FELIX — Gray/Black — SKU 1491GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO 14 in. Brush Roller Strip for 350 MECHANICAL, 370 Series and ET-C Power Heads — SKU 2046
- SEBO Dusting Brush Mounting Clip with Screw for 300, 350 and 370 Uprights — Gray Black — SKU 1081GS
- SEBO Handle Catch C Clip (4, DIN 6799) for AUTOMATIC X4, X5, X7, X8 and 370 Series — Single — SKU 0161
