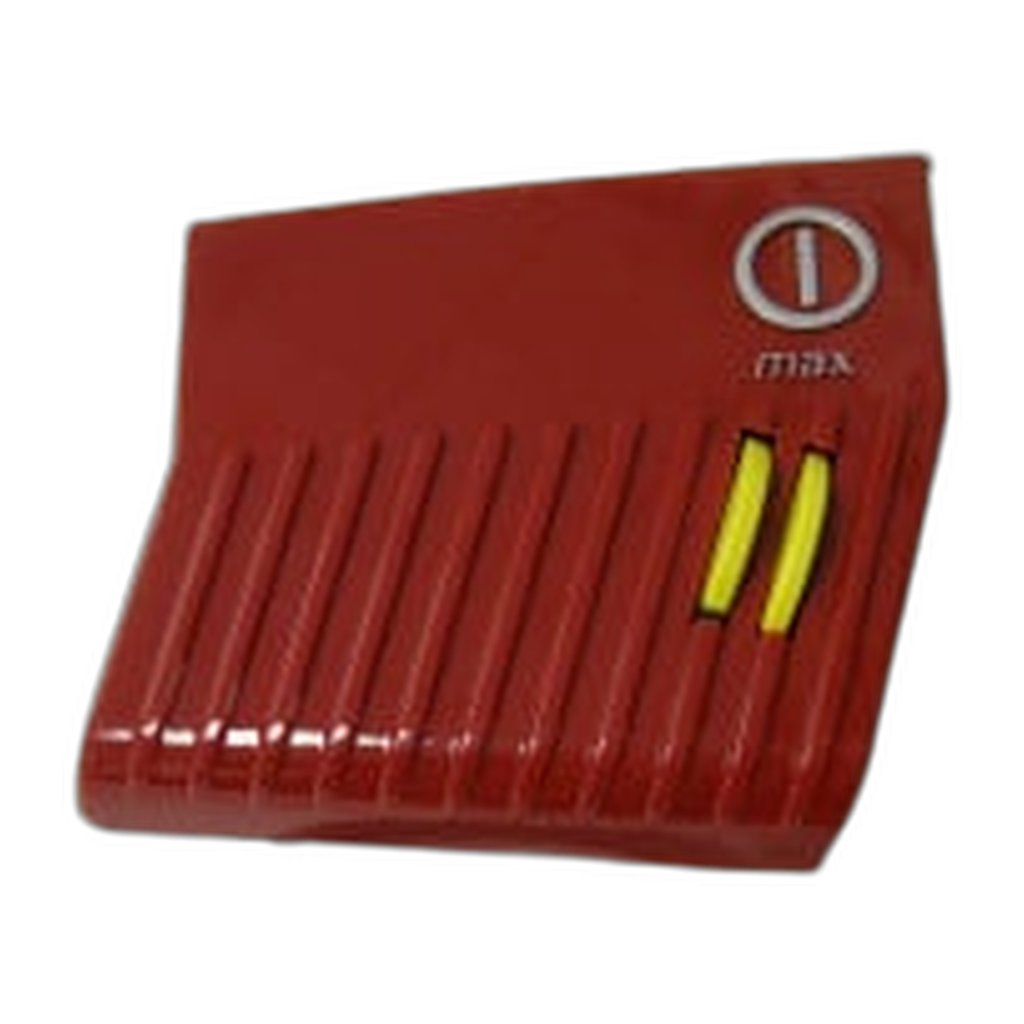

SEBO Variable-Speed On/Off Pedal for C2.1 — Red, Includes 6143 Spring

Red-finished and supplied complete with spring 6143, pedal 6309DR is the foot control that starts, stops and dials the suction on a SEBO C2.1. The assembly serves the C1.1 and C2.1 platform, so one pedal body covers both machines in this part of the C Series.

There are two pedals on the top of these canisters and it pays to know which one is on order. This is the power pedal: it switches the motor and sets the suction level. The other retracts the cord and carries its own number — 6006DR in red, with spring 6023 behind it. Spring 6143 is the return element for this pedal and comes in the box rather than being bought separately. Further inside, the electronic controller with switch for these machines is 6295ER; a pedal that feels firm and clicks properly but produces no change in motor speed points at that side of the circuit rather than at the plastic.

Pedals take a beating. The pivot wears, the spring loses its snap, and the control ends up sluggish or refuses to hold a speed setting. Because the spring is included, a single order renews the whole mechanism instead of half of it.

• SKU: 6309DR
• Colour: red
• In the box: variable-speed on/off pedal plus SEBO spring 6143
• Fitment: C1.1 and C2.1
• Controls: power on/off and suction level
• Matching red trim: top casing 6127DR, attachment cover 6383AM, cable rewind pedal 6006DR
• Same pedal in teal: 6309TK

Genuine SEBO hardware from an authorized dealer, shipping in 2–5 business days. Note the finish as well as the model when you order: the two colours share a shape, and only the moulding colour tells them apart once they are out of the packaging.
