SEBO AIRBELT C1.1 / C2.1 schematics and parts
Archived SEBO schematic for an older model. Use the original drawing and linked parts list to identify a replacement. Unlinked part numbers need confirmation.

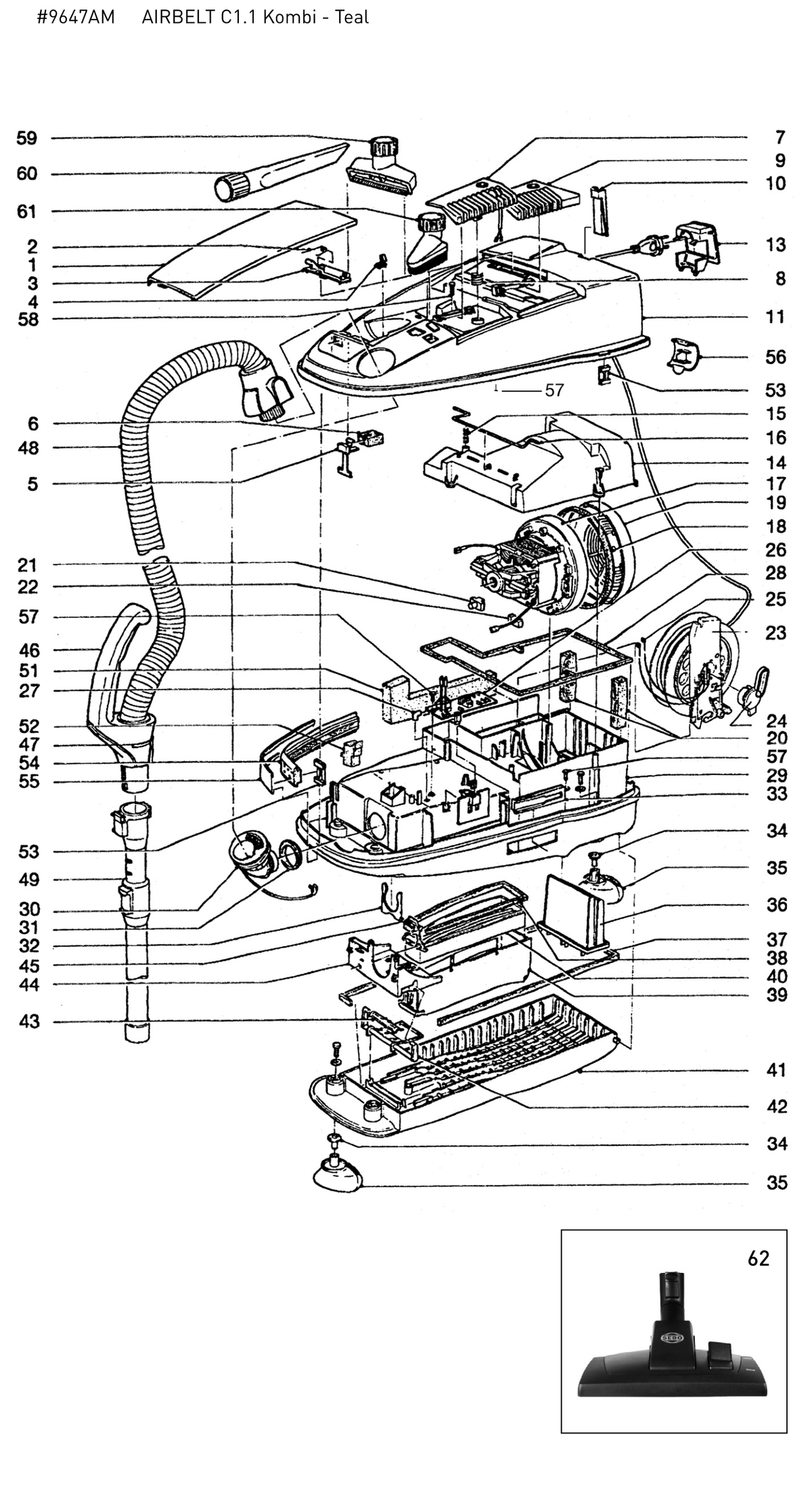

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AIRBELT C1.1 / C2.1 parts on this page (62)
- SEBO Foam Bumper for C1.1, C2.1 and C3.1 Canisters — SKU 6046UL
- SEBO Variable-Speed On/Off Pedal for C2.1 — Red, Includes 6143 Spring — SKU 6309DR
- SEBO Variable-Speed On/Off Pedal for C1.1 and C2.1 — Teal, Includes 6143 Spring — SKU 6309TK
- SEBO Release Button in Dark Gray for C1.1, C2.1 and C3.1 — SKU 6083DG
- SEBO Cover Release with Seal for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6036DG
- SEBO Cord Reel to Circuit Board Internal Cable for the C Series — SKU 6291
- SEBO Bottom Casing for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6197DG
- SEBO Rear Parking Holder for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6008DG
- SEBO Side Parking Holder for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6009DG
- SEBO AIRBELT Clip in Gray Black for K and C Series — SKU 6048GS
- SEBO Attachment Clips for C1.1, C2.1 and C3.1 — Set of 3 — SKU 6117ER
- SEBO Casing Clip for AIRBELT K and C Series — Single — SKU 6086HG
- SEBO Attachment Cover for C1.1 — Teal Green — SKU 6382AM
- SEBO Motor and Cord Reel Cover Panel for the C Series — SKU 6192
- SEBO Motor Cover for C Series Canisters — SKU 6196
- SEBO Bearing Cover for the Cover Release — C1.1, C2.1 and C3.1 — SKU 6039
- SEBO Handle Grip with Retaining Ring for AIRBELT D1, E1, E2, K2, C1.1 and C2.1 — Gray Black — SKU 6300GS
- SEBO Bearing Block and Hinge for C Series Canisters — SKU 6168DG
- SEBO Plug Surround for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6007DG
- SEBO Elbow Hose Connector for C1.1, C2.1 and C3.1 — SKU 6088
- SEBO Air Adapter for C Series Canisters — SKU 6293
- SEBO Pin with Screw and Washer for C1.1, C2.1 and C3.1 Canisters — SKU 6027ER
- SEBO Cable Rewind Pedal Spring for C1.1, C2.1 and C3.1 Canisters — SKU 6023
- SEBO Safety Catch Spring for Automatic X, Essential G and 370 Series Uprights — SKU 5091
- SEBO Spring Lock for AIRBELT K and C Series Canisters — SKU 6042WS
- SEBO On/Off Pedal Return Spring for C Series Canisters — SKU 6143
- SEBO Attachment Cover Spring for C1.1, C2.1 and C3.1 — SKU 6045
- SEBO Bag Holder with Safety Catch for C1.1, C2.1 and C3.1 — SKU 6094
- SEBO Microfilter Holder for C1.1, C2.1 and C3.1 Canisters — Dark Gray — SKU 6003DG
- SEBO 7 ft. Hose Assembly with Handle, Coupling and Retaining Ring for C1.1 and C2.1 (Gray Black) — SKU 6355AM
- SEBO Carbon Brush Set for the 6165 Suction Motor — C1.1, C2.1 and C3.1 — SKU 05101S
- SEBO Front Motor Mounting for C Series Canisters — SKU 6173
- SEBO Rubber Motor Mounts for C Series Canisters — 2 Pack — SKU 6188ER
- SEBO Rear Motor Mounting for C Series Canisters — SKU 6189
- SEBO Suction Motor for C Series Canisters, Supplied with Carbon Brush Set — SKU 6165
- SEBO Electronic Controller and Switch Assembly for C1.1 / C2.1 Canisters — SKU 6295ER
- SEBO Rod for C1.1, C2.1 and C3.1 Canisters — SKU 6022
- SEBO Bag Cover Seal for C Series Canisters — SKU 6187
- SEBO Suction Neck Seal for AIRBELT K and C Series Canisters — SKU 6014
- SEBO Microfilter Seal for C1.1, C2.1 and C3.1 Canisters — SKU 6034
- SEBO Rear Foam Seal for C1.1, C2.1 and C3.1 — SKU 6120/3
- SEBO Foam Seal for C Series Release Button — SKU 6128
- SEBO Casing Seal for C Series Motor and Cord Reel Cover — SKU 6186
- SEBO Front Foam Seal for C Series Canisters — SKU 6213
- SEBO Motor Cover Seal for C1.1, C2.1 and C3.1 Canisters — SKU 6306
- SEBO Suction Neck for C1.1 and C2.1 Power Heads — SKU 6319UL
- SEBO Stainless Steel Telescopic Wand for AIRBELT D1, E1, E2, K2, C1.1 and C2.1 — SKU 6237ER
- SEBO Castor in Dark Gray for C1.1, C2.1 and C3.1 — SKU 6095DG
- SEBO Pre-Motor Microfilter for the AIRBELT K and AIRBELT C Canister Ranges — SKU 6191AM
- SEBO Exhaust Filter for AIRBELT C1.1, C2.1 and C3.1 Canisters — SKU 6033AM
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Upholstery Nozzle for AUTOMATIC X and FELIX — Gray/Black — SKU 1491GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO Combination Floor Nozzle for AIRBELT and C Series Canisters (Gray/Black) — SKU 8351GS
- SEBO AIRBELT Textile with Clips in Solid Gray Black — D, K and C Series — SKU 6047AM/01
- SEBO TT-C Turbo Brush Pro for D4, E and K Series Canisters, Grey and Black — SKU 8365GS
- SEBO Cable Rewind Pedal for C1.1, C2.1 and C3.1 Canisters — Red — SKU 6006DR
- SEBO Cable Rewind Pedal for C1.1 and C2.1 Canisters — Teal — SKU 6006TK
- SEBO Top Casing in Red for C2.1 — SKU 6127DR
- SEBO Top Casing in Teal for C1.1 and C2.1 — SKU 6127TK
- SEBO Attachment Cover for C2.1 — Teal Green — SKU 6380AM
- SEBO Attachment Cover for C2.1 — Red — SKU 6383AM
