Titan PC Board - TCS4792, T...
$58.99
Product details

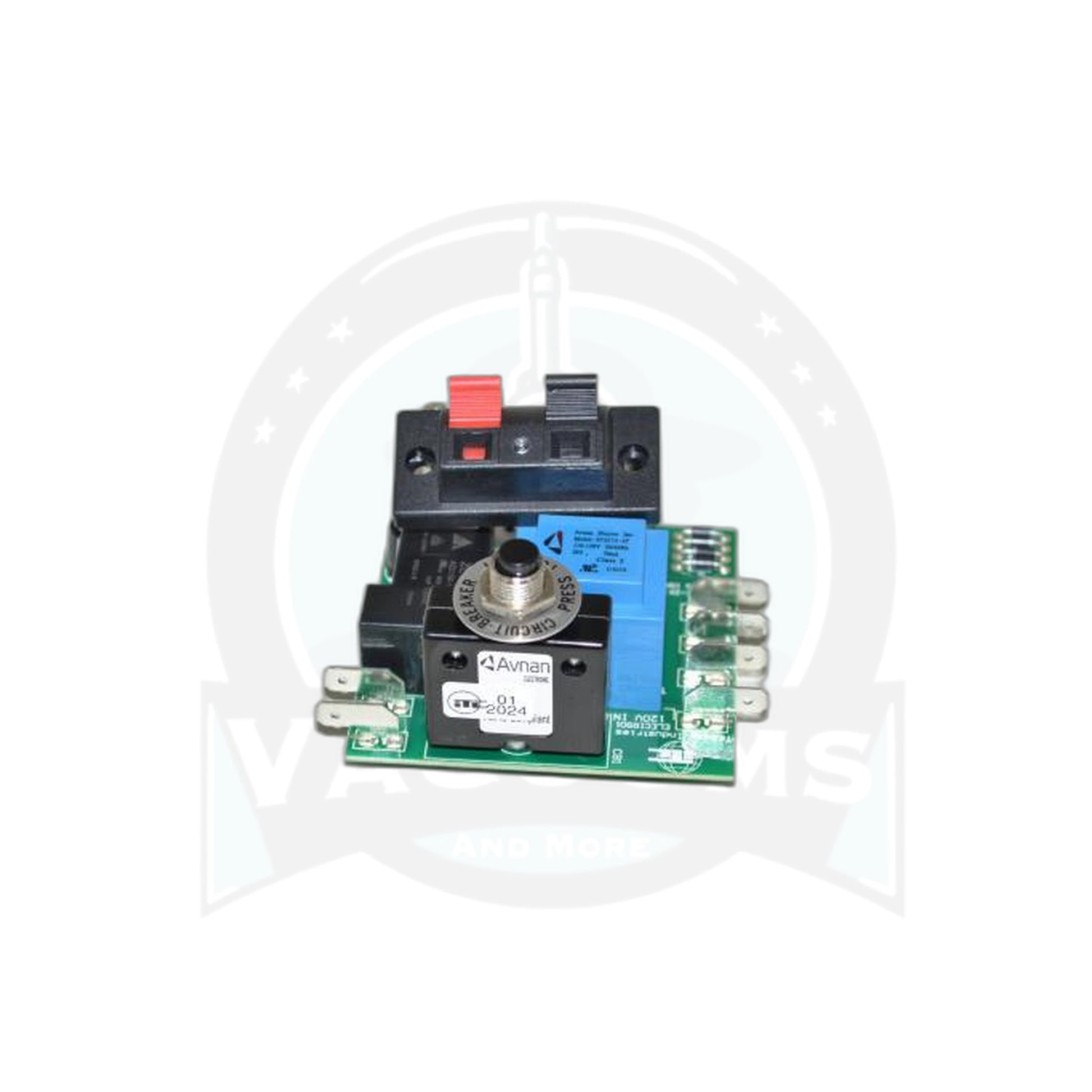

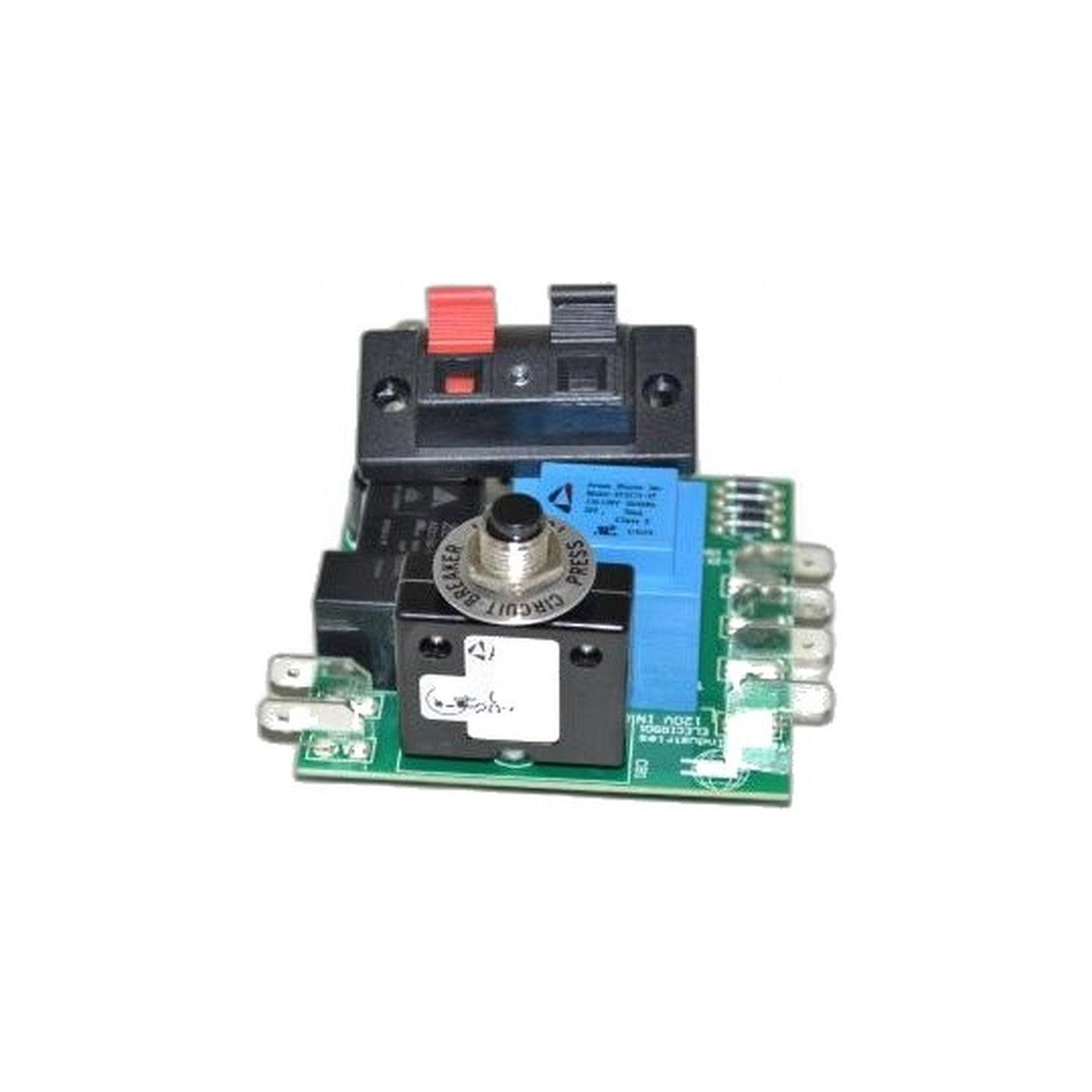

Part ELECIR901V replaces the circuit board inside a Titan TCS4792, TCS7702, or TCS9902 central vacuum power unit. This single board runs the machine's entire electronic control, and when it degrades the unit can refuse to power on, drop out mid-cleaning, or throw an error condition a healthy unit never shows.
Boards fail gradually rather than all at once, and years of routine on-off cycling is normally what wears one out. Replacing it restores a dead or erratic unit without the expense of a new power unit, and it is worth ruling out before assuming the motor itself is bad, since a failed board and a failed motor can present identically to the user.
The same board is also listed for several other central vacuum lines that use the same control electronics. The Mvac range takes it across the M43, M45, M47, and M50, plus the M65, M80, M95, and the Tytan. Solution's Central Vac lineup uses it on the 600, 600T, and 700. CycloVac carries it broadest of all, spanning the H215, H515, H615, H625, H715, H725, and H2015, the GS115, GS125, GS215, GS615, GS715, and GS2015, the E215, E615, E715, and E2015, plus HD800-series units, the Hybrid Builder, and Diplomat.
Match your unit's model plate against the list here before ordering, since this board is listed across several brands and model families that outwardly look nothing alike. Vacuums and More carries authorized-dealer status for Titan.
- Part: ELECIR901V, Titan PC board
- Fits: Titan TCS4792/TCS7702/TCS9902, CycloVac E/GS/H-series and HD800 series, Hybrid Builder, Diplomat, Solution 600/600T/700, Mvac M43, M45, M47, M50, M65, M80, M95, Tytan
- Symptoms it addresses: will not power on, cuts out mid-cleaning, error conditions
